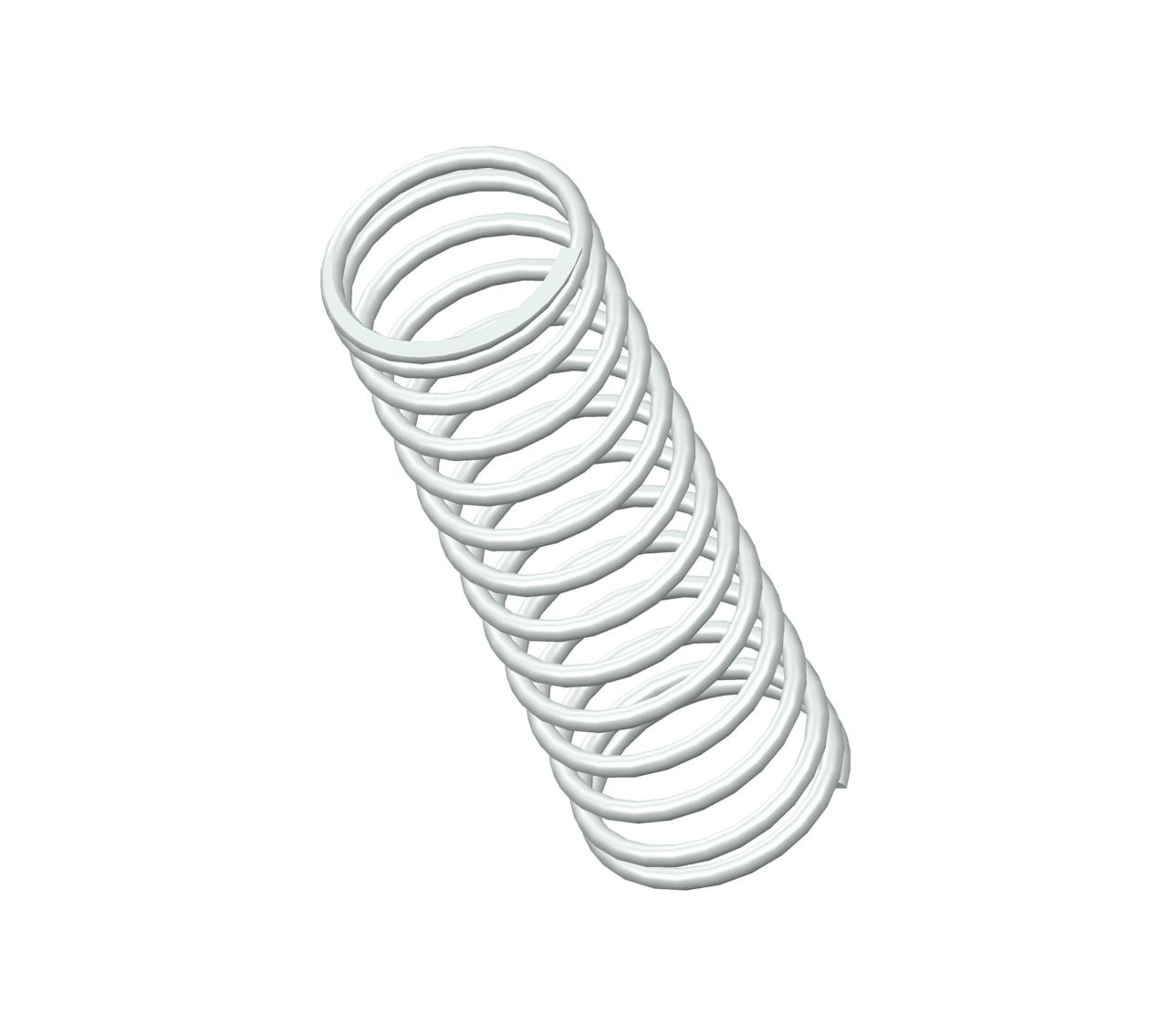

S-1612CS - 2.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 14 coils and closed ends. This spring features an O.D. of 0.812", and an I.D. of 0.682".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1612 |
| Ends | Closed |
| Finish | None |
| Free Length | 2.5 in |
| Inside Diameter | 0.682 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.812 in |
| Part Type | Standard |
| Rate | 4.6 lbs/in |
| SKU | S-1612CS |
| Solid Length | 0.98 in |
| Suggested Max Deflection | 1.5 in |
| Suggested Max Load | 6.9 lbf |
| Total Coils | 14 |
| Wire Diameter | 0.065 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1612 |
| Ends | Closed |
| Finish | None |
| Free Length | 63.5 mm |
| Inside Diameter | 17.32 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 20.62 mm |
| Part Type | Standard |
| Rate | 0.81 N/mm |
| SKU | S-1612CS |
| Solid Length | 24.89 mm |
| Suggested Max Deflection | 38.1 mm |
| Suggested Max Load | 30.69 N |
| Total Coils | 14 |
| Wire Diameter | 1.65 mm |
The compression spring S-1612CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1612 compression spring design exhibits exceptional tensile strength and resilience.
The S-1612 design is manufactured with a free length of 2.5", with an outer diameter of 0.812", an inner diameter of 0.682", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.6 lbs/in.
The S-1612CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1612 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1612 design is manufactured with a free length of 2.5", with an outer diameter of 0.812", an inner diameter of 0.682", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.6 lbs/in.
The S-1612CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1612 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
