S-1604CS - 4.13" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

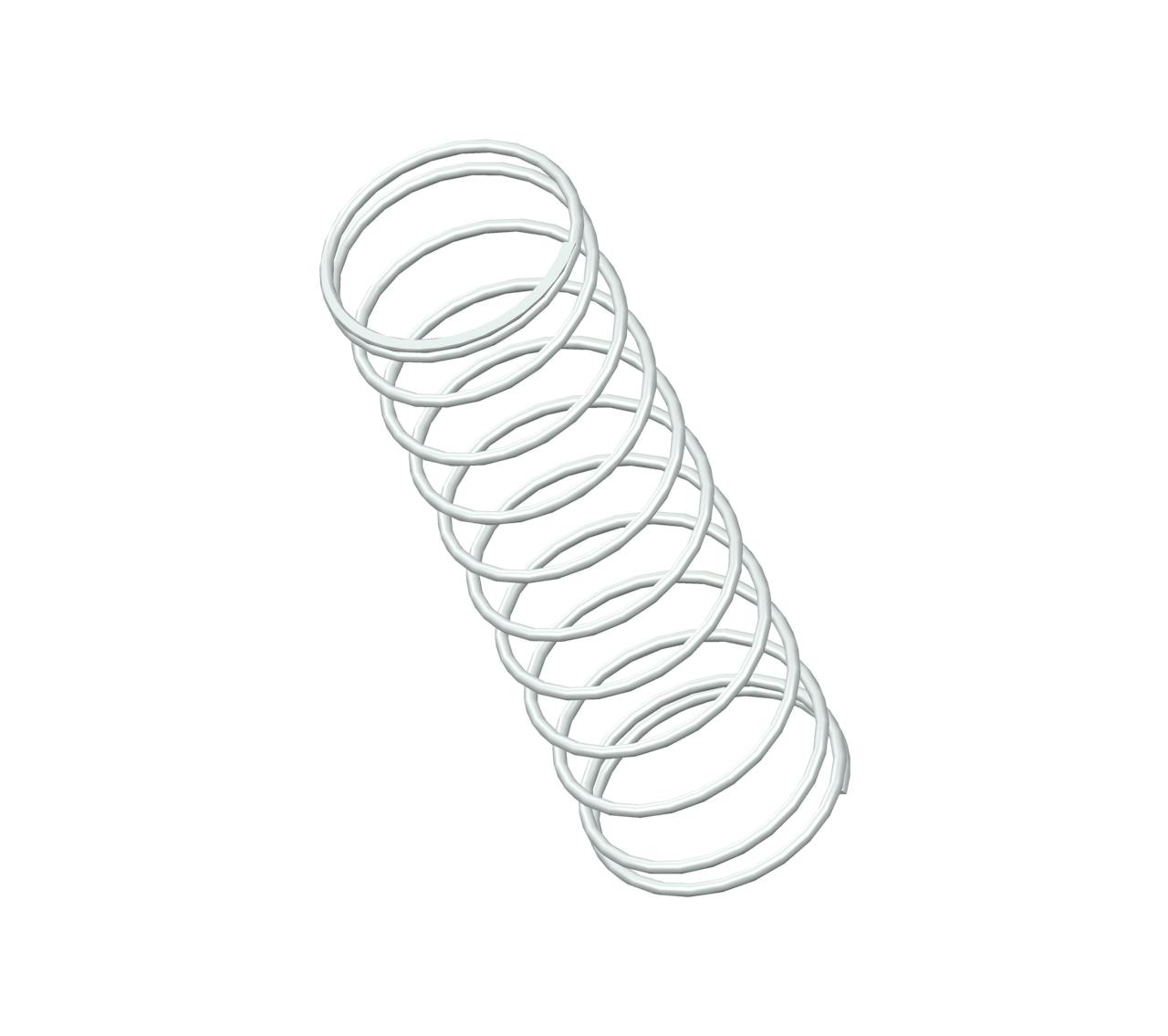

Compression spring manufactured from 302/304 stainless steel with 12 coils and closed & ground ends. This spring features an O.D. of 1.281", and an I.D. of 1.155".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1604
Ends Closed & Ground
Finish None
Free Length 4.13 in
Inside Diameter 1.155 in
Material 302/304 Stainless Steel
Outside Diameter 1.281 in
Part Type Standard
Rate 1.1 lbs/in
SKU S-1604CS
Solid Length 0.82 in
Suggested Max Deflection 3.406 in
Suggested Max Load 3.7 lbf
Total Coils 12
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-1604
Ends Closed & Ground
Finish None
Free Length 104.9 mm
Inside Diameter 29.34 mm
Material 302/304 Stainless Steel
Outside Diameter 32.54 mm
Part Type Standard
Rate 0.19 N/mm
SKU S-1604CS
Solid Length 20.83 mm
Suggested Max Deflection 86.51 mm
Suggested Max Load 16.46 N
Total Coils 12
Wire Diameter 1.59 mm
The compression spring S-1604CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1604 compression spring design exhibits exceptional tensile strength and resilience.

The S-1604 design is manufactured with a free length of 4.13", with an outer diameter of 1.281", an inner diameter of 1.155", and a total of 12 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.1 lbs/in.

The S-1604CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-1604 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
