S-159CS - 1.56" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

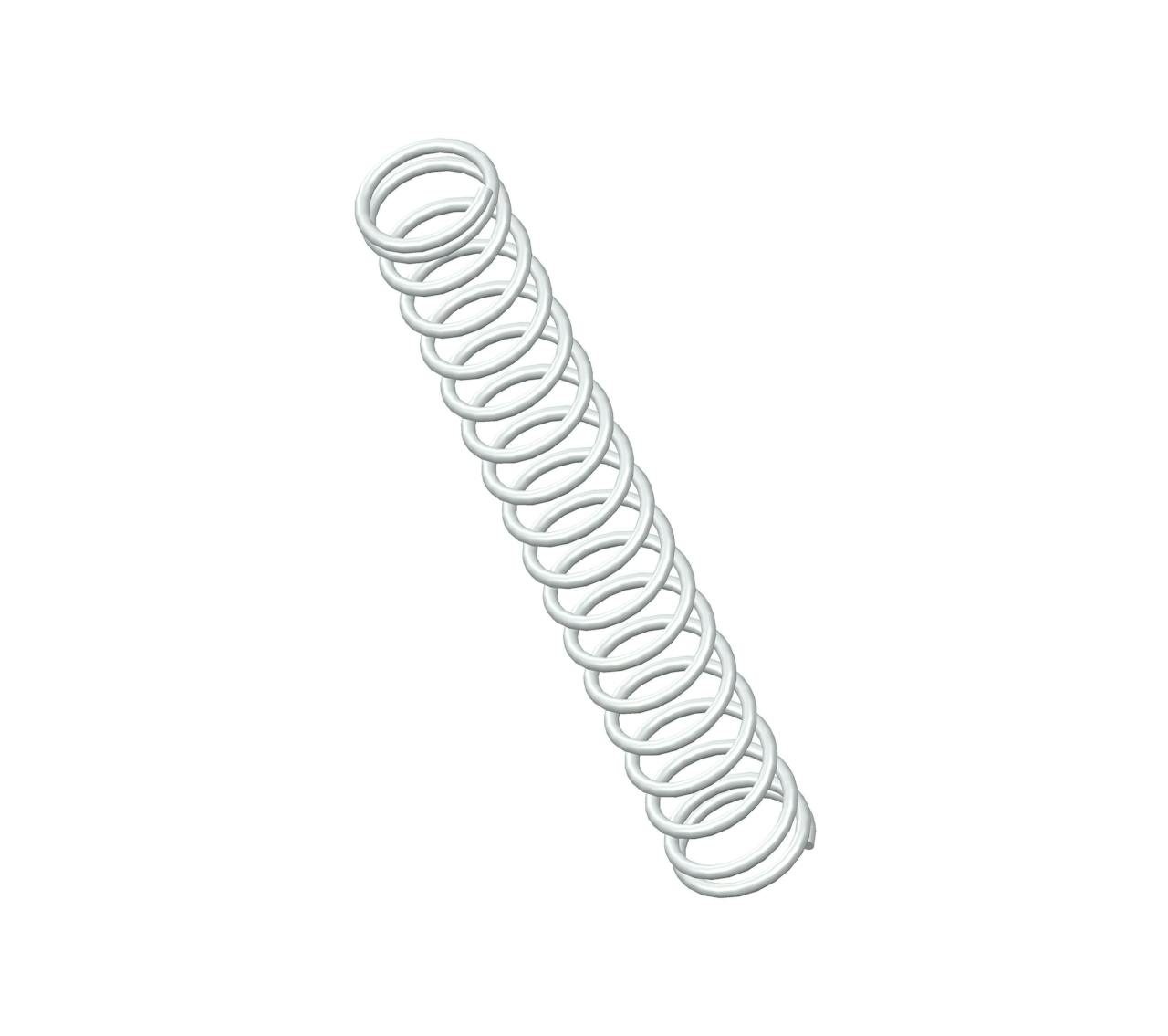

Compression spring manufactured from 302/304 stainless steel with 18 coils and closed ends. This spring features an O.D. of 0.219", and an I.D. of 0.175".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-159 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.56 in |
| Inside Diameter | 0.175 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.219 in |
| Part Type | Standard |
| Rate | 2.4 lbs/in |
| SKU | S-159CS |
| Solid Length | 0.42 in |
| Suggested Max Deflection | 0.8 in |
| Suggested Max Load | 1.9 lbf |
| Total Coils | 18 |
| Wire Diameter | 0.022 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-159 |
| Ends | Closed |
| Finish | None |
| Free Length | 39.62 mm |
| Inside Diameter | 4.45 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 5.56 mm |
| Part Type | Standard |
| Rate | 0.42 N/mm |
| SKU | S-159CS |
| Solid Length | 10.67 mm |
| Suggested Max Deflection | 20.32 mm |
| Suggested Max Load | 8.45 N |
| Total Coils | 18 |
| Wire Diameter | 0.56 mm |
The compression spring S-159CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-159 compression spring design exhibits exceptional tensile strength and resilience.
The S-159 design is manufactured with a free length of 1.56", with an outer diameter of 0.219", an inner diameter of 0.175", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.4 lbs/in.
The S-159CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-159 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-159 design is manufactured with a free length of 1.56", with an outer diameter of 0.219", an inner diameter of 0.175", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.4 lbs/in.
The S-159CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-159 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
