S-1590CS - 2.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

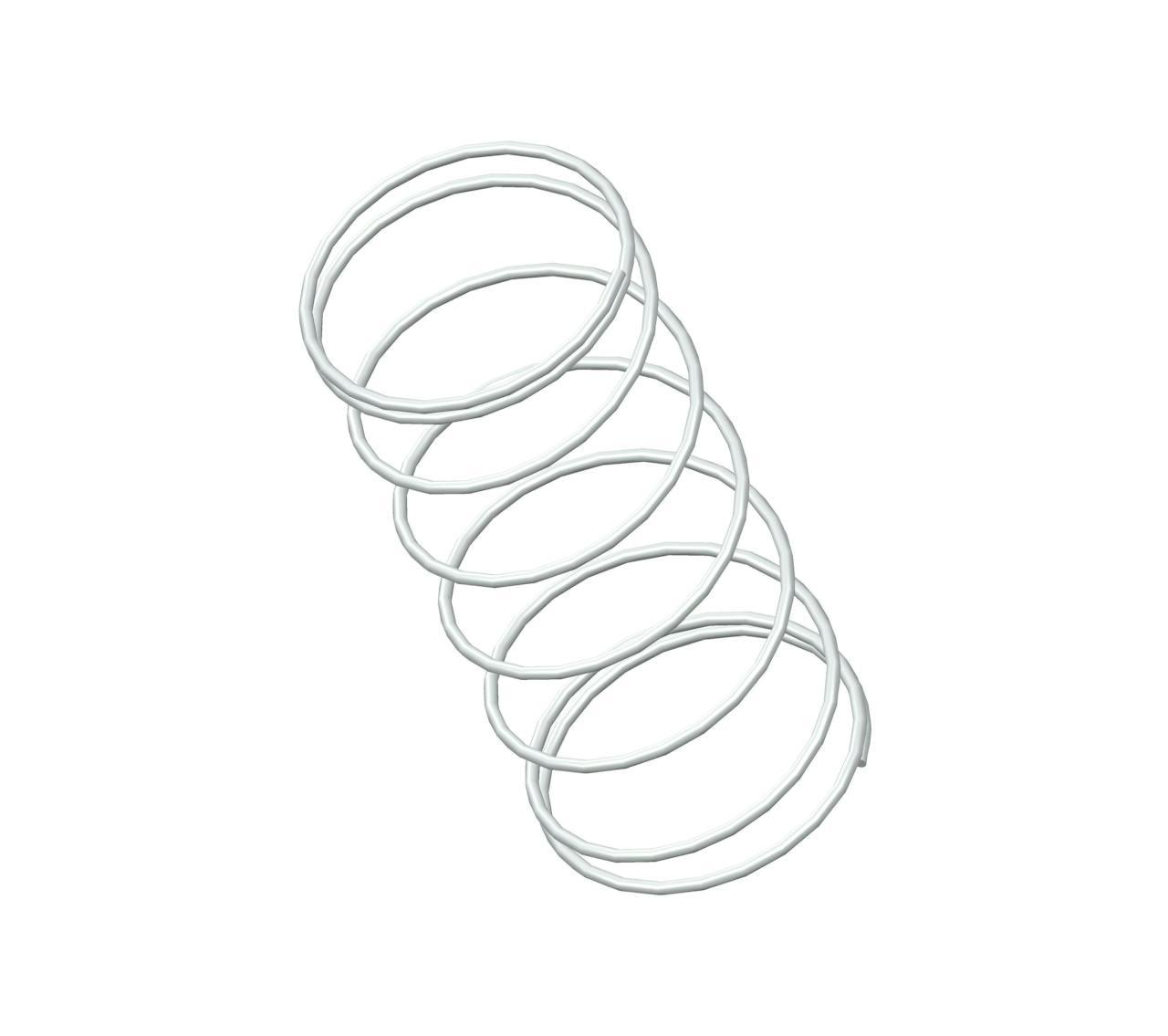

Compression spring manufactured from 302/304 stainless steel with 8 coils and closed ends. This spring features an O.D. of 0.984", and an I.D. of 0.906".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1590 |
| Ends | Closed |
| Finish | None |
| Free Length | 2.25 in |
| Inside Diameter | 0.906 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.984 in |
| Part Type | Standard |
| Rate | 0.58 lbs/in |
| SKU | S-1590CS |
| Solid Length | 0.35 in |
| Suggested Max Deflection | 1.9 in |
| Suggested Max Load | 1.1 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.039 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1590 |
| Ends | Closed |
| Finish | None |
| Free Length | 57.15 mm |
| Inside Diameter | 23.01 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 24.99 mm |
| Part Type | Standard |
| Rate | 0.1 N/mm |
| SKU | S-1590CS |
| Solid Length | 8.89 mm |
| Suggested Max Deflection | 48.26 mm |
| Suggested Max Load | 4.89 N |
| Total Coils | 8 |
| Wire Diameter | 0.99 mm |
The S-1590 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-1590CS compression spring is designed with a free length of 5" total of 8 coils, and a rate of 21 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1590 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-1590CS compression spring is designed with a free length of 5" total of 8 coils, and a rate of 21 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1590 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
