S-1576CS - 0.22" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

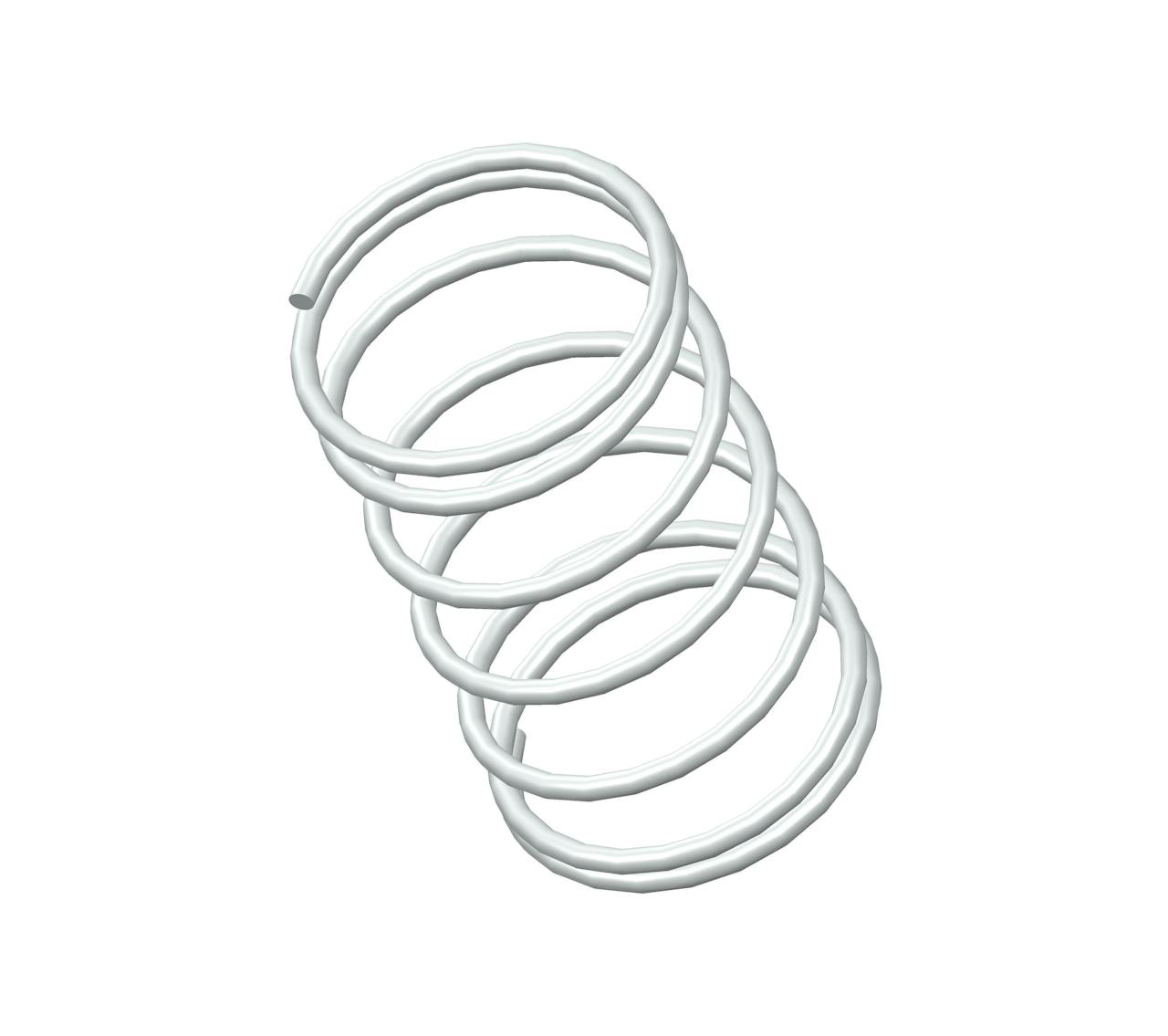

Compression spring manufactured from 302/304 stainless steel with 7 coils and closed ends. This spring features an O.D. of 0.125", and an I.D. of 0.109".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1576
Ends Closed
Finish None
Free Length 0.22 in
Inside Diameter 0.109 in
Material 302/304 Stainless Steel
Outside Diameter 0.125 in
Part Type Standard
Rate 0.65 lbs/in
SKU S-1576CS
Solid Length 0.06 in
Suggested Max Deflection 0.16 in
Suggested Max Load 0.1 lbf
Total Coils 7
Wire Diameter 0.008 in
The compression spring S-1576CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1576 compression spring design exhibits exceptional tensile strength and resilience.

The S-1576 design is manufactured with a free length of 0.22", with an outer diameter of 0.125", an inner diameter of 0.109", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.65 lbs/in.

The S-1576CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-1576 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
