S-1565CS - 2.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

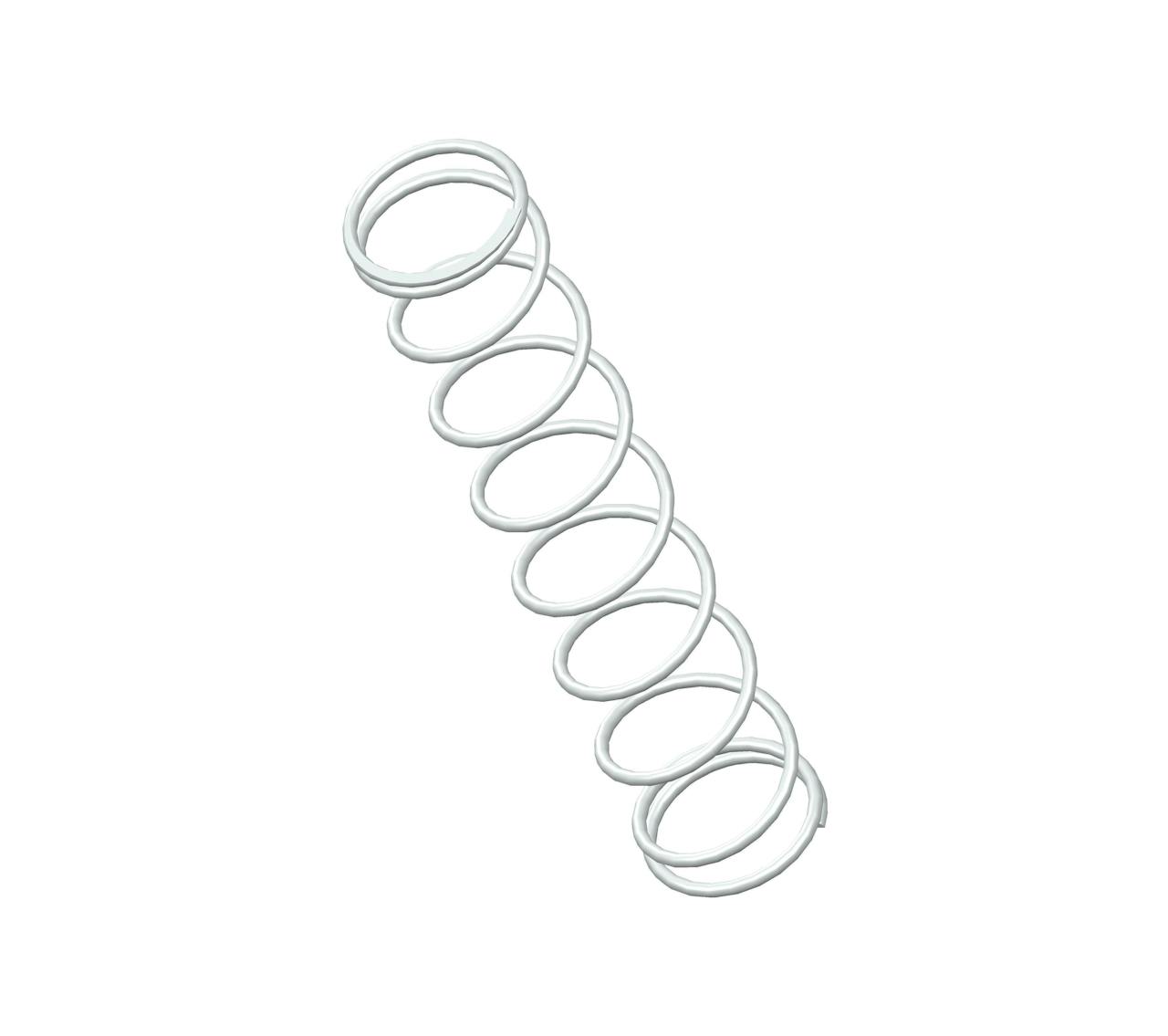

Compression spring manufactured from 302/304 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.484", and an I.D. of 0.41".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1565 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.5 in |
| Inside Diameter | 0.41 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.484 in |
| Part Type | Standard |
| Rate | 3.3 lbs/in |
| SKU | S-1565CS |
| Solid Length | 0.37 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 3.8 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.037 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1565 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 63.5 mm |
| Inside Diameter | 10.41 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 12.29 mm |
| Part Type | Standard |
| Rate | 0.58 N/mm |
| SKU | S-1565CS |
| Solid Length | 9.4 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 16.9 N |
| Total Coils | 10 |
| Wire Diameter | 0.94 mm |
The compression spring S-1565CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1565 compression spring design exhibits exceptional tensile strength and resilience.
The S-1565 design is manufactured with a free length of 2.5", with an outer diameter of 0.484", an inner diameter of 0.41", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.3 lbs/in.
The S-1565CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1565 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1565 design is manufactured with a free length of 2.5", with an outer diameter of 0.484", an inner diameter of 0.41", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.3 lbs/in.
The S-1565CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1565 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
