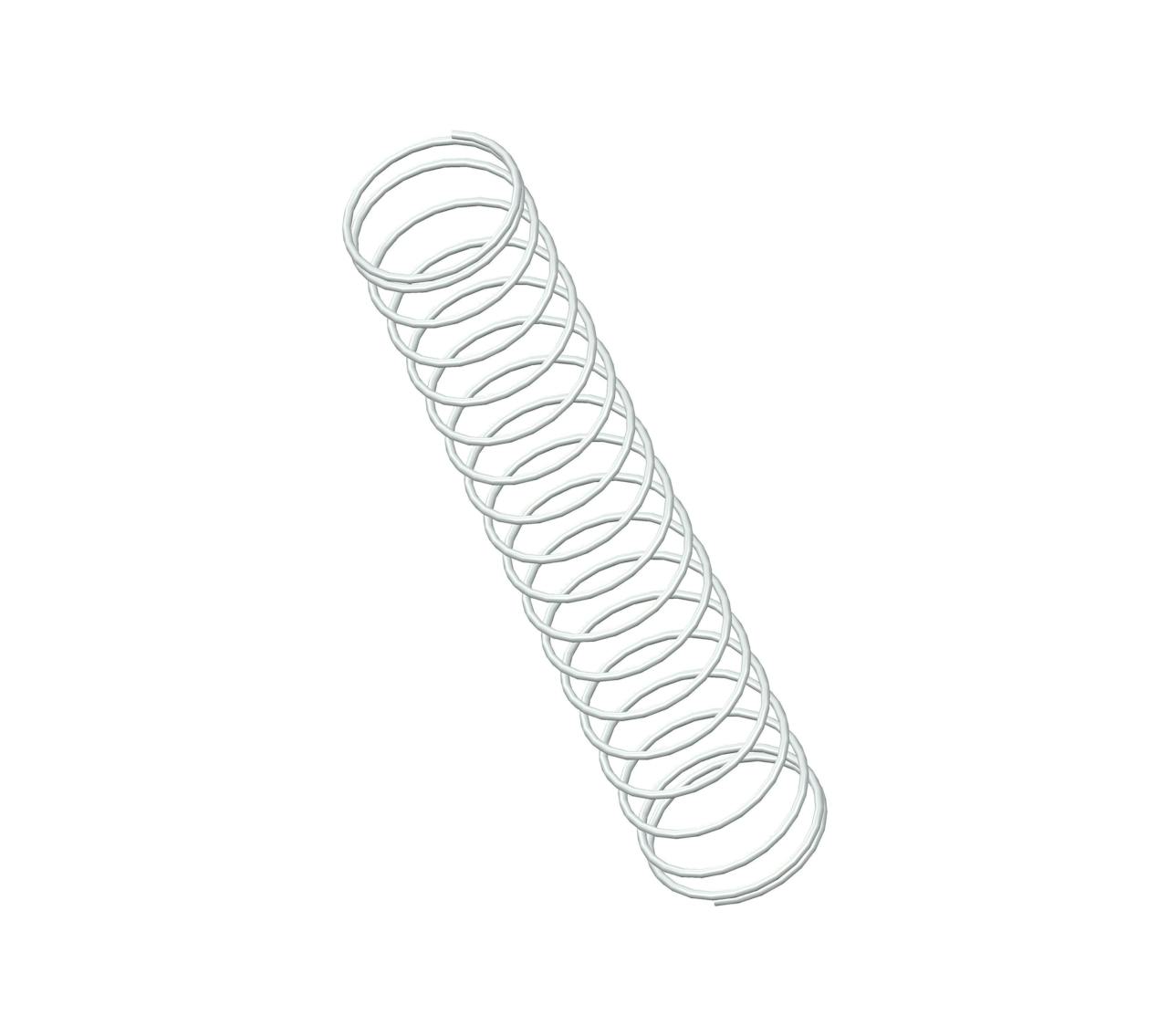

S-1525CS - 3.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 18.5 coils and closed ends. This spring features an O.D. of 0.656", and an I.D. of 0.594".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1525 |
| Ends | Closed |
| Finish | None |
| Free Length | 3.5 in |
| Inside Diameter | 0.594 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.656 in |
| Part Type | Standard |
| Rate | 0.29 lbs/in |
| SKU | S-1525CS |
| Solid Length | 0.6 in |
| Suggested Max Deflection | 2.9 in |
| Suggested Max Load | 0.83 lbf |
| Total Coils | 18.5 |
| Wire Diameter | 0.031 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1525 |
| Ends | Closed |
| Finish | None |
| Free Length | 88.9 mm |
| Inside Diameter | 15.09 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 16.66 mm |
| Part Type | Standard |
| Rate | 0.05 N/mm |
| SKU | S-1525CS |
| Solid Length | 15.24 mm |
| Suggested Max Deflection | 73.66 mm |
| Suggested Max Load | 3.69 N |
| Total Coils | 18.5 |
| Wire Diameter | 0.79 mm |
The compression spring S-1525CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1525 compression spring design exhibits exceptional tensile strength and resilience.
The S-1525 design is manufactured with a free length of 3.5", with an outer diameter of 0.656", an inner diameter of 0.594", and a total of 18.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.29 lbs/in.
The S-1525CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1525 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1525 design is manufactured with a free length of 3.5", with an outer diameter of 0.656", an inner diameter of 0.594", and a total of 18.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.29 lbs/in.
The S-1525CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1525 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
