S-149CS - 2.13" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

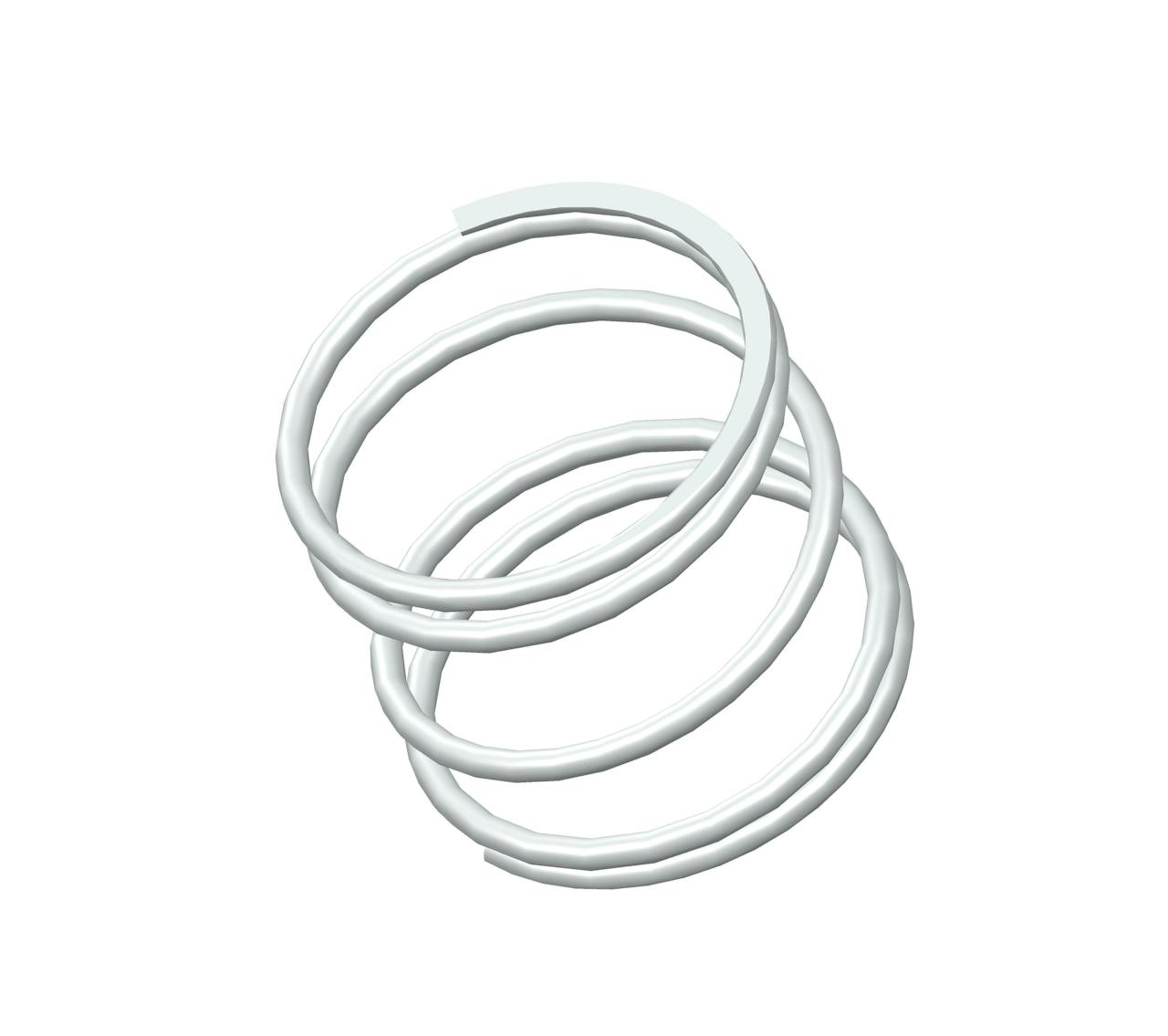

Compression spring manufactured from 302/304 stainless steel with 4.67 coils and closed & ground ends. This spring features an O.D. of 2.406", and an I.D. of 2.11".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-149 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.13 in |
| Inside Diameter | 2.11 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 2.406 in |
| Part Type | Standard |
| Rate | 19 lbs/in |
| SKU | S-149CS |
| Solid Length | 0.69 in |
| Suggested Max Deflection | 1.4 in |
| Suggested Max Load | 27 lbf |
| Total Coils | 4.67 |
| Wire Diameter | 0.148 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-149 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 54.1 mm |
| Inside Diameter | 53.59 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 61.11 mm |
| Part Type | Standard |
| Rate | 3.33 N/mm |
| SKU | S-149CS |
| Solid Length | 17.53 mm |
| Suggested Max Deflection | 35.56 mm |
| Suggested Max Load | 120.1 N |
| Total Coils | 4.67 |
| Wire Diameter | 3.76 mm |
The compression spring S-149CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-149 compression spring design exhibits exceptional tensile strength and resilience.
The S-149 design is manufactured with a free length of 2.13", with an outer diameter of 2.406", an inner diameter of 2.11", and a total of 4.67 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.
The S-149CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-149 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-149 design is manufactured with a free length of 2.13", with an outer diameter of 2.406", an inner diameter of 2.11", and a total of 4.67 coils, expertly designed to deliver consistent compression characteristics including a rate of 19 lbs/in.
The S-149CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-149 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
