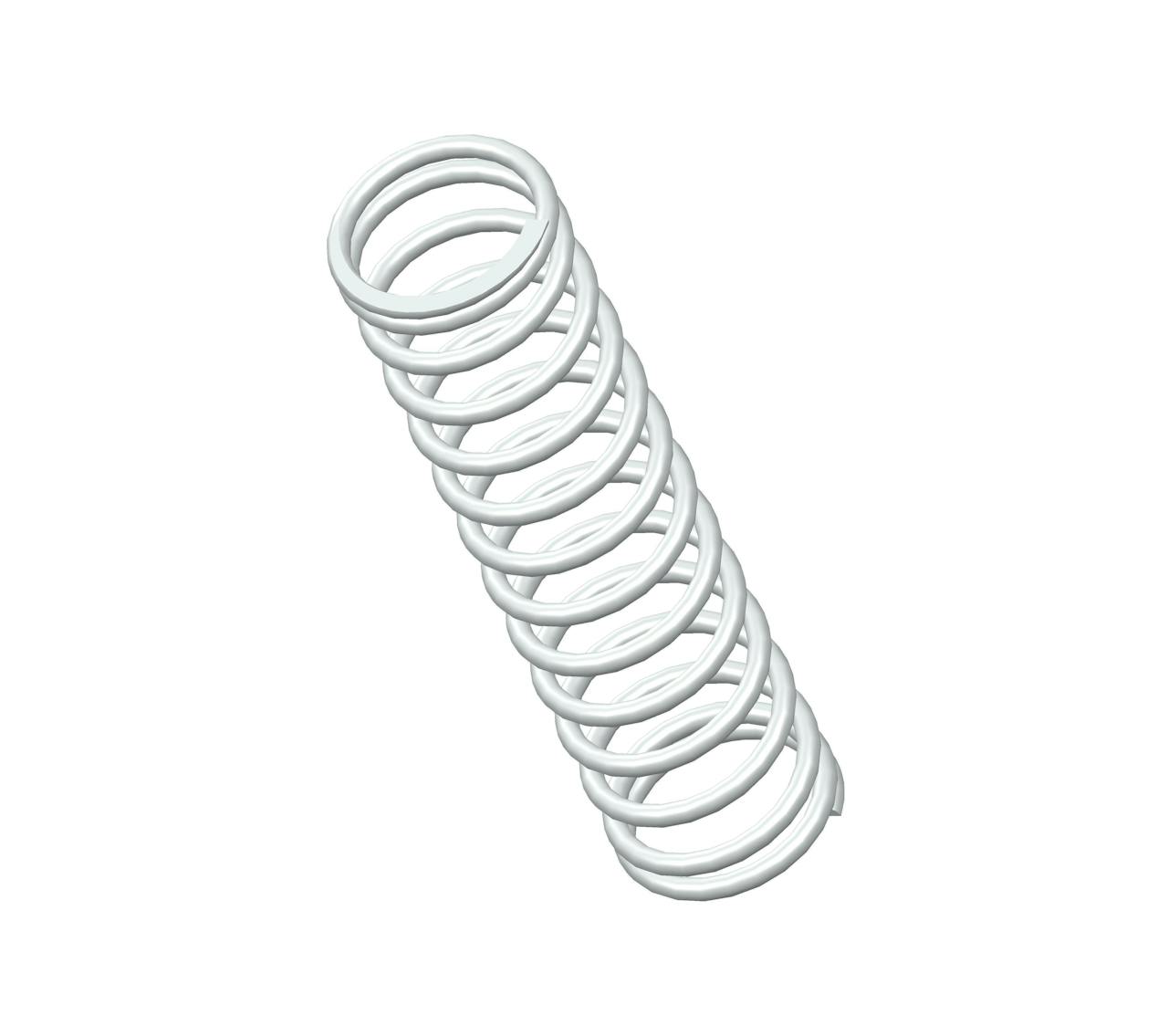

S-1486CS - 1.81" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 14 coils and closed & ground ends. This spring features an O.D. of 0.453", and an I.D. of 0.363".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1486 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.81 in |
| Inside Diameter | 0.363 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.453 in |
| Part Type | Standard |
| Rate | 6.3 lbs/in |
| SKU | S-1486CS |
| Solid Length | 0.63 in |
| Suggested Max Deflection | 1.2 in |
| Suggested Max Load | 7.2 lbf |
| Total Coils | 14 |
| Wire Diameter | 0.045 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1486 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 45.97 mm |
| Inside Diameter | 9.22 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 11.51 mm |
| Part Type | Standard |
| Rate | 1.1 N/mm |
| SKU | S-1486CS |
| Solid Length | 16 mm |
| Suggested Max Deflection | 30.48 mm |
| Suggested Max Load | 32.03 N |
| Total Coils | 14 |
| Wire Diameter | 1.14 mm |
The compression spring S-1486CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1486 compression spring design exhibits exceptional tensile strength and resilience.
The S-1486 design is manufactured with a free length of 1.81", with an outer diameter of 0.453", an inner diameter of 0.363", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.3 lbs/in.
The S-1486CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1486 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1486 design is manufactured with a free length of 1.81", with an outer diameter of 0.453", an inner diameter of 0.363", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 6.3 lbs/in.
The S-1486CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1486 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
