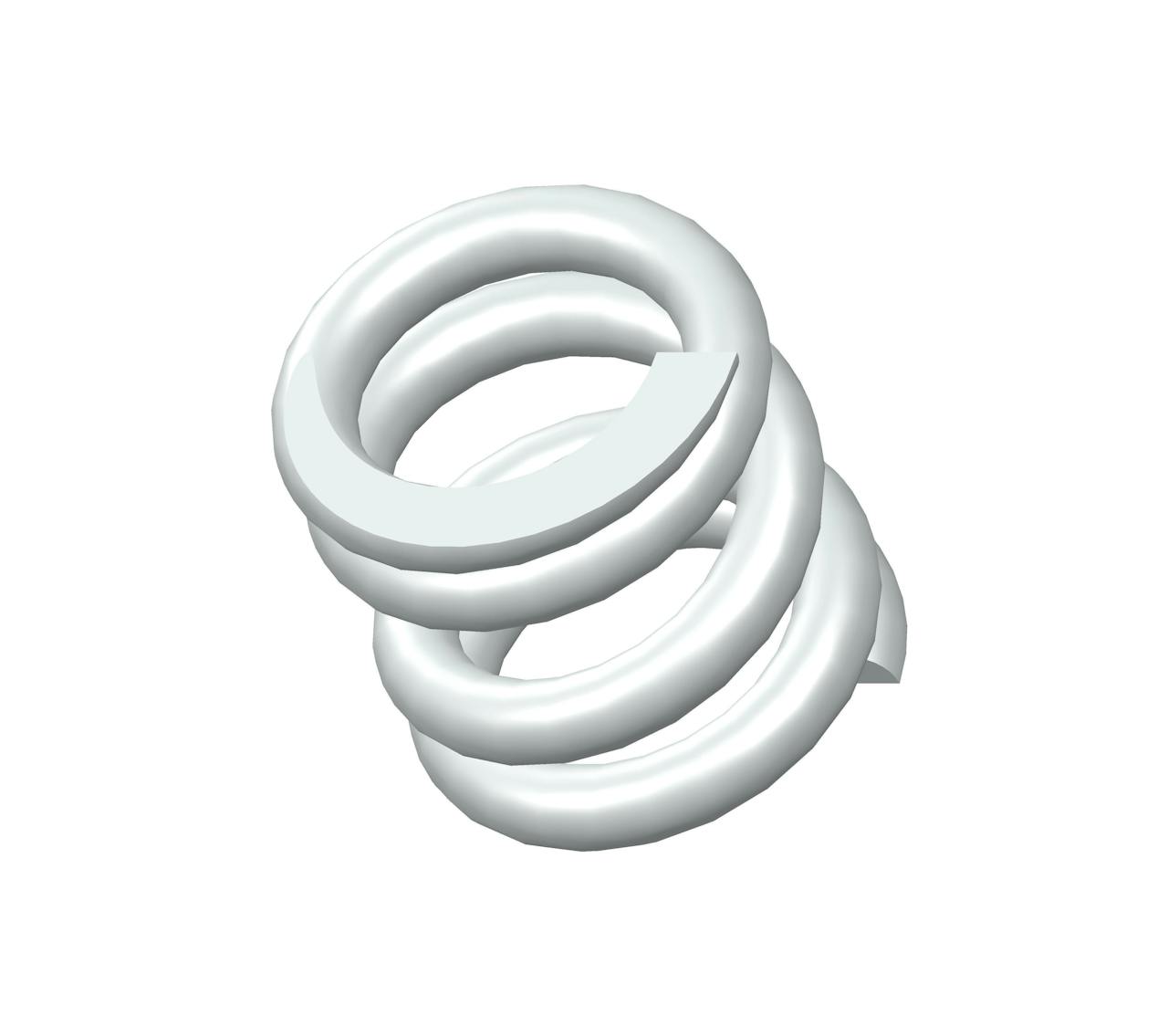

S-1464CS - 0.44" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 4 coils and closed & ground ends. This spring features an O.D. of 0.42", and an I.D. of 0.276".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1464 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.44 in |
| Inside Diameter | 0.276 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.42 in |
| Part Type | Standard |
| Rate | 395 lbs/in |
| SKU | S-1464CS |
| Solid Length | 0.29 in |
| Suggested Max Deflection | 0.07 in |
| Suggested Max Load | 27 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.072 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1464 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 11.18 mm |
| Inside Diameter | 7.01 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 10.67 mm |
| Part Type | Standard |
| Rate | 69.16 N/mm |
| SKU | S-1464CS |
| Solid Length | 7.37 mm |
| Suggested Max Deflection | 1.78 mm |
| Suggested Max Load | 120.1 N |
| Total Coils | 4 |
| Wire Diameter | 1.83 mm |
The compression spring S-1464CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1464 compression spring design exhibits exceptional tensile strength and resilience.
The S-1464 design is manufactured with a free length of 0.44", with an outer diameter of 0.42", an inner diameter of 0.276", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 395 lbs/in.
The S-1464CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1464 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
