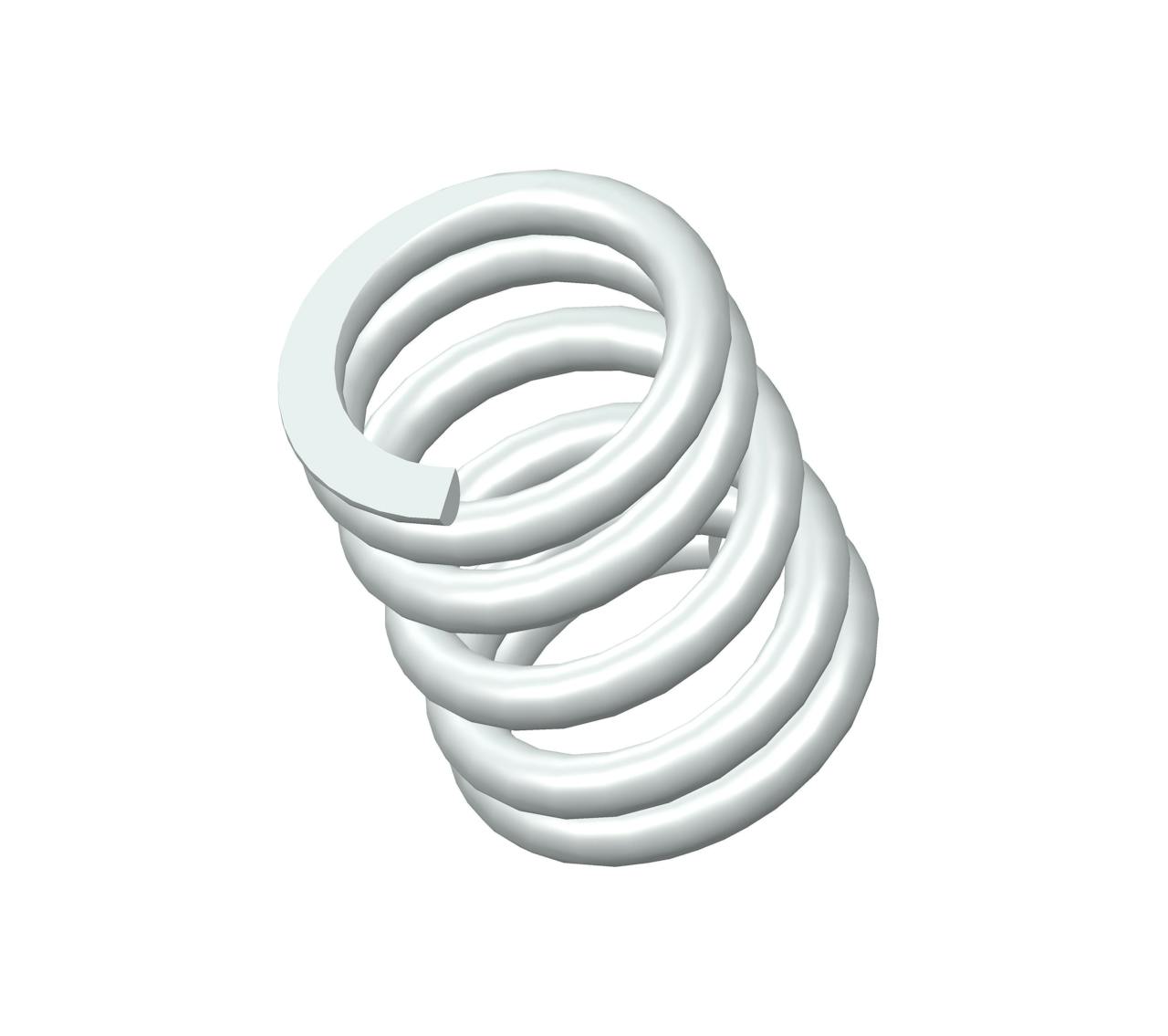

S-1443CS - 1.84" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 5.5 coils and closed & ground ends. This spring features an O.D. of 1.468", and an I.D. of 1.054".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1443 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.84 in |
| Inside Diameter | 1.054 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.468 in |
| Part Type | Standard |
| Rate | 327 lbs/in |
| SKU | S-1443CS |
| Solid Length | 1.14 in |
| Suggested Max Deflection | 0.45 in |
| Suggested Max Load | 146 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.207 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1443 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 46.74 mm |
| Inside Diameter | 26.77 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 37.29 mm |
| Part Type | Standard |
| Rate | 57.26 N/mm |
| SKU | S-1443CS |
| Solid Length | 28.96 mm |
| Suggested Max Deflection | 11.43 mm |
| Suggested Max Load | 649.41 N |
| Total Coils | 5.5 |
| Wire Diameter | 5.26 mm |
The compression spring S-1443CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1443 compression spring design exhibits exceptional tensile strength and resilience.
The S-1443 design is manufactured with a free length of 1.84", with an outer diameter of 1.468", an inner diameter of 1.054", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 327 lbs/in.
The S-1443CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1443 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1443 design is manufactured with a free length of 1.84", with an outer diameter of 1.468", an inner diameter of 1.054", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 327 lbs/in.
The S-1443CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1443 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
