Shop Online > Springs > Compression > Regular
S-1439CS - 2.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

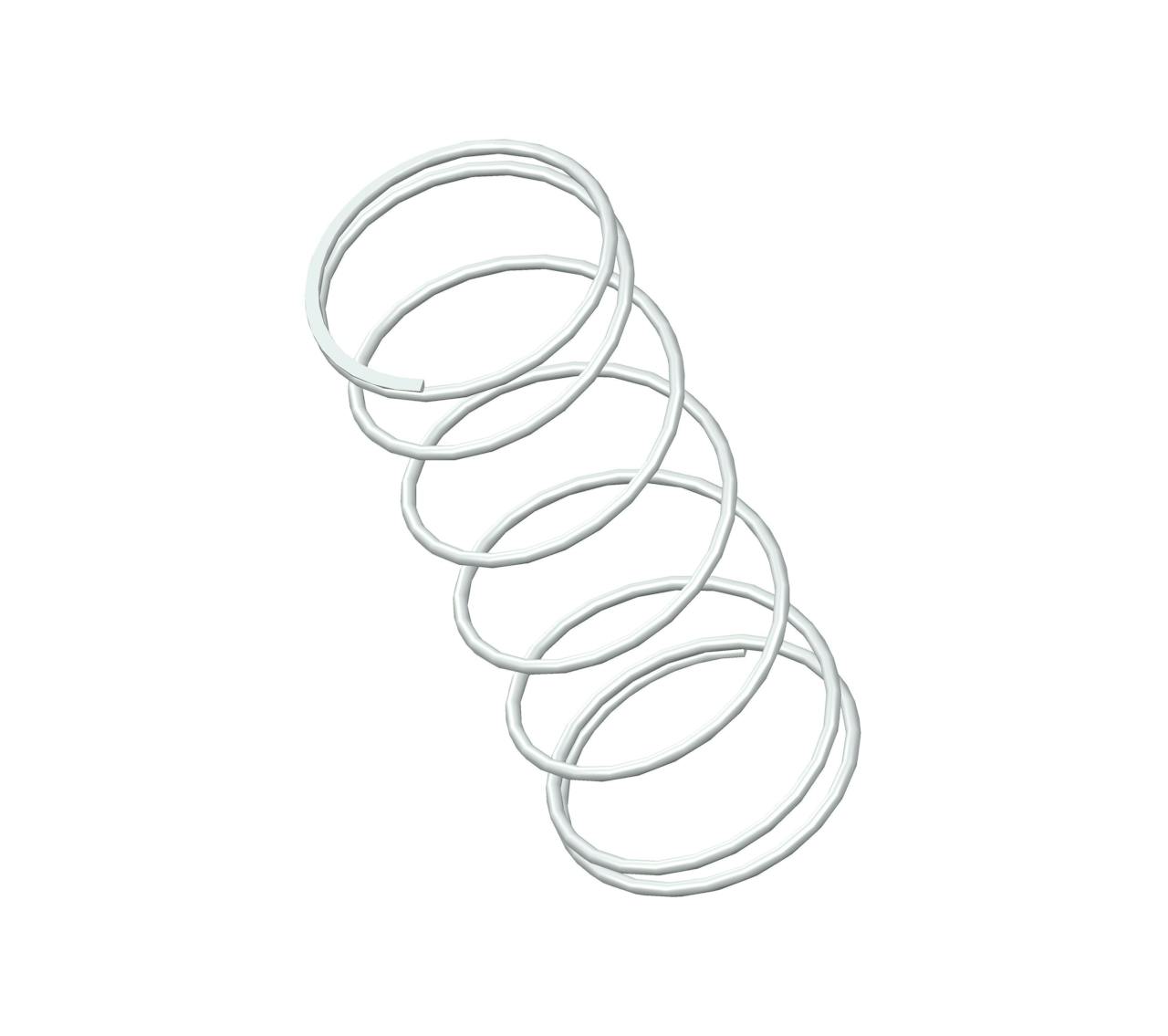

Compression spring manufactured from 302/304 stainless steel with 7.5 coils and closed ends. This spring features an O.D. of 1.094", and an I.D. of 0.992".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1439 |
| Ends | Closed |
| Finish | None |
| Free Length | 2.75 in |
| Inside Diameter | 0.992 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.094 in |
| Part Type | Standard |
| Rate | 1.4 lbs/in |
| SKU | S-1439CS |
| Solid Length | 0.43 in |
| Suggested Max Deflection | 2.3 in |
| Suggested Max Load | 3.1 lbf |
| Total Coils | 7.5 |
| Wire Diameter | 0.051 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1439 |
| Ends | Closed |
| Finish | None |
| Free Length | 69.85 mm |
| Inside Diameter | 25.2 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 27.79 mm |
| Part Type | Standard |
| Rate | 0.25 N/mm |
| SKU | S-1439CS |
| Solid Length | 10.92 mm |
| Suggested Max Deflection | 58.42 mm |
| Suggested Max Load | 13.79 N |
| Total Coils | 7.5 |
| Wire Diameter | 1.3 mm |
The S-1439 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-1439CS compression spring is designed with a free length of 0.81" total of 5 coils, and a rate of 0.27 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1439 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-1439CS compression spring is designed with a free length of 0.81" total of 5 coils, and a rate of 0.27 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1439 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
