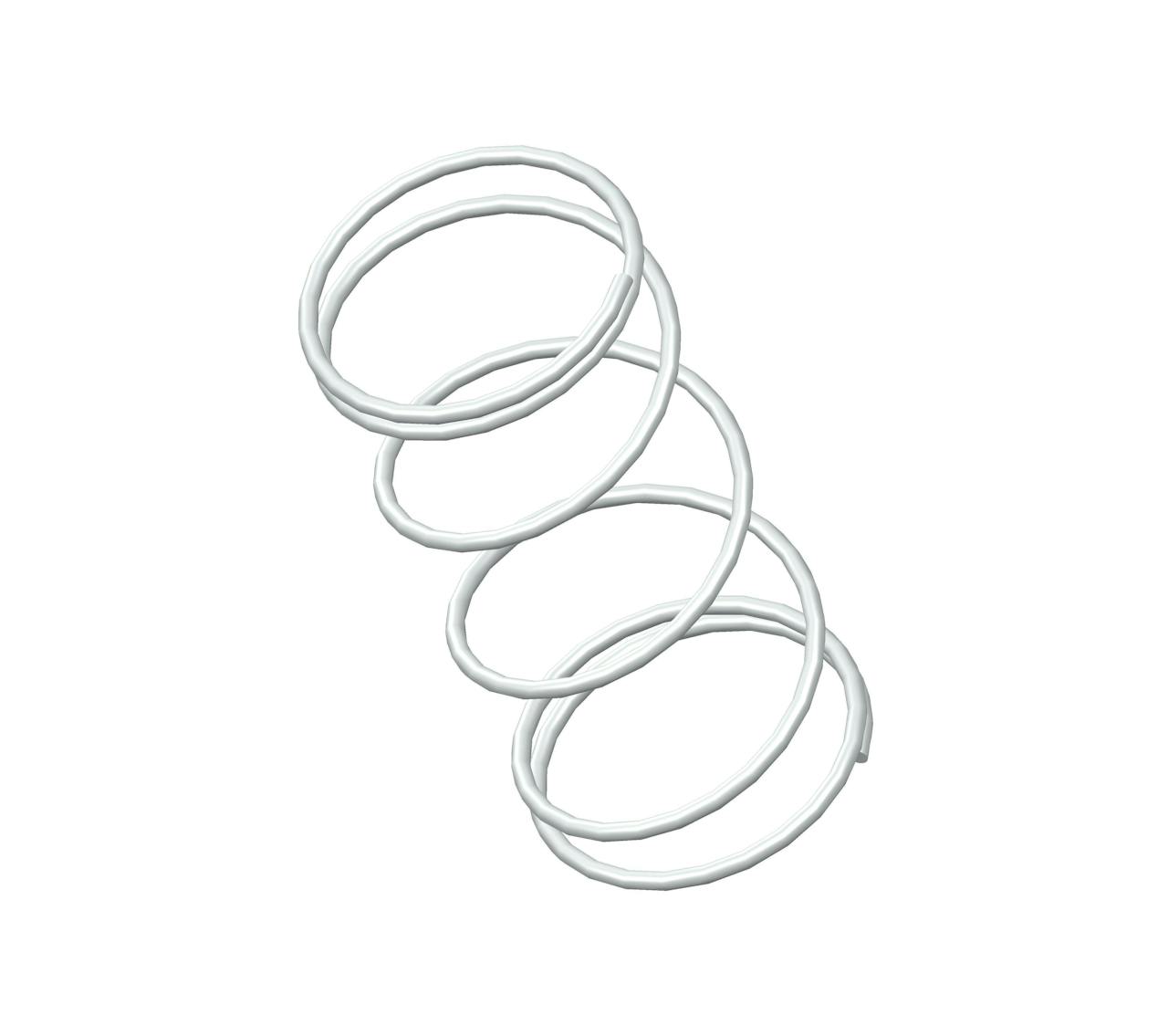

S-1386CS - 2.19" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6 coils and closed ends. This spring features an O.D. of 1", and an I.D. of 0.892".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1386 |
| Ends | Closed |
| Finish | None |
| Free Length | 2.19 in |
| Inside Diameter | 0.892 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1 in |
| Part Type | Standard |
| Rate | 3.1 lbs/in |
| SKU | S-1386CS |
| Solid Length | 0.38 in |
| Suggested Max Deflection | 1.7 in |
| Suggested Max Load | 5.4 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.054 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1386 |
| Ends | Closed |
| Finish | None |
| Free Length | 55.63 mm |
| Inside Diameter | 22.66 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 25.4 mm |
| Part Type | Standard |
| Rate | 0.54 N/mm |
| SKU | S-1386CS |
| Solid Length | 9.65 mm |
| Suggested Max Deflection | 43.18 mm |
| Suggested Max Load | 24.02 N |
| Total Coils | 6 |
| Wire Diameter | 1.37 mm |
The compression spring S-1386CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1386 compression spring design exhibits exceptional tensile strength and resilience.
The S-1386 design is manufactured with a free length of 2.19", with an outer diameter of 1", an inner diameter of 0.892", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.1 lbs/in.
The S-1386CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1386 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1386 design is manufactured with a free length of 2.19", with an outer diameter of 1", an inner diameter of 0.892", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.1 lbs/in.
The S-1386CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1386 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
