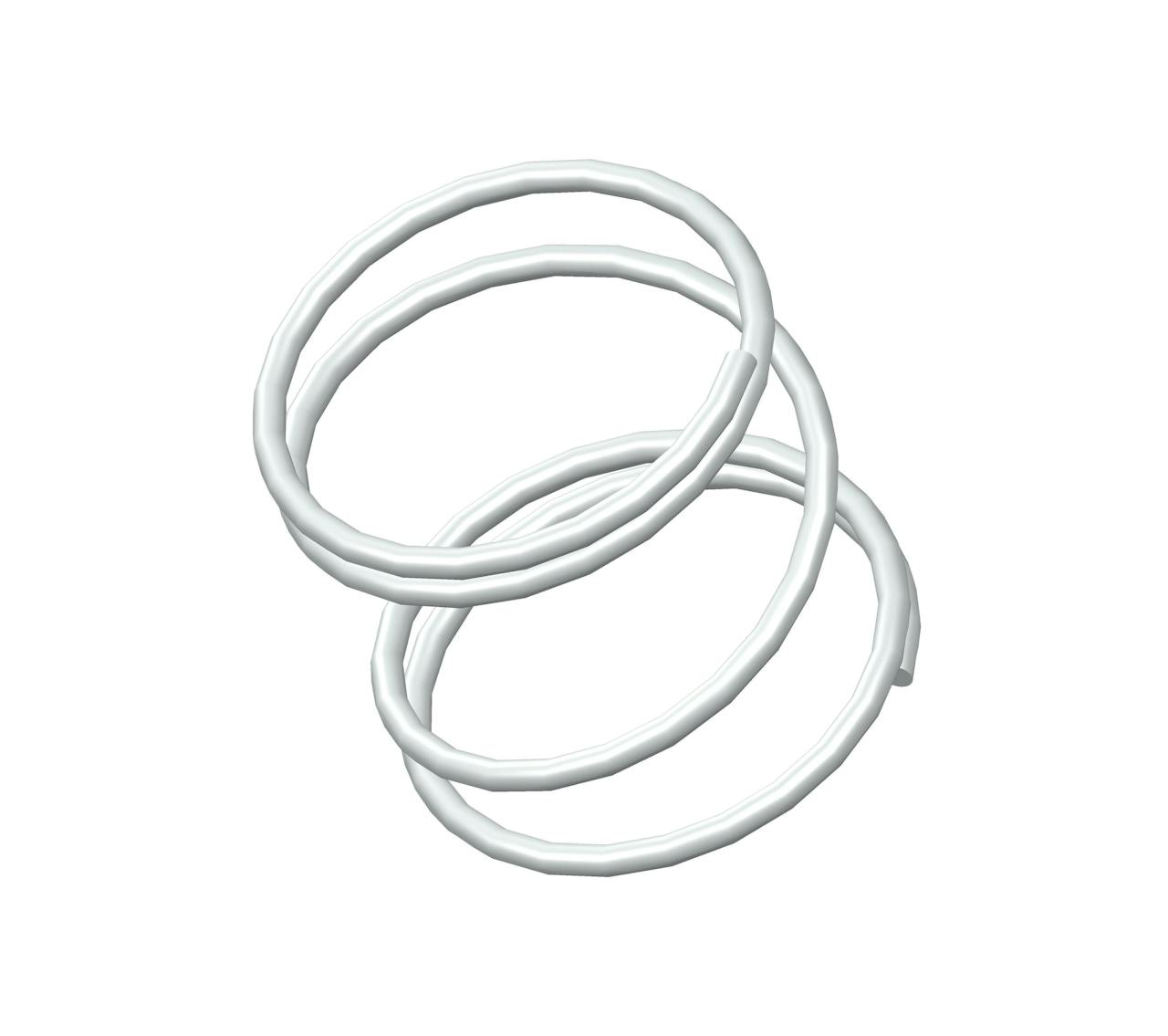

S-1360CS - 1" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 4 coils and closed ends. This spring features an O.D. of 1", and an I.D. of 0.88".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1360 |
| Ends | Closed |
| Finish | None |
| Free Length | 1 in |
| Inside Diameter | 0.88 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1 in |
| Part Type | Standard |
| Rate | 9.8 lbs/in |
| SKU | S-1360CS |
| Solid Length | 0.3 in |
| Suggested Max Deflection | 0.7 in |
| Suggested Max Load | 6.8 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.06 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1360 |
| Ends | Closed |
| Finish | None |
| Free Length | 25.4 mm |
| Inside Diameter | 22.35 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 25.4 mm |
| Part Type | Standard |
| Rate | 1.72 N/mm |
| SKU | S-1360CS |
| Solid Length | 7.62 mm |
| Suggested Max Deflection | 17.78 mm |
| Suggested Max Load | 30.25 N |
| Total Coils | 4 |
| Wire Diameter | 1.52 mm |
The compression spring S-1360CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1360 compression spring design exhibits exceptional tensile strength and resilience.
The S-1360 design is manufactured with a free length of 1", with an outer diameter of 1", an inner diameter of 0.88", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.8 lbs/in.
The S-1360CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1360 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
