S-1355CS - 3.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

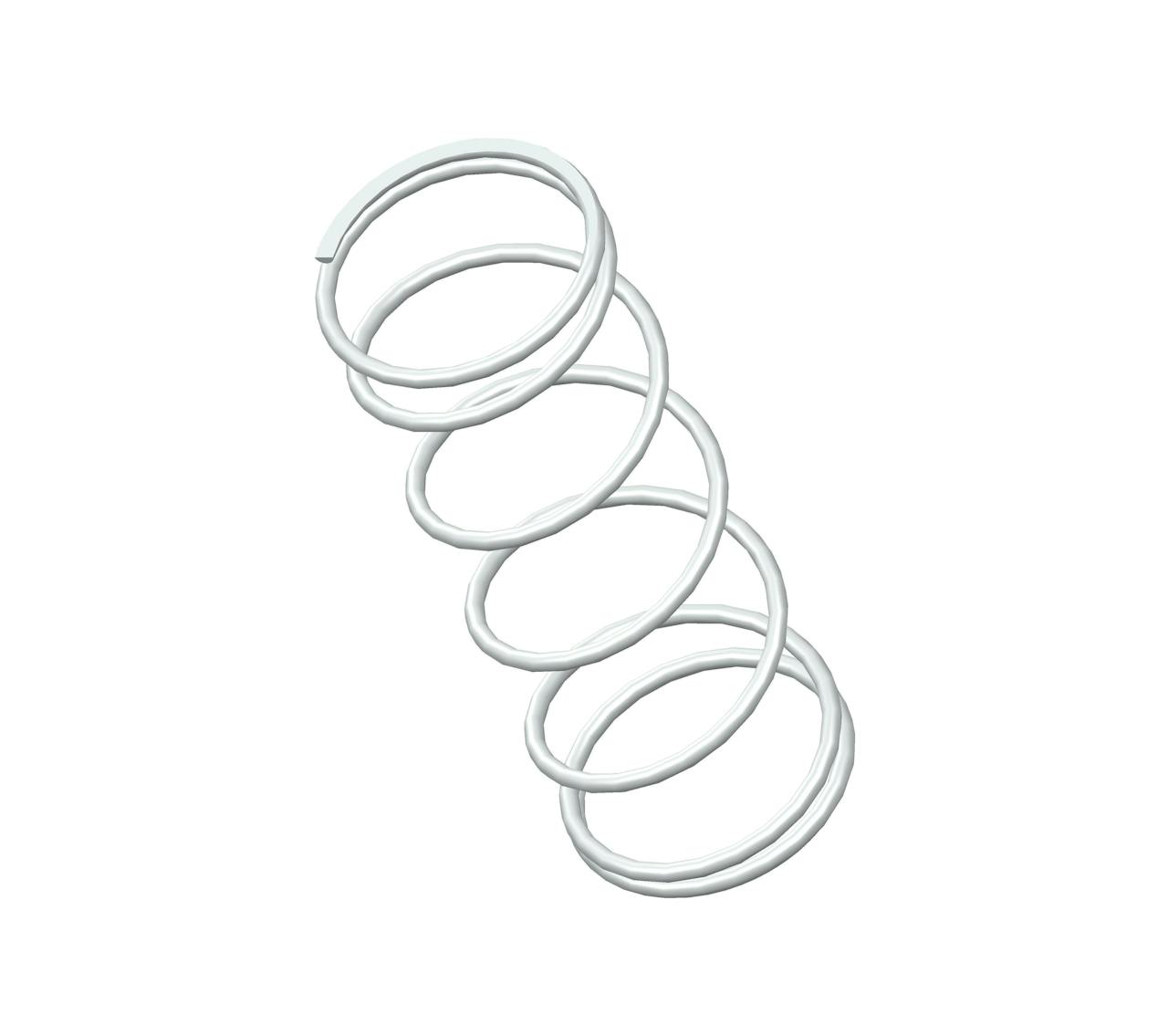

Compression spring manufactured from 302/304 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 1.375", and an I.D. of 1.199".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1355 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 3.75 in |
| Inside Diameter | 1.199 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.375 in |
| Part Type | Standard |
| Rate | 7 lbs/in |
| SKU | S-1355CS |
| Solid Length | 0.62 in |
| Suggested Max Deflection | 2.3 in |
| Suggested Max Load | 16 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.088 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1355 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 95.25 mm |
| Inside Diameter | 30.45 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 34.93 mm |
| Part Type | Standard |
| Rate | 1.23 N/mm |
| SKU | S-1355CS |
| Solid Length | 15.75 mm |
| Suggested Max Deflection | 58.42 mm |
| Suggested Max Load | 71.17 N |
| Total Coils | 7 |
| Wire Diameter | 2.24 mm |
The compression spring S-1355CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1355 compression spring design exhibits exceptional tensile strength and resilience.
The S-1355 design is manufactured with a free length of 3.75", with an outer diameter of 1.375", an inner diameter of 1.199", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 7 lbs/in.
The S-1355CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1355 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1355 design is manufactured with a free length of 3.75", with an outer diameter of 1.375", an inner diameter of 1.199", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 7 lbs/in.
The S-1355CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1355 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
