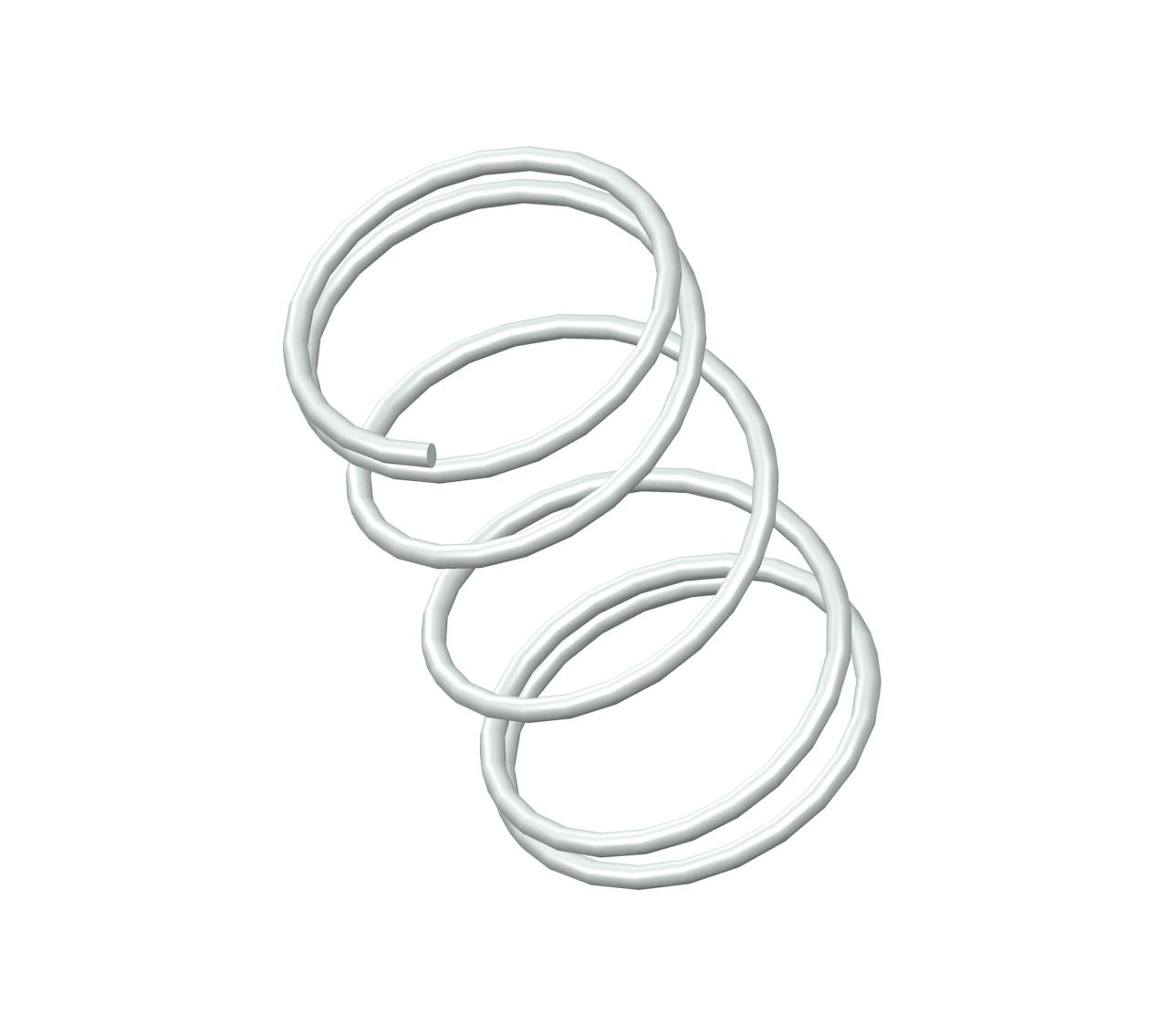

S-1330CS - 1" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 5.5 coils and closed ends. This spring features an O.D. of 0.578", and an I.D. of 0.508".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1330 |
| Ends | Closed |
| Finish | None |
| Free Length | 1 in |
| Inside Diameter | 0.508 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.578 in |
| Part Type | Standard |
| Rate | 3.3 lbs/in |
| SKU | S-1330CS |
| Solid Length | 0.23 in |
| Suggested Max Deflection | 0.77 in |
| Suggested Max Load | 2.6 lbf |
| Total Coils | 5.5 |
| Wire Diameter | 0.035 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1330 |
| Ends | Closed |
| Finish | None |
| Free Length | 25.4 mm |
| Inside Diameter | 12.9 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 14.68 mm |
| Part Type | Standard |
| Rate | 0.58 N/mm |
| SKU | S-1330CS |
| Solid Length | 5.84 mm |
| Suggested Max Deflection | 19.56 mm |
| Suggested Max Load | 11.56 N |
| Total Coils | 5.5 |
| Wire Diameter | 0.89 mm |
The compression spring S-1330CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1330 compression spring design exhibits exceptional tensile strength and resilience.
The S-1330 design is manufactured with a free length of 1", with an outer diameter of 0.578", an inner diameter of 0.508", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.3 lbs/in.
The S-1330CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1330 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1330 design is manufactured with a free length of 1", with an outer diameter of 0.578", an inner diameter of 0.508", and a total of 5.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 3.3 lbs/in.
The S-1330CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1330 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
