S-1267CS - 0.31" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

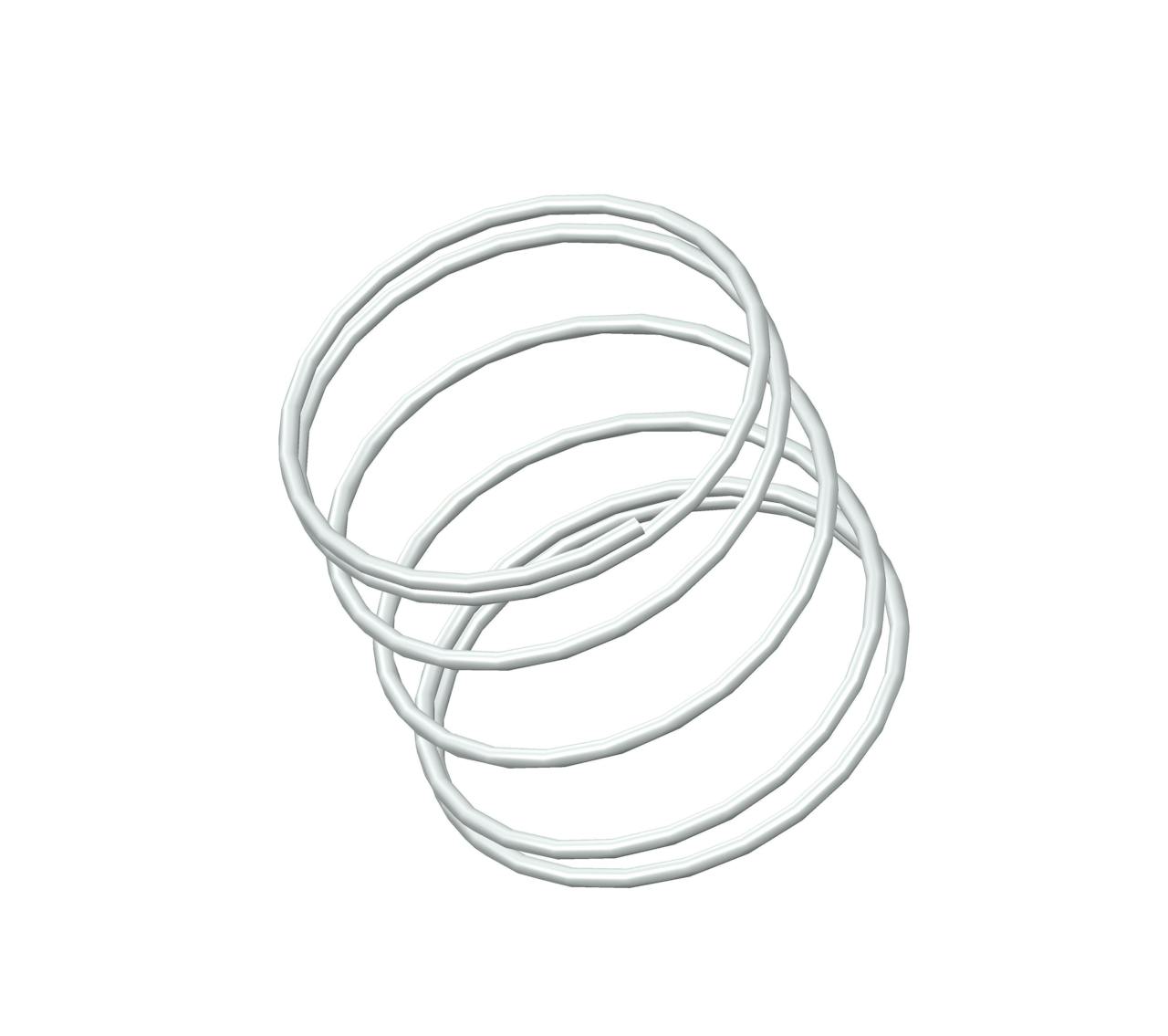

Compression spring manufactured from 302/304 stainless steel with 5.75 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.288".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1267 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.31 in |
| Inside Diameter | 0.288 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 0.26 lbs/in |
| SKU | S-1267CS |
| Solid Length | 0.08 in |
| Suggested Max Deflection | 0.23 in |
| Suggested Max Load | 0.06 lbf |
| Total Coils | 5.75 |
| Wire Diameter | 0.012 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1267 |
| Ends | Closed |
| Finish | None |
| Free Length | 7.87 mm |
| Inside Diameter | 7.32 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 0.05 N/mm |
| SKU | S-1267CS |
| Solid Length | 2.03 mm |
| Suggested Max Deflection | 5.84 mm |
| Suggested Max Load | 0.27 N |
| Total Coils | 5.75 |
| Wire Diameter | 0.3 mm |
The compression spring S-1267CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1267 compression spring design exhibits exceptional tensile strength and resilience.
The S-1267 design is manufactured with a free length of 0.31", with an outer diameter of 0.312", an inner diameter of 0.288", and a total of 5.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.26 lbs/in.
The S-1267CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1267 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1267 design is manufactured with a free length of 0.31", with an outer diameter of 0.312", an inner diameter of 0.288", and a total of 5.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.26 lbs/in.
The S-1267CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1267 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
