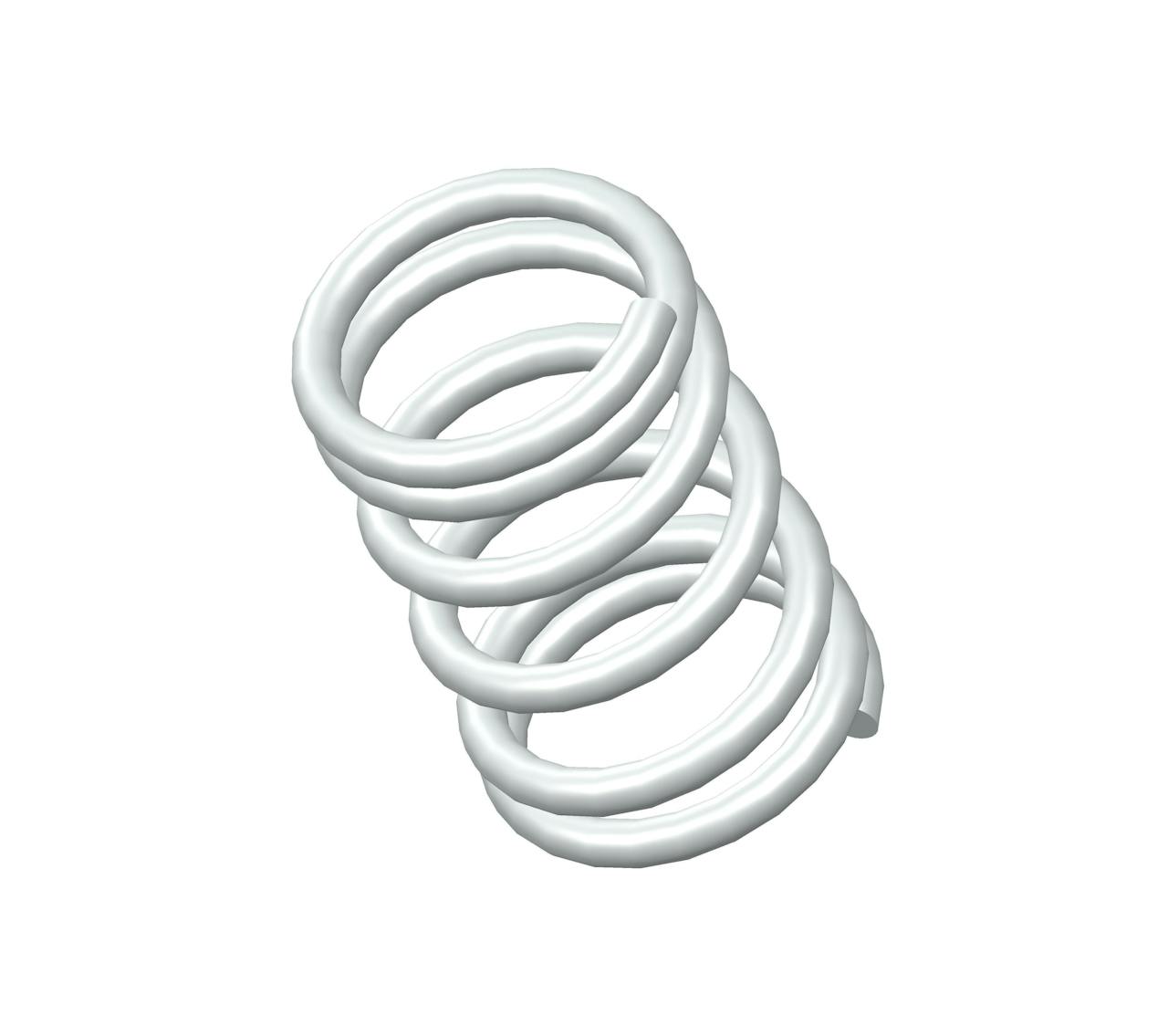

S-1265CS - 0.53" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6 coils and closed ends. This spring features an O.D. of 0.312", and an I.D. of 0.238".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1265 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.53 in |
| Inside Diameter | 0.238 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.312 in |
| Part Type | Standard |
| Rate | 28 lbs/in |
| SKU | S-1265CS |
| Solid Length | 0.26 in |
| Suggested Max Deflection | 0.21 in |
| Suggested Max Load | 5.8 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.037 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1265 |
| Ends | Closed |
| Finish | None |
| Free Length | 13.46 mm |
| Inside Diameter | 6.05 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.92 mm |
| Part Type | Standard |
| Rate | 4.9 N/mm |
| SKU | S-1265CS |
| Solid Length | 6.6 mm |
| Suggested Max Deflection | 5.33 mm |
| Suggested Max Load | 25.8 N |
| Total Coils | 6 |
| Wire Diameter | 0.94 mm |
The S-1265 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The S-1265CS compression spring is designed with a free length of 0.69" total of 5.5 coils, and a rate of 136 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1265 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The S-1265CS compression spring is designed with a free length of 0.69" total of 5.5 coils, and a rate of 136 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The S-1265 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
