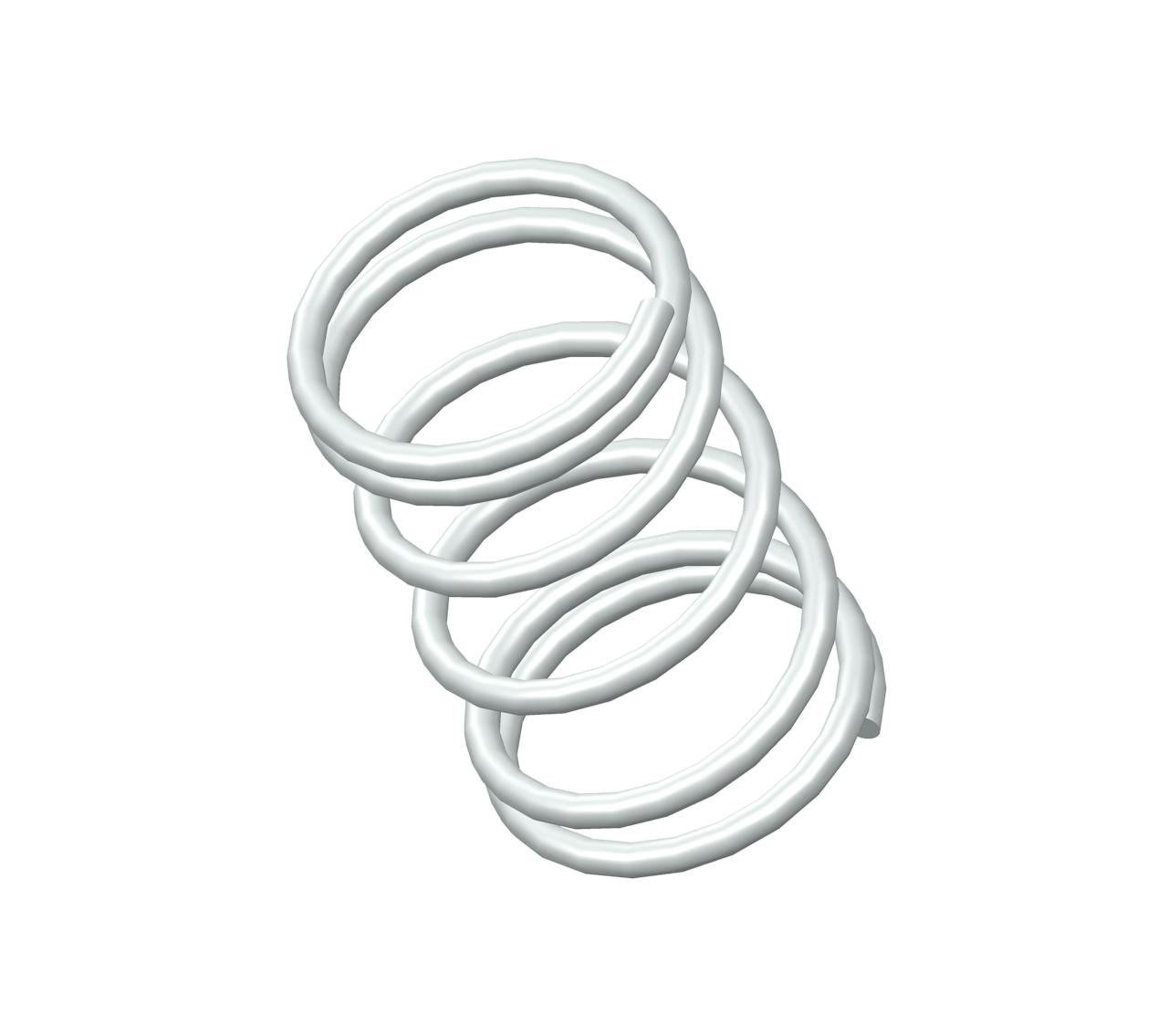

S-1231CS - 0.69" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 6 coils and closed ends. This spring features an O.D. of 0.406", and an I.D. of 0.336".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1231
Ends Closed
Finish None
Free Length 0.69 in
Inside Diameter 0.336 in
Material 302/304 Stainless Steel
Outside Diameter 0.406 in
Part Type Standard
Rate 9.4 lbs/in
SKU S-1231CS
Solid Length 0.25 in
Suggested Max Deflection 0.41 in
Suggested Max Load 3.8 lbf
Total Coils 6
Wire Diameter 0.035 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-1231
Ends Closed
Finish None
Free Length 17.53 mm
Inside Diameter 8.53 mm
Material 302/304 Stainless Steel
Outside Diameter 10.31 mm
Part Type Standard
Rate 1.65 N/mm
SKU S-1231CS
Solid Length 6.35 mm
Suggested Max Deflection 10.41 mm
Suggested Max Load 16.9 N
Total Coils 6
Wire Diameter 0.89 mm
The compression spring S-1231CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1231 compression spring design exhibits exceptional tensile strength and resilience.

The S-1231 design is manufactured with a free length of 0.69", with an outer diameter of 0.406", an inner diameter of 0.336", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.4 lbs/in.

The S-1231CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-1231 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
