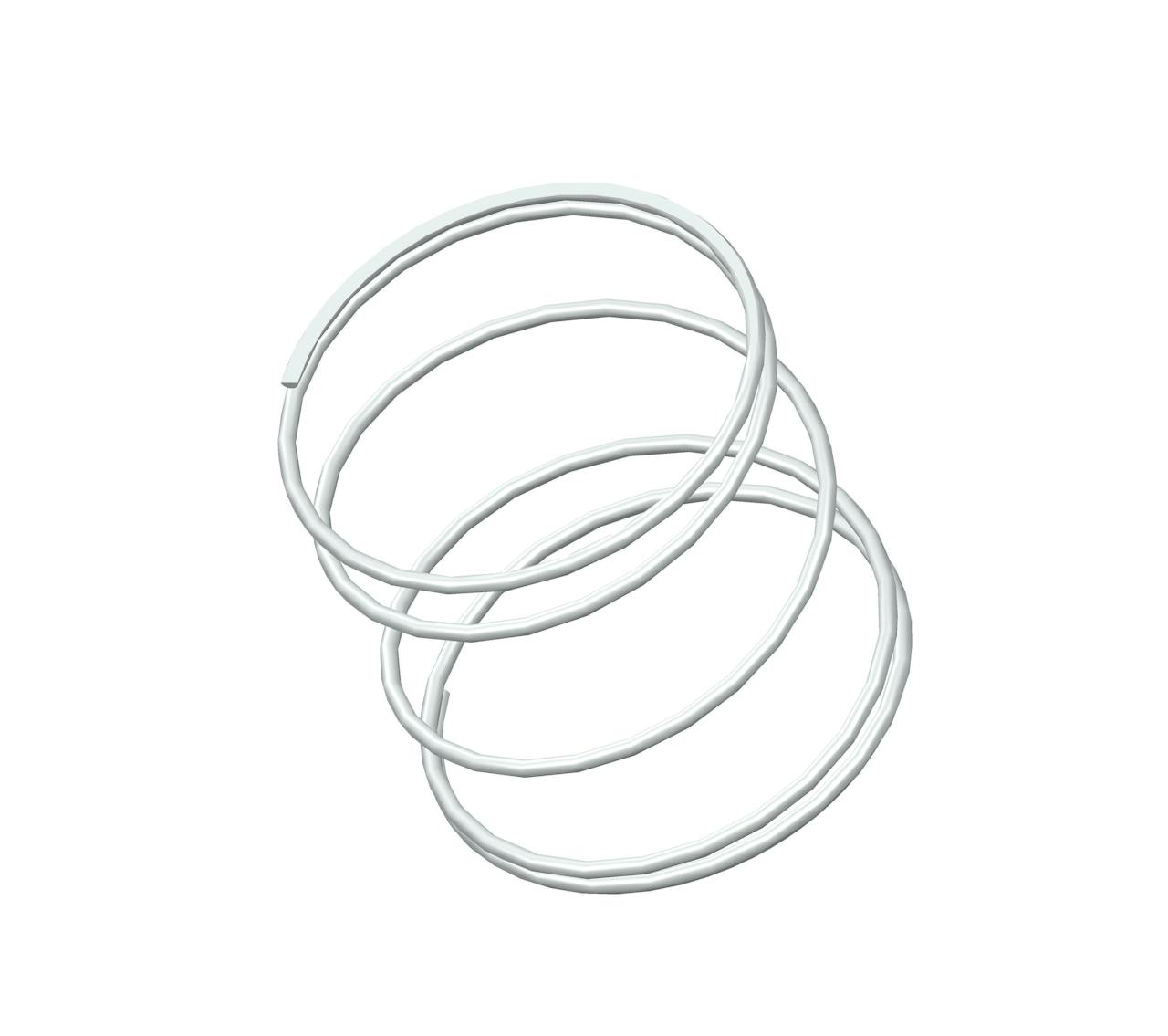

S-1229CS - 1.38" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 5 coils and closed ends. This spring features an O.D. of 1.421", and an I.D. of 1.321".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1229 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.38 in |
| Inside Diameter | 1.321 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 1.421 in |
| Part Type | Standard |
| Rate | 1 lbs/in |
| SKU | S-1229CS |
| Solid Length | 0.3 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 1.1 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.05 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1229 |
| Ends | Closed |
| Finish | None |
| Free Length | 35.05 mm |
| Inside Diameter | 33.55 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 36.09 mm |
| Part Type | Standard |
| Rate | 0.18 N/mm |
| SKU | S-1229CS |
| Solid Length | 7.62 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 4.89 N |
| Total Coils | 5 |
| Wire Diameter | 1.27 mm |
The compression spring S-1229CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1229 compression spring design exhibits exceptional tensile strength and resilience.
The S-1229 design is manufactured with a free length of 1.38", with an outer diameter of 1.421", an inner diameter of 1.321", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1 lbs/in.
The S-1229CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1229 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1229 design is manufactured with a free length of 1.38", with an outer diameter of 1.421", an inner diameter of 1.321", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1 lbs/in.
The S-1229CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1229 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
