S-1186CS - 1.5" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

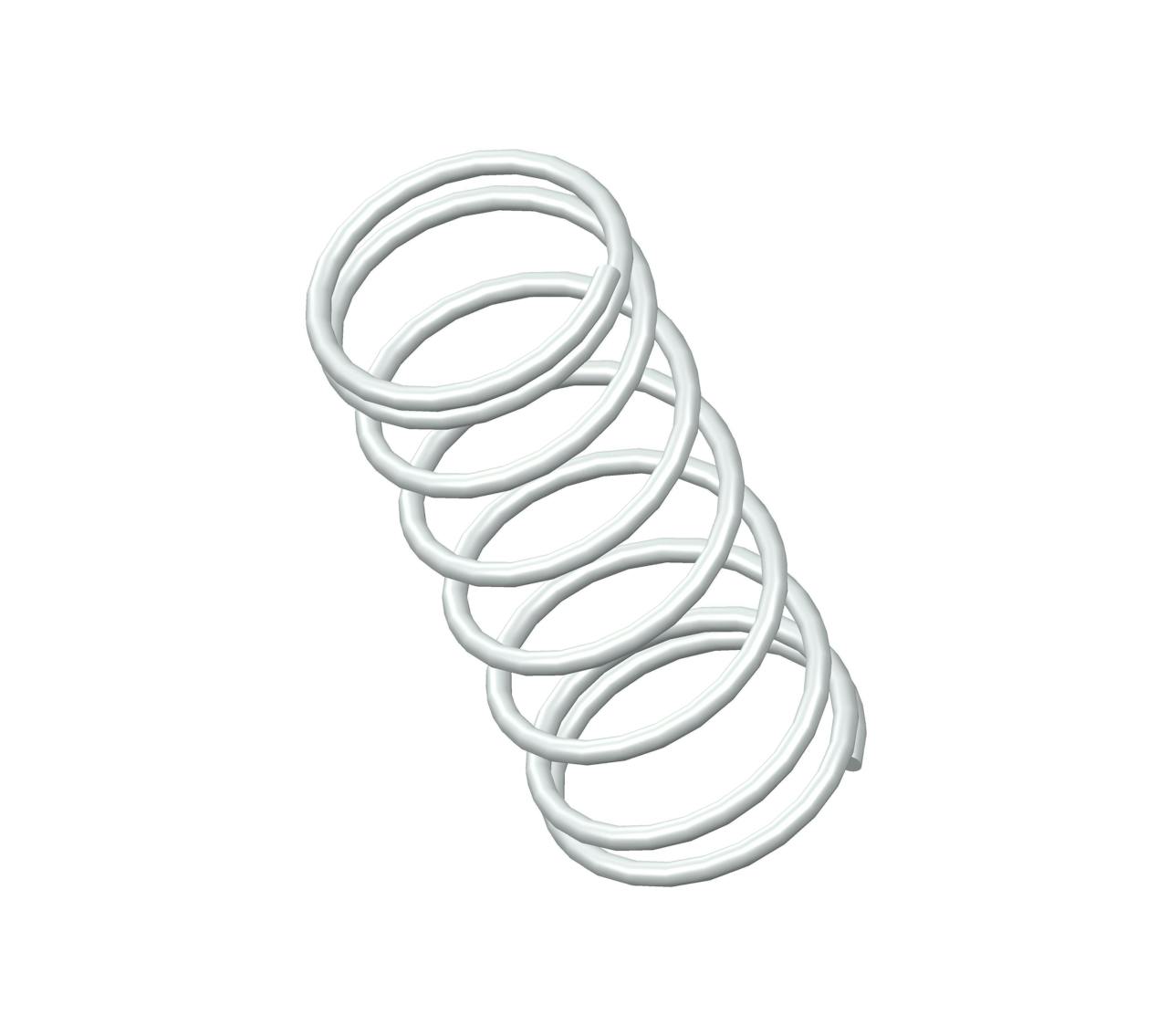

Compression spring manufactured from 302/304 stainless steel with 8 coils and closed ends. This spring features an O.D. of 0.625", and an I.D. of 0.531".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1186
Ends Closed
Finish None
Free Length 1.5 in
Inside Diameter 0.531 in
Material 302/304 Stainless Steel
Outside Diameter 0.625 in
Part Type Standard
Rate 5.3 lbs/in
SKU S-1186CS
Solid Length 0.42 in
Suggested Max Deflection 1.1 in
Suggested Max Load 5.7 lbf
Total Coils 8
Wire Diameter 0.047 in
The compression spring S-1186CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1186 compression spring design exhibits exceptional tensile strength and resilience.

The S-1186 design is manufactured with a free length of 1.5", with an outer diameter of 0.625", an inner diameter of 0.531", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.3 lbs/in.

The S-1186CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring S-1186 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
