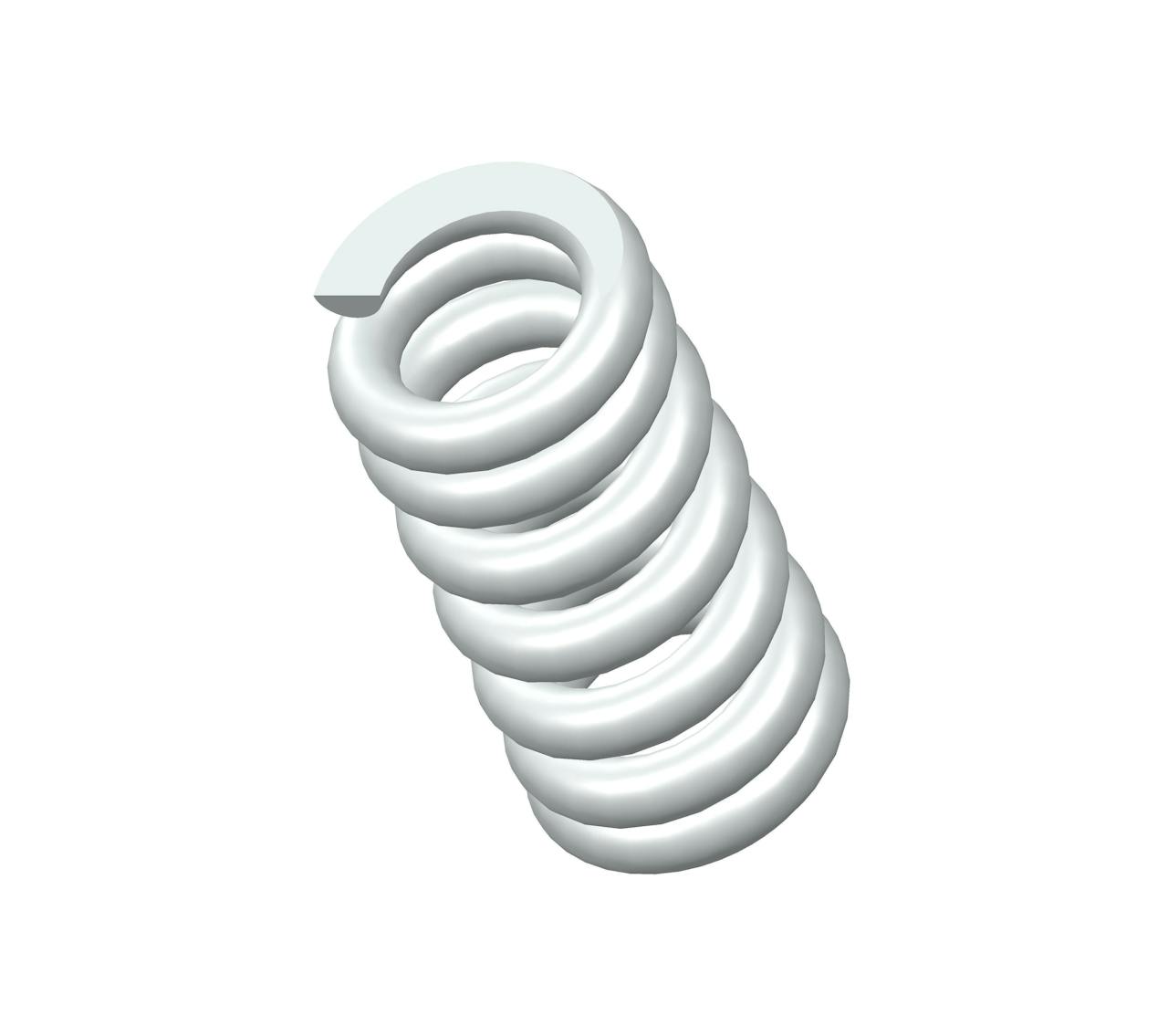

S-1175CS - 1.75" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 7 coils and closed & ground ends. This spring features an O.D. of 0.859", and an I.D. of 0.505".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1175 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.75 in |
| Inside Diameter | 0.505 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.859 in |
| Part Type | Standard |
| Rate | 774 lbs/in |
| SKU | S-1175CS |
| Solid Length | 1.24 in |
| Suggested Max Deflection | 0.21 in |
| Suggested Max Load | 159 lbf |
| Total Coils | 7 |
| Wire Diameter | 0.177 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1175 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 44.45 mm |
| Inside Diameter | 12.83 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 21.82 mm |
| Part Type | Standard |
| Rate | 135.53 N/mm |
| SKU | S-1175CS |
| Solid Length | 31.5 mm |
| Suggested Max Deflection | 5.33 mm |
| Suggested Max Load | 707.23 N |
| Total Coils | 7 |
| Wire Diameter | 4.5 mm |
The compression spring S-1175CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1175 compression spring design exhibits exceptional tensile strength and resilience.
The S-1175 design is manufactured with a free length of 1.75", with an outer diameter of 0.859", an inner diameter of 0.505", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 774 lbs/in.
The S-1175CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1175 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1175 design is manufactured with a free length of 1.75", with an outer diameter of 0.859", an inner diameter of 0.505", and a total of 7 coils, expertly designed to deliver consistent compression characteristics including a rate of 774 lbs/in.
The S-1175CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1175 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
