S-1174CS - 5.25" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

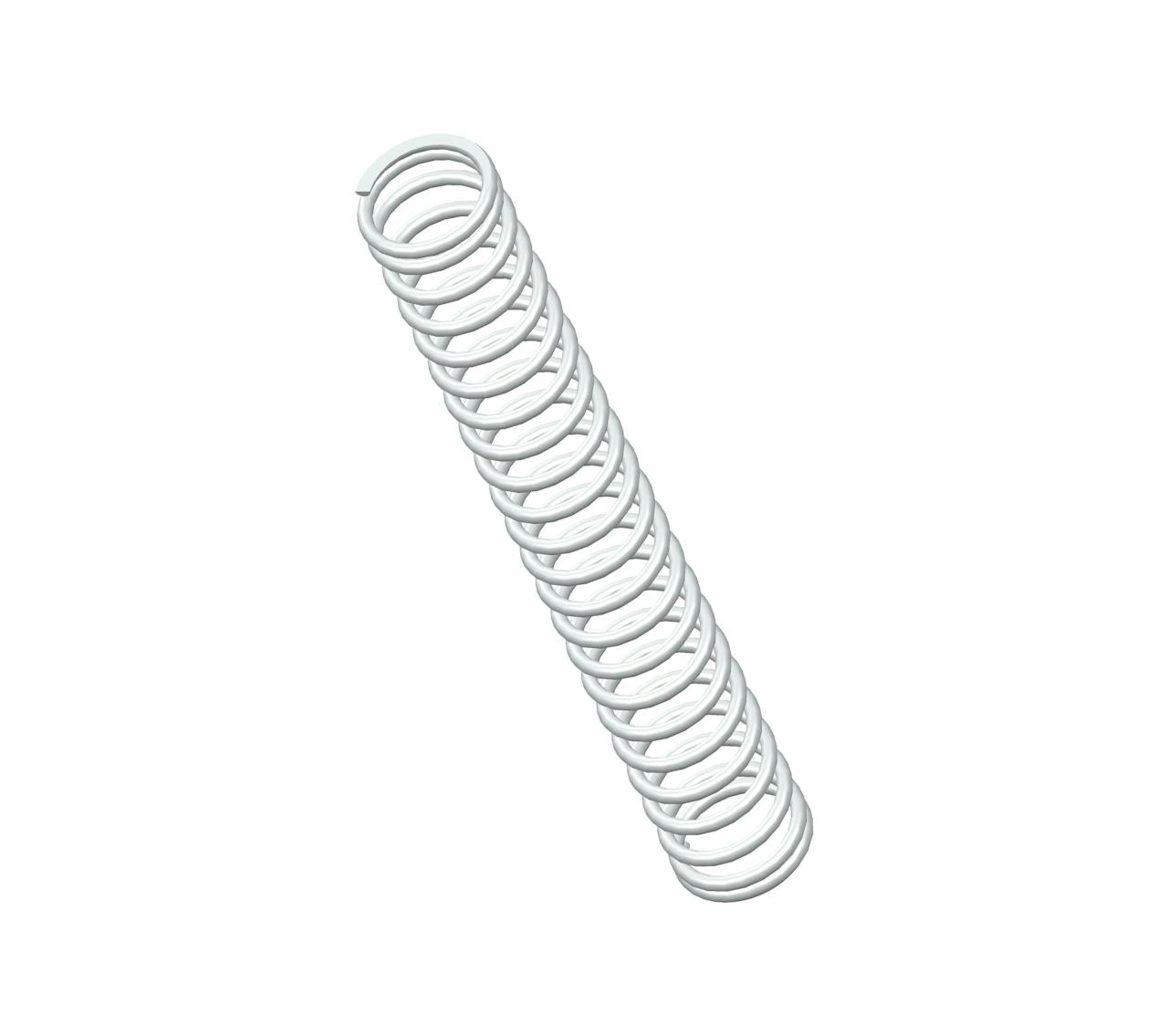

Compression spring manufactured from 302/304 stainless steel with 23 coils and closed & ground ends. This spring features an O.D. of 0.75", and an I.D. of 0.59".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1174
Ends Closed & Ground
Finish None
Free Length 5.25 in
Inside Diameter 0.59 in
Material 302/304 Stainless Steel
Outside Diameter 0.75 in
Part Type Standard
Rate 8.1 lbs/in
SKU S-1174CS
Solid Length 1.84 in
Suggested Max Deflection 2.7 in
Suggested Max Load 22 lbf
Total Coils 23
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-1174
Ends Closed & Ground
Finish None
Free Length 133.35 mm
Inside Diameter 14.99 mm
Material 302/304 Stainless Steel
Outside Diameter 19.05 mm
Part Type Standard
Rate 1.42 N/mm
SKU S-1174CS
Solid Length 46.74 mm
Suggested Max Deflection 68.58 mm
Suggested Max Load 97.86 N
Total Coils 23
Wire Diameter 2.03 mm
The S-1174CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.08" diameter 302/304 stainless steel, the S-1174 spring design exhibits reliable strength across its 23 active coils, withstanding repeated compression cycles with a maximum load of 22 lbf without succumbing to fatigue.

We manufacture the S-1174 design to provide a compression spring that is 5.25" long at rest and provides a consistent rate of 8.1 lbs/in along its recommended maximum of 2.7" deflection. For best results, your application should fully accommodate the inner (0.59") and outer (0.75") diameters of this spring and be designed for its closed & ground end configuration.
