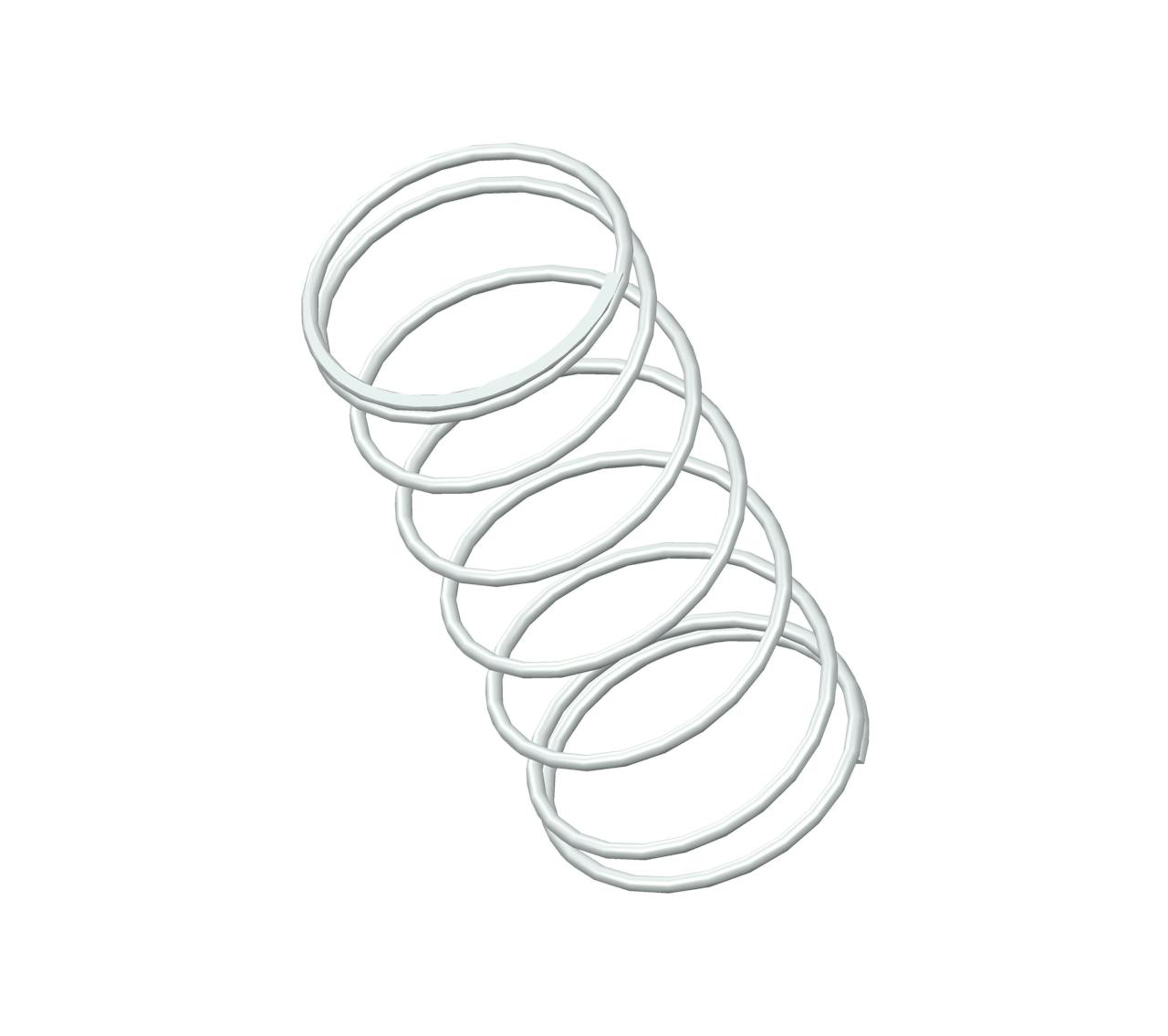

S-113CS - 5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 8 coils and closed ends. This spring features an O.D. of 2.187", and an I.D. of 1.977".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-113 |
| Ends | Closed |
| Finish | None |
| Free Length | 5 in |
| Inside Diameter | 1.977 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 2.187 in |
| Part Type | Standard |
| Rate | 2.8 lbs/in |
| SKU | S-113CS |
| Solid Length | 0.95 in |
| Suggested Max Deflection | 4.1 in |
| Suggested Max Load | 11 lbf |
| Total Coils | 8 |
| Wire Diameter | 0.105 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-113 |
| Ends | Closed |
| Finish | None |
| Free Length | 127 mm |
| Inside Diameter | 50.22 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 55.55 mm |
| Part Type | Standard |
| Rate | 0.49 N/mm |
| SKU | S-113CS |
| Solid Length | 24.13 mm |
| Suggested Max Deflection | 104.14 mm |
| Suggested Max Load | 48.93 N |
| Total Coils | 8 |
| Wire Diameter | 2.67 mm |
The compression spring S-113CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-113 compression spring design exhibits exceptional tensile strength and resilience.
The S-113 design is manufactured with a free length of 5", with an outer diameter of 2.187", an inner diameter of 1.977", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.8 lbs/in.
The S-113CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-113 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-113 design is manufactured with a free length of 5", with an outer diameter of 2.187", an inner diameter of 1.977", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 2.8 lbs/in.
The S-113CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-113 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
