S-1123CS - 1.38" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

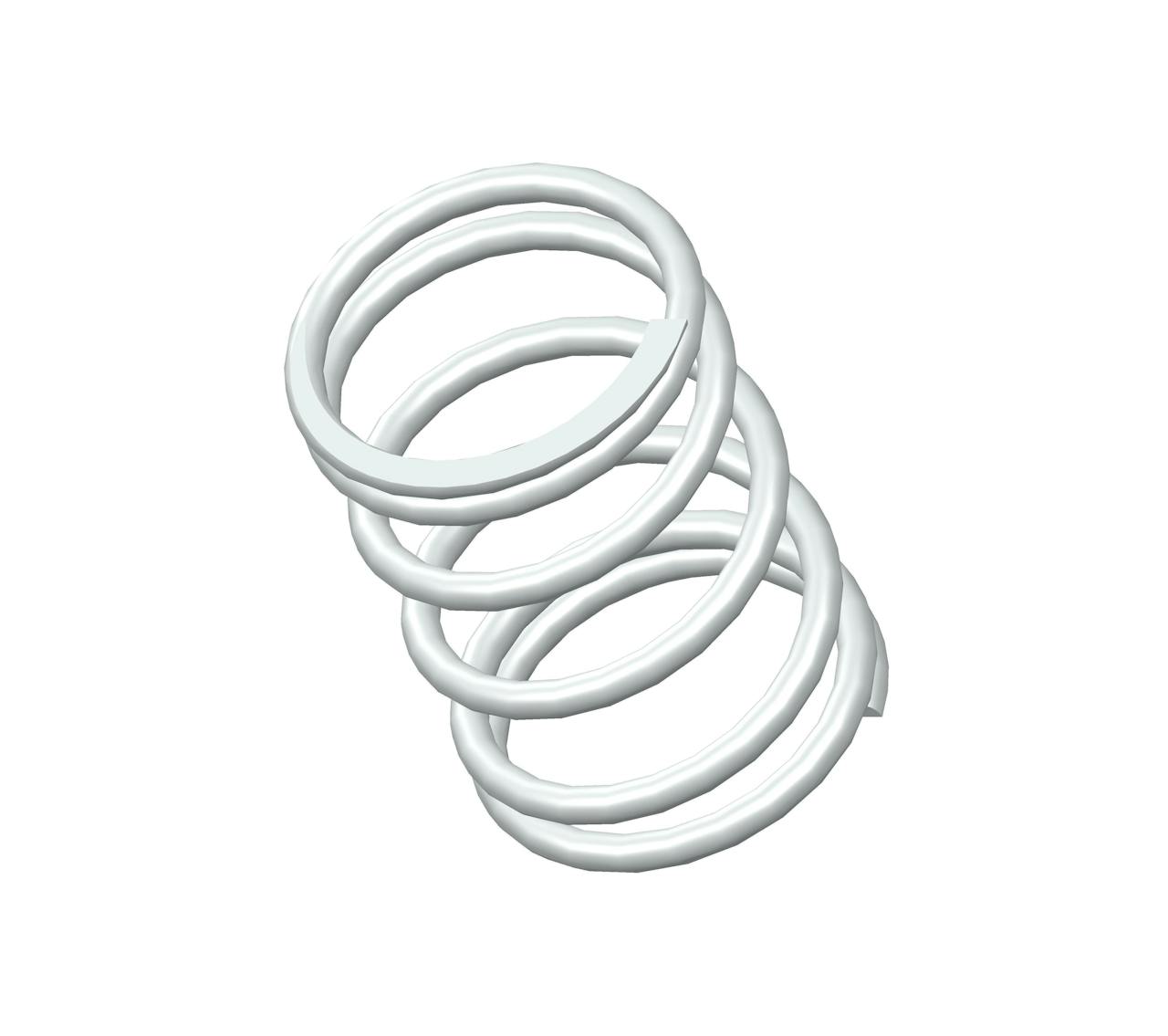

Compression spring manufactured from 302/304 stainless steel with 6 coils and closed ends. This spring features an O.D. of 0.938", and an I.D. of 0.768".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1123 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.38 in |
| Inside Diameter | 0.768 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.938 in |
| Part Type | Standard |
| Rate | 26 lbs/in |
| SKU | S-1123CS |
| Solid Length | 0.6 in |
| Suggested Max Deflection | 0.78 in |
| Suggested Max Load | 21 lbf |
| Total Coils | 6 |
| Wire Diameter | 0.085 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1123 |
| Ends | Closed |
| Finish | None |
| Free Length | 35.05 mm |
| Inside Diameter | 19.51 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 23.83 mm |
| Part Type | Standard |
| Rate | 4.55 N/mm |
| SKU | S-1123CS |
| Solid Length | 15.24 mm |
| Suggested Max Deflection | 19.81 mm |
| Suggested Max Load | 93.41 N |
| Total Coils | 6 |
| Wire Diameter | 2.16 mm |
The compression spring S-1123CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1123 compression spring design exhibits exceptional tensile strength and resilience.
The S-1123 design is manufactured with a free length of 1.38", with an outer diameter of 0.938", an inner diameter of 0.768", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 26 lbs/in.
The S-1123CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1123 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
