S-111CS - 0.75" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

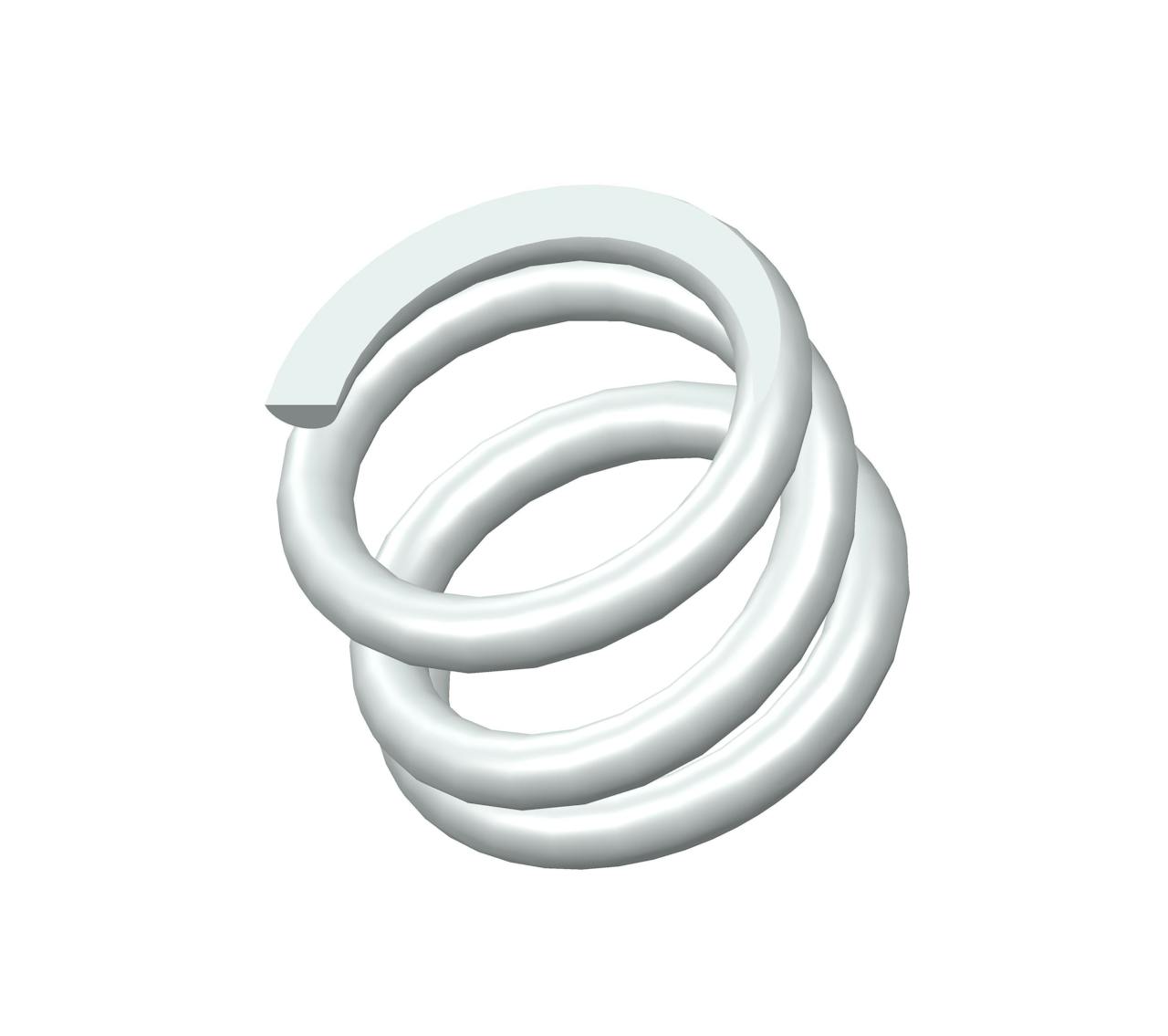

Compression spring manufactured from 302/304 stainless steel with 3 coils and closed & ground ends. This spring features an O.D. of 1.094", and an I.D. of 0.8".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-111
Ends Closed & Ground
Finish None
Free Length 0.75 in
Inside Diameter 0.8 in
Material 302/304 Stainless Steel
Outside Diameter 1.094 in
Part Type Standard
Rate 687 lbs/in
SKU S-111CS
Solid Length 0.449 in
Suggested Max Deflection 0.115 in
Suggested Max Load 79 lbf
Total Coils 3
Wire Diameter 0.148 in
The S-111CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.148" diameter 302/304 stainless steel, the S-111 spring design exhibits reliable strength across its 3 active coils, withstanding repeated compression cycles with a maximum load of 79 lbf without succumbing to fatigue.

We manufacture the S-111 design to provide a compression spring that is 0.75" long at rest and provides a consistent rate of 687 lbs/in along its recommended maximum of 0.115" deflection. For best results, your application should fully accommodate the inner (0.8") and outer (1.094") diameters of this spring and be designed for its closed & ground end configuration.
