S-1103CS - 0.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

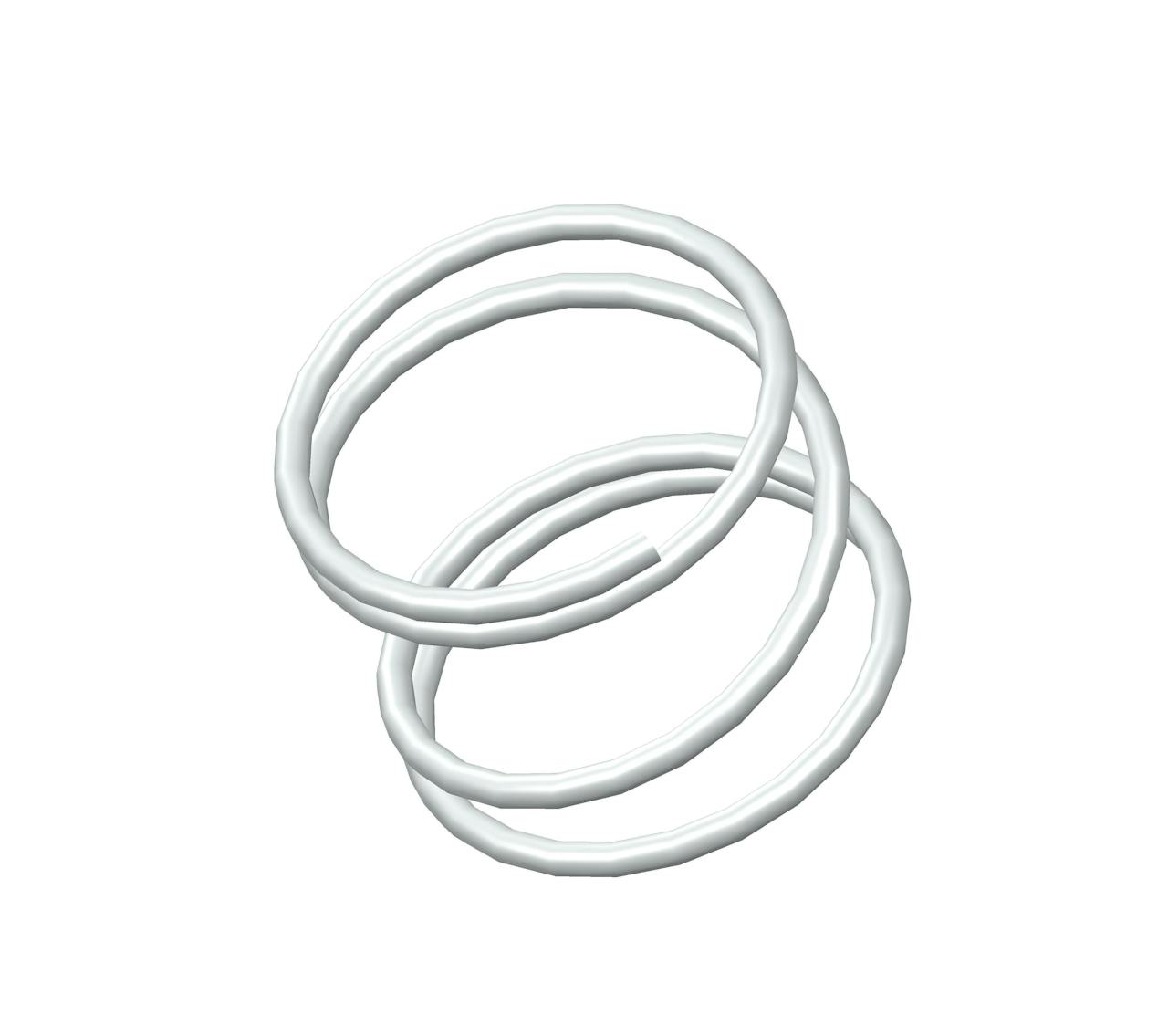

Compression spring manufactured from 302/304 stainless steel with 3.75 coils and closed ends. This spring features an O.D. of 0.578", and an I.D. of 0.502".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1103 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.5 in |
| Inside Diameter | 0.502 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.578 in |
| Part Type | Standard |
| Rate | 9.5 lbs/in |
| SKU | S-1103CS |
| Solid Length | 0.18 in |
| Suggested Max Deflection | 0.32 in |
| Suggested Max Load | 3 lbf |
| Total Coils | 3.75 |
| Wire Diameter | 0.038 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1103 |
| Ends | Closed |
| Finish | None |
| Free Length | 12.7 mm |
| Inside Diameter | 12.75 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 14.68 mm |
| Part Type | Standard |
| Rate | 1.66 N/mm |
| SKU | S-1103CS |
| Solid Length | 4.57 mm |
| Suggested Max Deflection | 8.13 mm |
| Suggested Max Load | 13.34 N |
| Total Coils | 3.75 |
| Wire Diameter | 0.97 mm |
The compression spring S-1103CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1103 compression spring design exhibits exceptional tensile strength and resilience.
The S-1103 design is manufactured with a free length of 0.5", with an outer diameter of 0.578", an inner diameter of 0.502", and a total of 3.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.5 lbs/in.
The S-1103CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1103 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1103 design is manufactured with a free length of 0.5", with an outer diameter of 0.578", an inner diameter of 0.502", and a total of 3.75 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.5 lbs/in.
The S-1103CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1103 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
