Century Spring

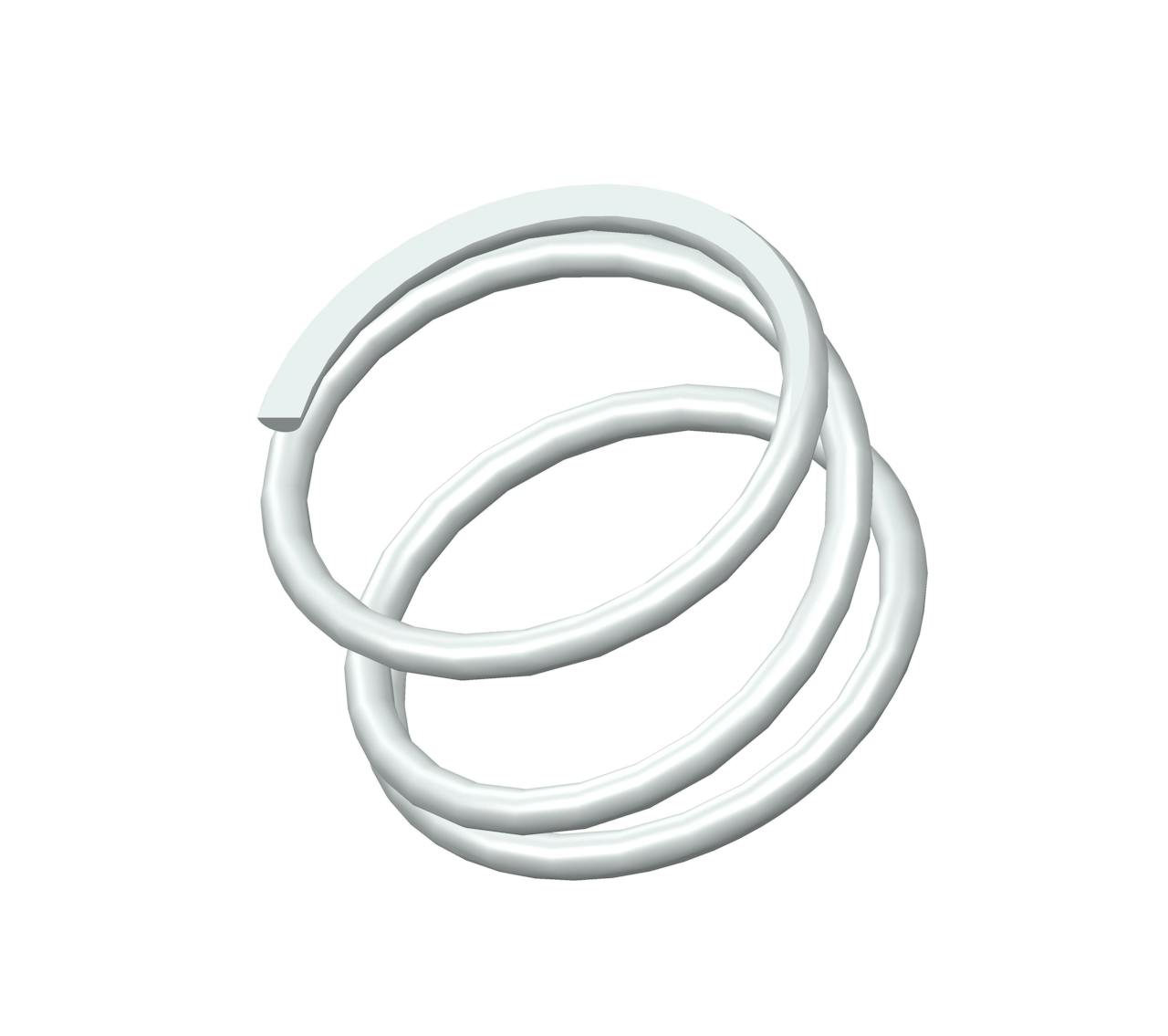

S-1084CS - 0.63" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 3 coils and closed & ground ends. This spring features an O.D. of 1.031", and an I.D. of 0.871".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name S-1084
Ends Closed & Ground
Finish None
Free Length 0.63 in
Inside Diameter 0.871 in
Material 302/304 Stainless Steel
Outside Diameter 1.031 in
Part Type Standard
Rate 60 lbs/in
SKU S-1084CS
Solid Length 0.24 in
Suggested Max Deflection 0.27 in
Suggested Max Load 16 lbf
Total Coils 3
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name S-1084
Ends Closed & Ground
Finish None
Free Length 16 mm
Inside Diameter 22.12 mm
Material 302/304 Stainless Steel
Outside Diameter 26.19 mm
Part Type Standard
Rate 10.51 N/mm
SKU S-1084CS
Solid Length 6.1 mm
Suggested Max Deflection 6.86 mm
Suggested Max Load 71.17 N
Total Coils 3
Wire Diameter 2.03 mm
The S-1084CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.08" diameter 302/304 stainless steel, the S-1084 spring design exhibits reliable strength across its 3 active coils, withstanding repeated compression cycles with a maximum load of 16 lbf without succumbing to fatigue.

We manufacture the S-1084 design to provide a compression spring that is 0.63" long at rest and provides a consistent rate of 60 lbs/in along its recommended maximum of 0.27" deflection. For best results, your application should fully accommodate the inner (0.871") and outer (1.031") diameters of this spring and be designed for its closed & ground end configuration.
