S-1066CS - 1.5" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

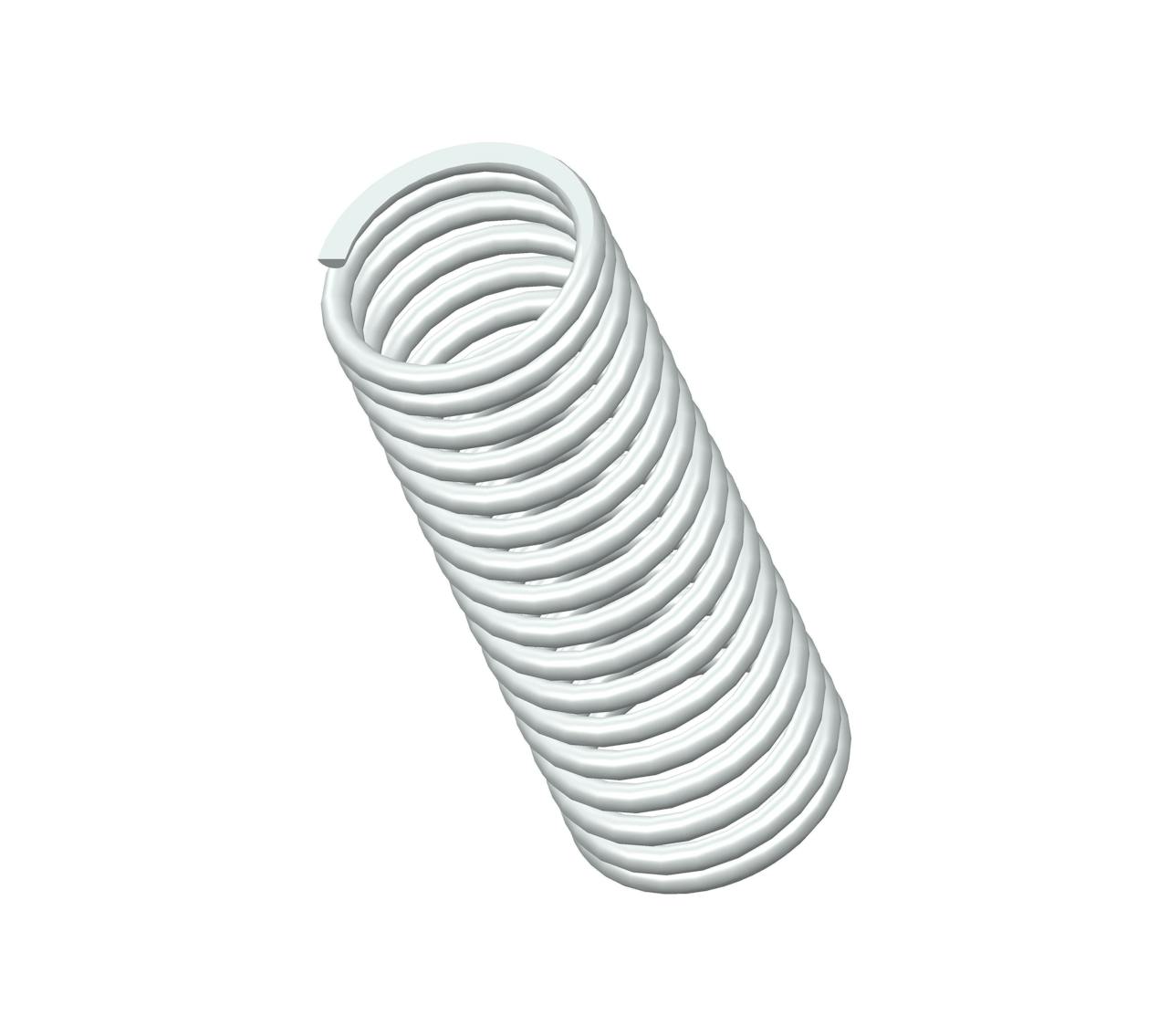

Compression spring manufactured from 302/304 stainless steel with 17 coils and closed & ground ends. This spring features an O.D. of 0.546", and an I.D. of 0.438".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1066 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.5 in |
| Inside Diameter | 0.438 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.546 in |
| Part Type | Standard |
| Rate | 5.9 lbs/in |
| SKU | S-1066CS |
| Solid Length | 0.92 in |
| Suggested Max Deflection | 0.58 in |
| Suggested Max Load | 3.5 lbf |
| Total Coils | 17 |
| Wire Diameter | 0.054 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1066 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 38.1 mm |
| Inside Diameter | 11.13 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 13.87 mm |
| Part Type | Standard |
| Rate | 1.03 N/mm |
| SKU | S-1066CS |
| Solid Length | 23.37 mm |
| Suggested Max Deflection | 14.73 mm |
| Suggested Max Load | 15.57 N |
| Total Coils | 17 |
| Wire Diameter | 1.37 mm |
The compression spring S-1066CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1066 compression spring design exhibits exceptional tensile strength and resilience.
The S-1066 design is manufactured with a free length of 1.5", with an outer diameter of 0.546", an inner diameter of 0.438", and a total of 17 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.9 lbs/in.
The S-1066CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1066 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
