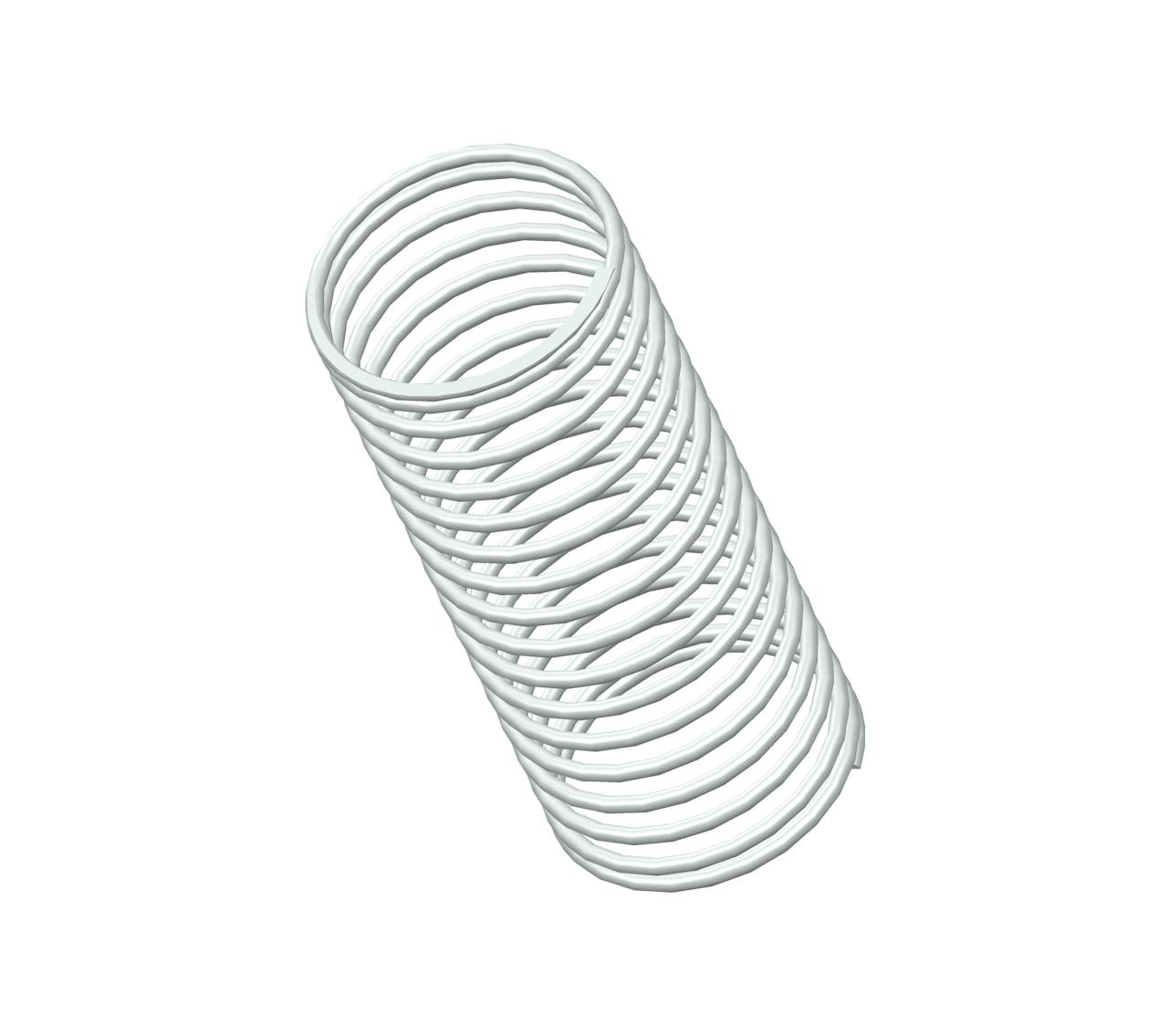

S-1032CS - 1.25" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 18 coils and closed & ground ends. This spring features an O.D. of 0.515", and an I.D. of 0.459".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1032 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.25 in |
| Inside Diameter | 0.459 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.515 in |
| Part Type | Standard |
| Rate | 0.42 lbs/in |
| SKU | S-1032CS |
| Solid Length | 0.5 in |
| Suggested Max Deflection | 0.75 in |
| Suggested Max Load | 0.31 lbf |
| Total Coils | 18 |
| Wire Diameter | 0.028 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | S-1032 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 31.75 mm |
| Inside Diameter | 11.66 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 13.08 mm |
| Part Type | Standard |
| Rate | 0.07 N/mm |
| SKU | S-1032CS |
| Solid Length | 12.7 mm |
| Suggested Max Deflection | 19.05 mm |
| Suggested Max Load | 1.38 N |
| Total Coils | 18 |
| Wire Diameter | 0.71 mm |
The compression spring S-1032CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the S-1032 compression spring design exhibits exceptional tensile strength and resilience.
The S-1032 design is manufactured with a free length of 1.25", with an outer diameter of 0.515", an inner diameter of 0.459", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.42 lbs/in.
The S-1032CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1032 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The S-1032 design is manufactured with a free length of 1.25", with an outer diameter of 0.515", an inner diameter of 0.459", and a total of 18 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.42 lbs/in.
The S-1032CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring S-1032 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
