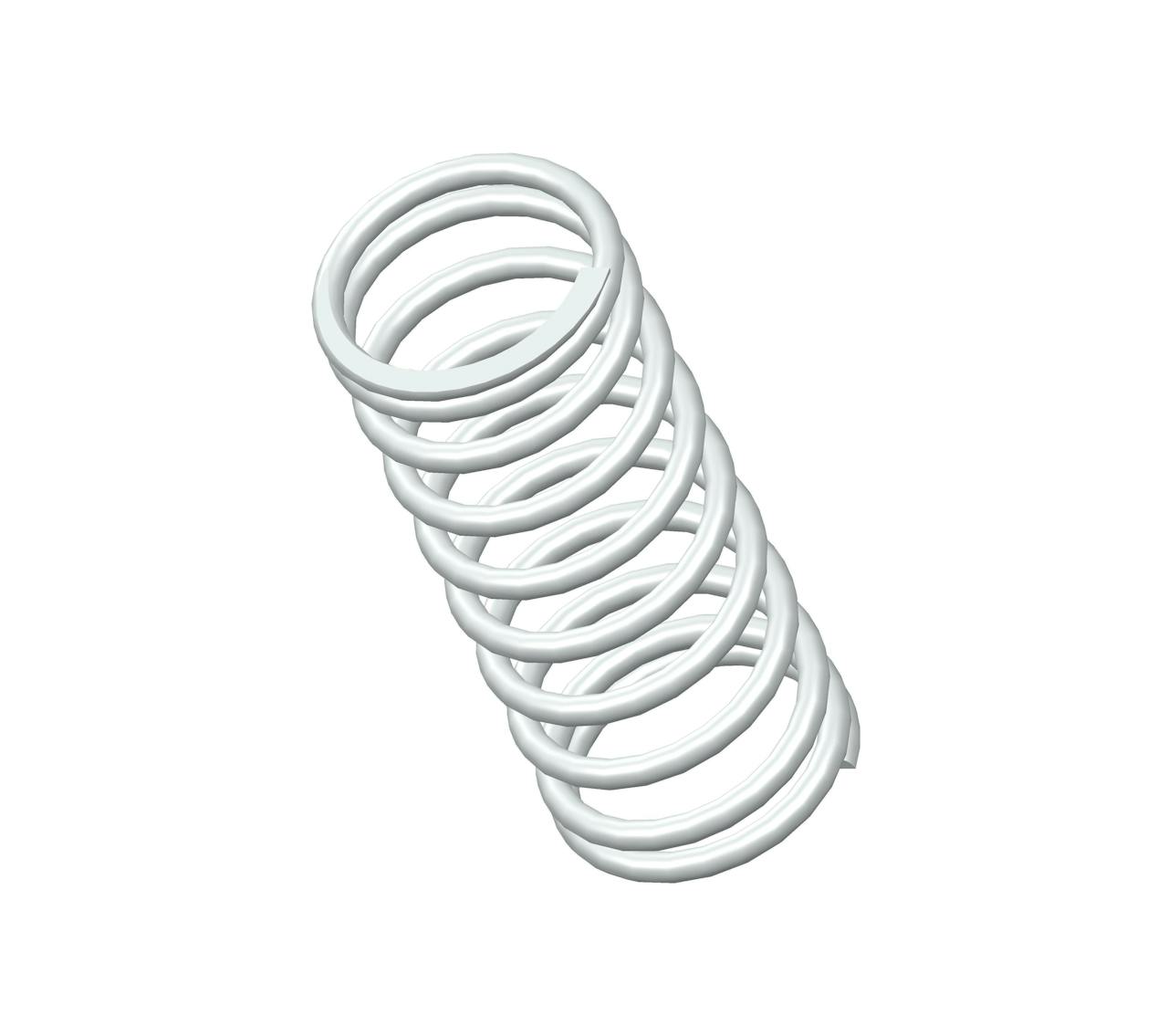

RR-70CS - 1.25" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.5", and an I.D. of 0.402".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | RR-70 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.25 in |
| Inside Diameter | 0.402 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.5 in |
| Part Type | Standard |
| Rate | 9.8 lbs/in |
| SKU | RR-70CS |
| Solid Length | 0.49 in |
| Suggested Max Deflection | 0.76 in |
| Suggested Max Load | 7.5 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.049 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | RR-70 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 31.75 mm |
| Inside Diameter | 10.21 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 12.7 mm |
| Part Type | Standard |
| Rate | 1.72 N/mm |
| SKU | RR-70CS |
| Solid Length | 12.45 mm |
| Suggested Max Deflection | 19.3 mm |
| Suggested Max Load | 33.36 N |
| Total Coils | 10 |
| Wire Diameter | 1.24 mm |
The compression spring RR-70CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the RR-70 compression spring design exhibits exceptional tensile strength and resilience.
The RR-70 design is manufactured with a free length of 1.25", with an outer diameter of 0.5", an inner diameter of 0.402", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.8 lbs/in.
The RR-70CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring RR-70 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The RR-70 design is manufactured with a free length of 1.25", with an outer diameter of 0.5", an inner diameter of 0.402", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 9.8 lbs/in.
The RR-70CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring RR-70 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
