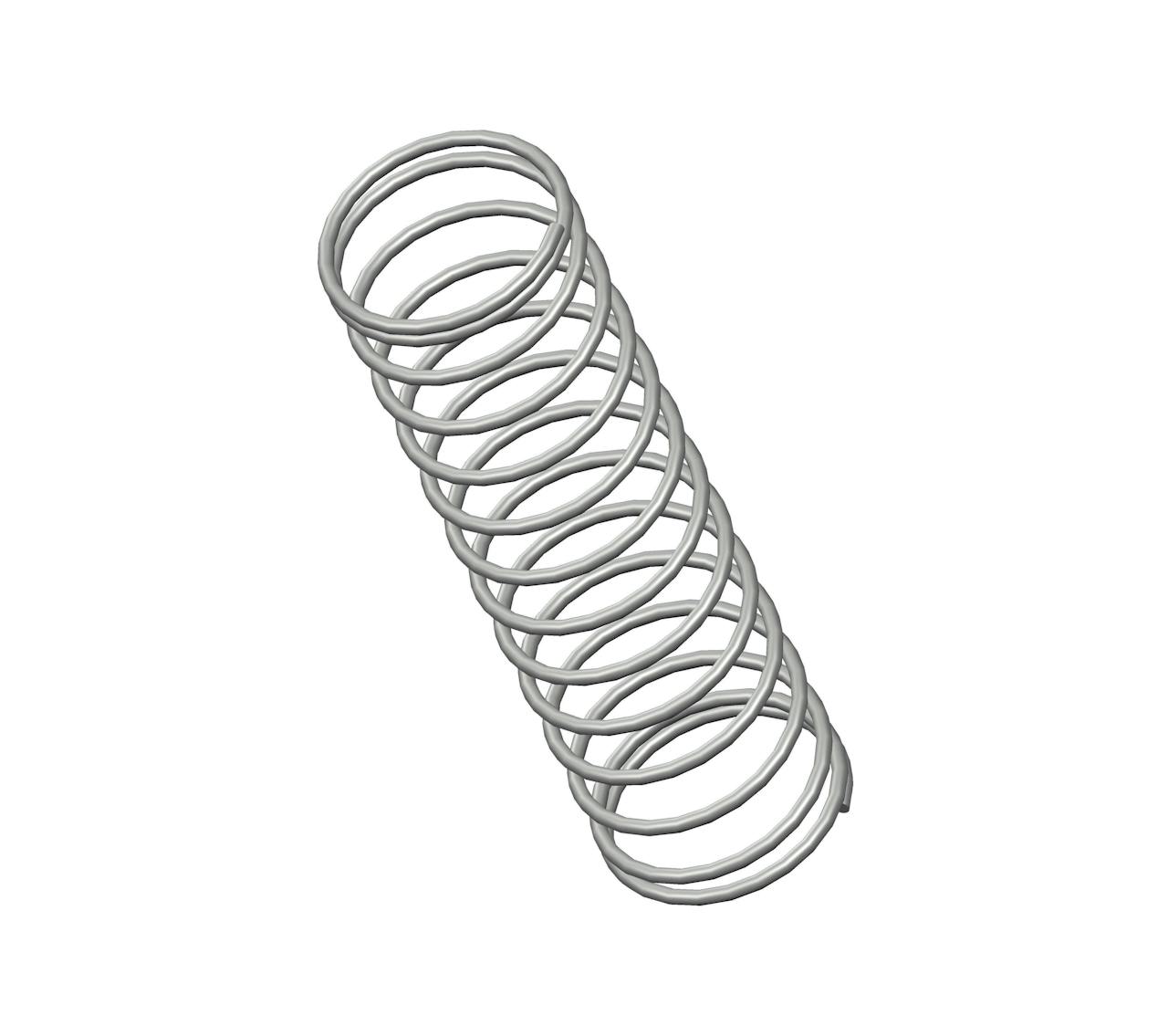

RR-40CS - 1.5" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 14 coils and closed ends. This spring features an O.D. of 0.42", and an I.D. of 0.368".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | RR-40 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 1.5 in |
| Inside Diameter | 0.368 in |
| Material | Music Wire |
| Outside Diameter | 0.42 in |
| Part Type | Standard |
| Rate | 0.89 lbs/in |
| SKU | RR-40CS |
| Solid Length | 0.39 in |
| Suggested Max Deflection | 1.1 in |
| Suggested Max Load | 0.99 lbf |
| Total Coils | 14 |
| Wire Diameter | 0.026 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | RR-40 |
| Ends | Closed |
| Finish | Zinc |
| Free Length | 38.1 mm |
| Inside Diameter | 9.35 mm |
| Material | Music Wire |
| Outside Diameter | 10.67 mm |
| Part Type | Standard |
| Rate | 0.16 N/mm |
| SKU | RR-40CS |
| Solid Length | 9.91 mm |
| Suggested Max Deflection | 27.94 mm |
| Suggested Max Load | 4.4 N |
| Total Coils | 14 |
| Wire Diameter | 0.66 mm |
The compression spring RR-40CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the RR-40 compression spring design exhibits exceptional tensile strength and resilience.
The RR-40 design is manufactured with a free length of 1.5", with an outer diameter of 0.42", an inner diameter of 0.368", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.89 lbs/in.
The RR-40CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring RR-40 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The RR-40 design is manufactured with a free length of 1.5", with an outer diameter of 0.42", an inner diameter of 0.368", and a total of 14 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.89 lbs/in.
The RR-40CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring RR-40 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
