RR-33CS - 1" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

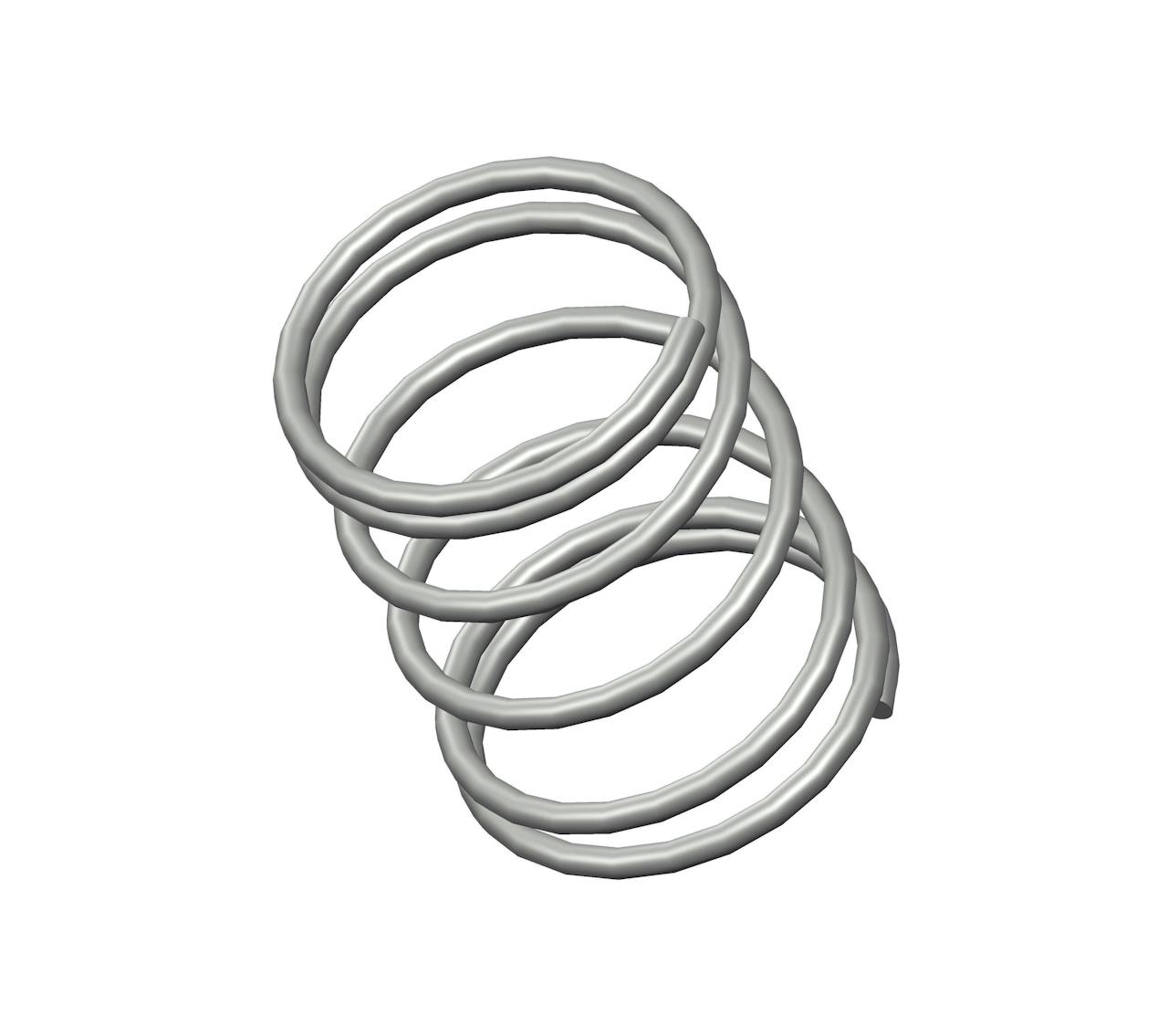

Compression spring manufactured from spring steel with 6 coils and closed ends. This spring features an O.D. of 0.718", and an I.D. of 0.618".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name RR-33
Ends Closed
Finish Zinc
Free Length 1 in
Inside Diameter 0.618 in
Material Spring Steel
Outside Diameter 0.718 in
Part Type Standard
Rate 7.5 lbs/in
SKU RR-33CS
Solid Length 0.35 in
Suggested Max Deflection 0.65 in
Suggested Max Load 4.9 lbf
Total Coils 6
Wire Diameter 0.05 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name RR-33
Ends Closed
Finish Zinc
Free Length 25.4 mm
Inside Diameter 15.7 mm
Material Spring Steel
Outside Diameter 18.24 mm
Part Type Standard
Rate 1.31 N/mm
SKU RR-33CS
Solid Length 8.89 mm
Suggested Max Deflection 16.51 mm
Suggested Max Load 21.8 N
Total Coils 6
Wire Diameter 1.27 mm
The compression spring RR-33CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the RR-33 compression spring design exhibits exceptional tensile strength and resilience.

The RR-33 design is manufactured with a free length of 1", with an outer diameter of 0.718", an inner diameter of 0.618", and a total of 6 coils, expertly designed to deliver consistent compression characteristics including a rate of 7.5 lbs/in.

The RR-33CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring RR-33 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
