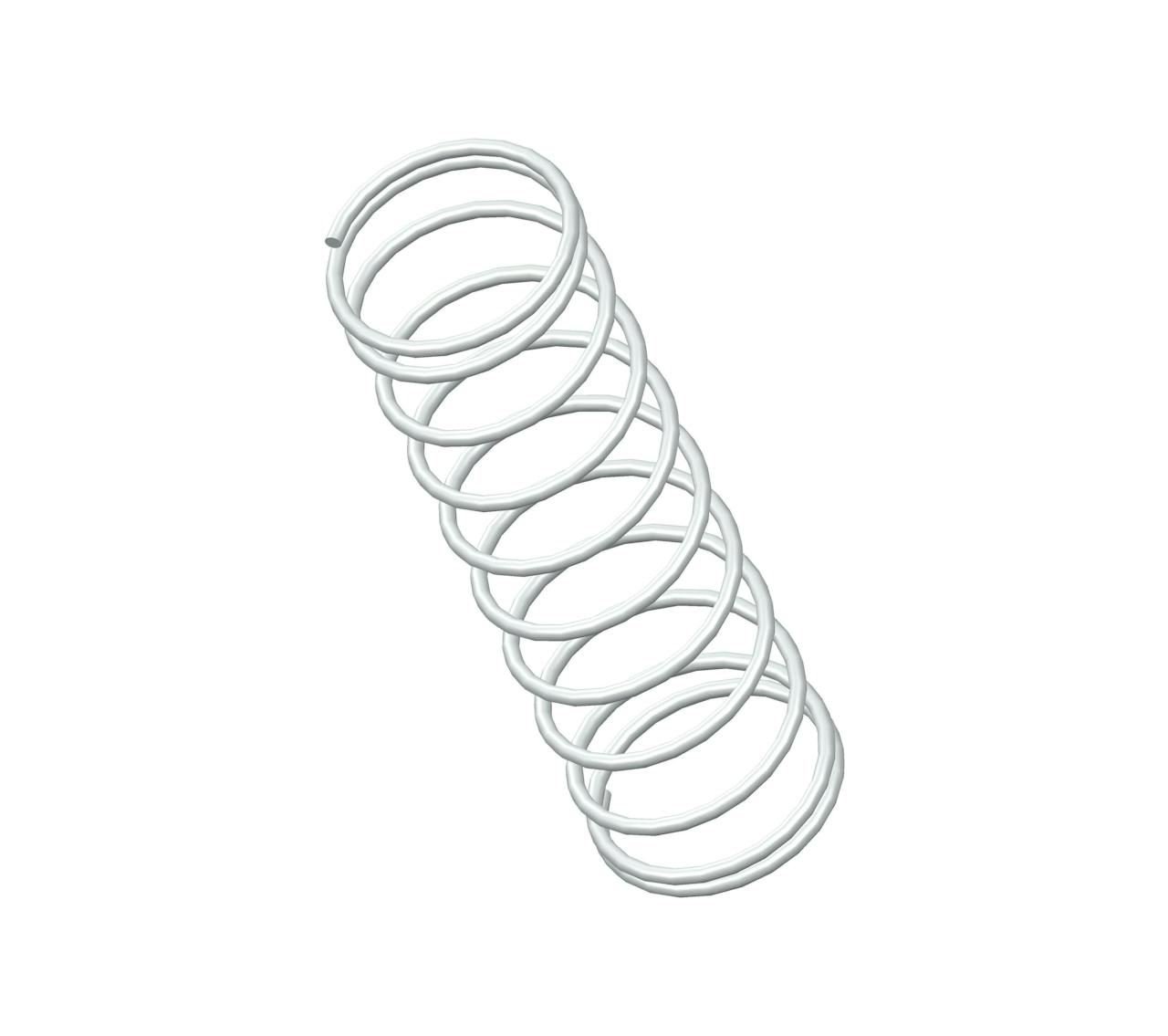

RR-13CS - 0.63" 302/304 Stainless Steel Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|
Compression spring manufactured from 302/304 stainless steel with 11 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.164".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | RR-13 |
| Ends | Closed |
| Finish | None |
| Free Length | 0.63 in |
| Inside Diameter | 0.164 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 0.54 lbs/in |
| SKU | RR-13CS |
| Solid Length | 0.14 in |
| Suggested Max Deflection | 0.48 in |
| Suggested Max Load | 0.26 lbf |
| Total Coils | 11 |
| Wire Diameter | 0.012 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | RR-13 |
| Ends | Closed |
| Finish | None |
| Free Length | 16 mm |
| Inside Diameter | 4.17 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 0.09 N/mm |
| SKU | RR-13CS |
| Solid Length | 3.56 mm |
| Suggested Max Deflection | 12.19 mm |
| Suggested Max Load | 1.16 N |
| Total Coils | 11 |
| Wire Diameter | 0.3 mm |
The compression spring RR-13CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the RR-13 compression spring design exhibits exceptional tensile strength and resilience.
The RR-13 design is manufactured with a free length of 0.63", with an outer diameter of 0.188", an inner diameter of 0.164", and a total of 11 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.54 lbs/in.
The RR-13CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring RR-13 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The RR-13 design is manufactured with a free length of 0.63", with an outer diameter of 0.188", an inner diameter of 0.164", and a total of 11 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.54 lbs/in.
The RR-13CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring RR-13 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
