Century Spring

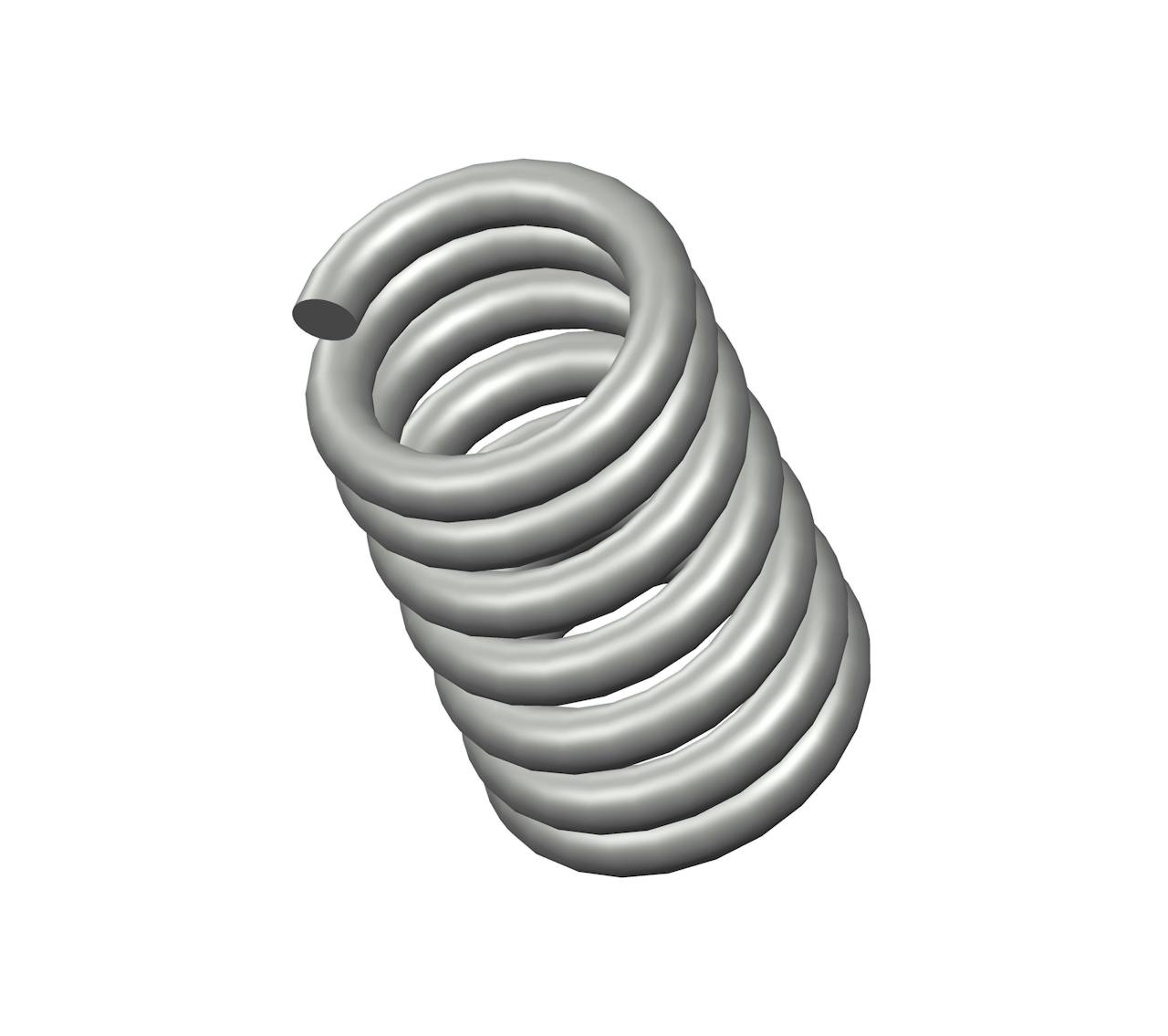

RR-12CS - 0.63" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 7 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.255".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name RR-12
Ends Closed
Finish None
Free Length 0.63 in
Inside Diameter 0.255 in
Material Music Wire
Outside Diameter 0.375 in
Part Type Standard
Rate 119 lbs/in
SKU RR-12CS
Solid Length 0.48 in
Suggested Max Deflection 0.15 in
Suggested Max Load 17 lbf
Total Coils 7
Wire Diameter 0.06 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name RR-12
Ends Closed
Finish None
Free Length 16 mm
Inside Diameter 6.48 mm
Material Music Wire
Outside Diameter 9.53 mm
Part Type Standard
Rate 20.84 N/mm
SKU RR-12CS
Solid Length 12.19 mm
Suggested Max Deflection 3.81 mm
Suggested Max Load 75.62 N
Total Coils 7
Wire Diameter 1.52 mm
The RR-12CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.06" diameter music wire, the RR-12 spring design exhibits reliable strength across its 7 active coils, withstanding repeated compression cycles with a maximum load of 17 lbf without succumbing to fatigue.

We manufacture the RR-12 design to provide a compression spring that is 0.63" long at rest and provides a consistent rate of 119 lbs/in along its recommended maximum of 0.15" deflection. For best results, your application should fully accommodate the inner (0.255") and outer (0.375") diameters of this spring and be designed for its closed end configuration.
