Century Spring

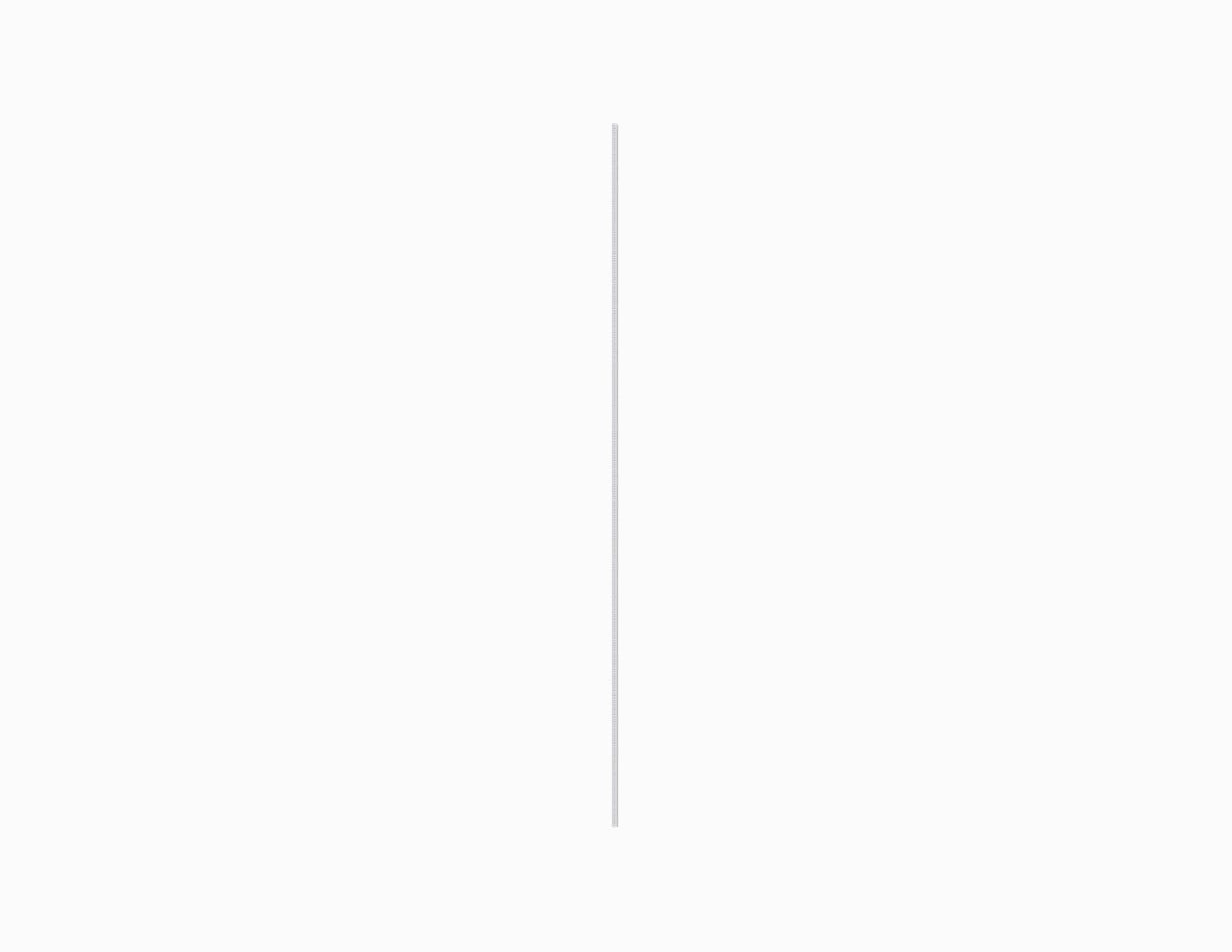

R-7CS - 0.25 Inch O.D. Long Compression Spring

Inventory Status
Estimated Lead Time

Long-length compression spring in Carbon Steel. This spring features an O.D. of 0.25 Inch, and an I.D. of 0.204 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name R-7
Finish None
Inside Diameter 0.204 in
Length 36 in
Material Carbon Steel
Measurement Units Standard
Outside Diameter 0.25 in
Pitch 0.083 in
Product Image R_7CS
Rate 2.9004 lbs/in
Rate Constant 0.2417 lbf
SKU R-7CS
Solid Length Constant 0.3 in
Solid Length Per 0.3 lb
Suggested Max Load 2 lbf
Wire Diameter 0.023 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name R-7
Finish None
Inside Diameter 5.18 mm
Length 914.4 mm
Material Carbon Steel
Measurement Units Standard
Outside Diameter 6.35 mm
Pitch 2.11 mm
Product Image R_7CS
Rate 0.51 N-mm
Rate Constant 42.33 N
SKU R-7CS
Solid Length Constant 7.62 mm
Solid Length Per 0.14 kg
Suggested Max Load 8.9 N
Wire Diameter 0.58 mm
