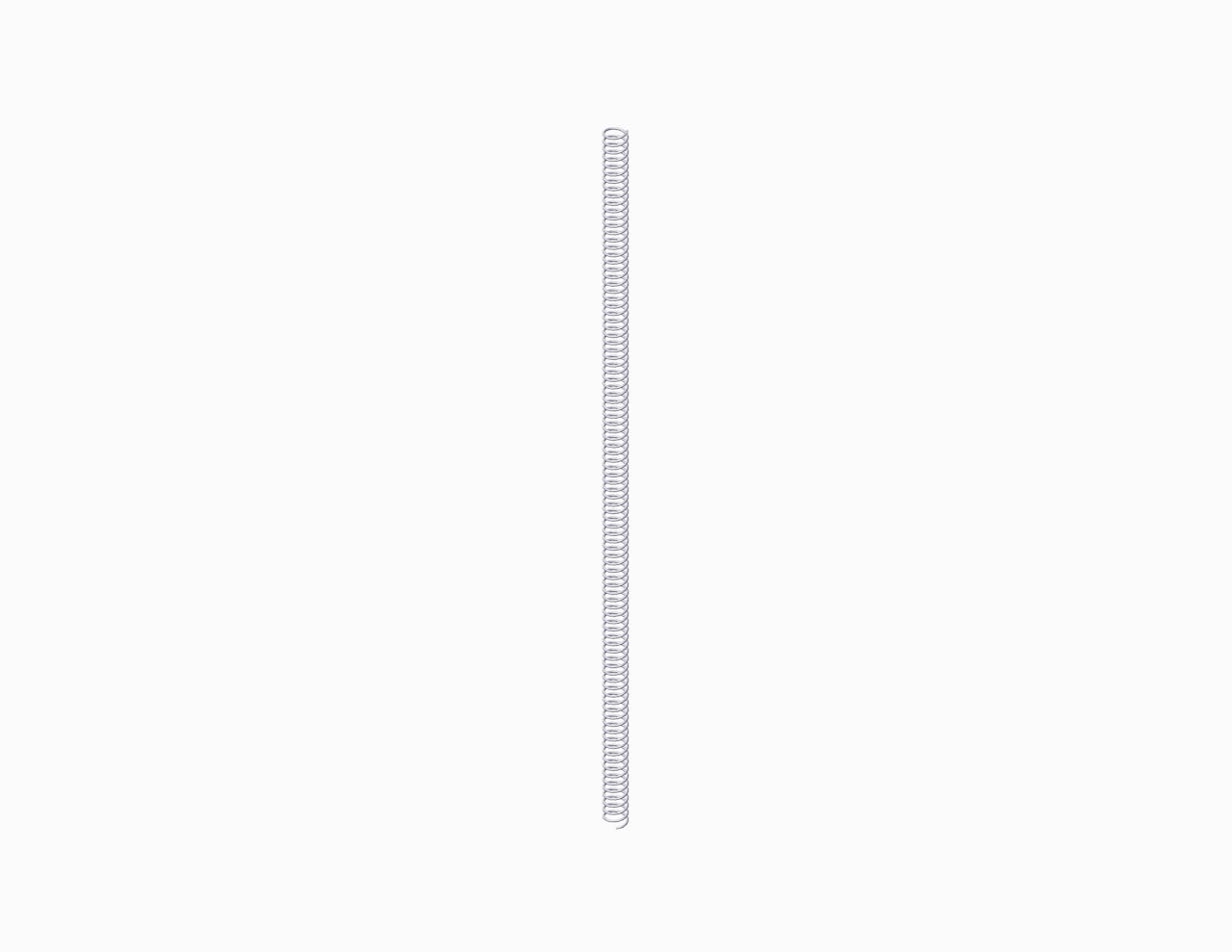

R-27 - 1.125 Inch O.D. Long Compression Spring

Inventory:
Estimated Lead Time

Long-length compression spring in Carbon Steel. This spring features an O.D. of 1.125 Inch, and an I.D. of 0.914 Inch.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name R-27
Finish None
Inside Diameter 0.914 in
Length 36 in
Material Carbon Steel
Measurement Units Standard
Outside Diameter 1.125 in
Pitch 0.382 in
Product Image R_27CS
Rate 65.4996 lbs/in
Rate Constant 5.4583 lbf
SKU R-27CS
Solid Length Constant 0.35 in
Solid Length Per 0.35 lb
Suggested Max Load 34 lbf
Wire Diameter 0.106 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name R-27
Finish None
Inside Diameter 23.22 mm
Length 914.4 mm
Material Carbon Steel
Measurement Units Standard
Outside Diameter 28.58 mm
Pitch 9.7 mm
Product Image R_27CS
Rate 11.47 N-mm
Rate Constant 955.9 N
SKU R-27CS
Solid Length Constant 8.89 mm
Solid Length Per 0.16 kg
Suggested Max Load 151.23 N
Wire Diameter 2.69 mm
