QQ-7CS - 0.69" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

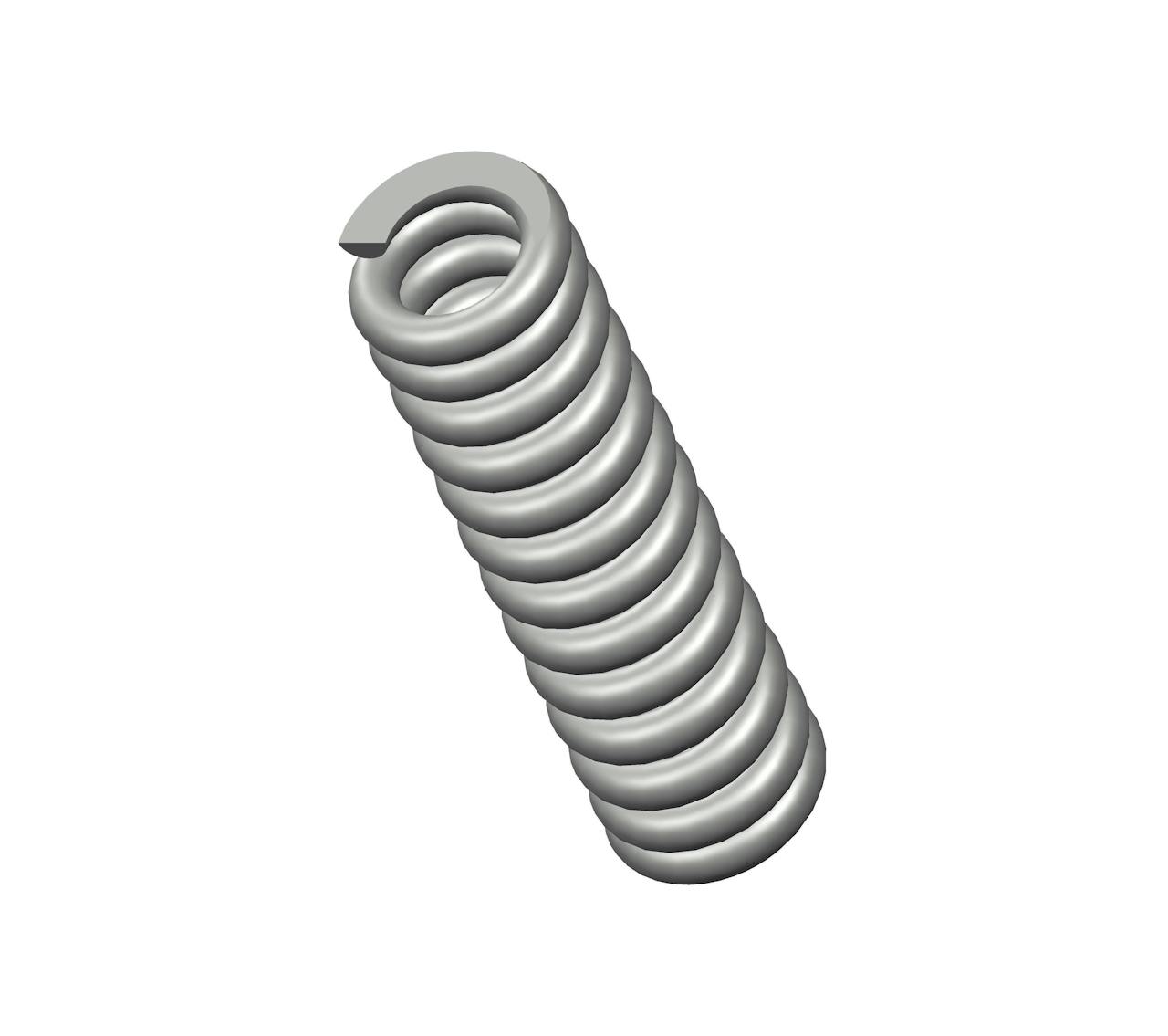

Compression spring manufactured from spring steel with 13 coils and closed & ground ends. This spring features an O.D. of 0.188", and an I.D. of 0.108".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | QQ-7 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.69 in |
| Inside Diameter | 0.108 in |
| Material | Spring Steel |
| Outside Diameter | 0.188 in |
| Part Type | Standard |
| Rate | 105 lbs/in |
| SKU | QQ-7CS |
| Solid Length | 0.52 in |
| Suggested Max Deflection | 0.11 in |
| Suggested Max Load | 12 lbf |
| Total Coils | 13 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | QQ-7 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 17.53 mm |
| Inside Diameter | 2.74 mm |
| Material | Spring Steel |
| Outside Diameter | 4.78 mm |
| Part Type | Standard |
| Rate | 18.39 N/mm |
| SKU | QQ-7CS |
| Solid Length | 13.21 mm |
| Suggested Max Deflection | 2.79 mm |
| Suggested Max Load | 53.38 N |
| Total Coils | 13 |
| Wire Diameter | 1.02 mm |
The compression spring QQ-7CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the QQ-7 compression spring design exhibits exceptional tensile strength and resilience.
The QQ-7 design is manufactured with a free length of 0.69", with an outer diameter of 0.188", an inner diameter of 0.108", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 105 lbs/in.
The QQ-7CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring QQ-7 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The QQ-7 design is manufactured with a free length of 0.69", with an outer diameter of 0.188", an inner diameter of 0.108", and a total of 13 coils, expertly designed to deliver consistent compression characteristics including a rate of 105 lbs/in.
The QQ-7CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring QQ-7 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
