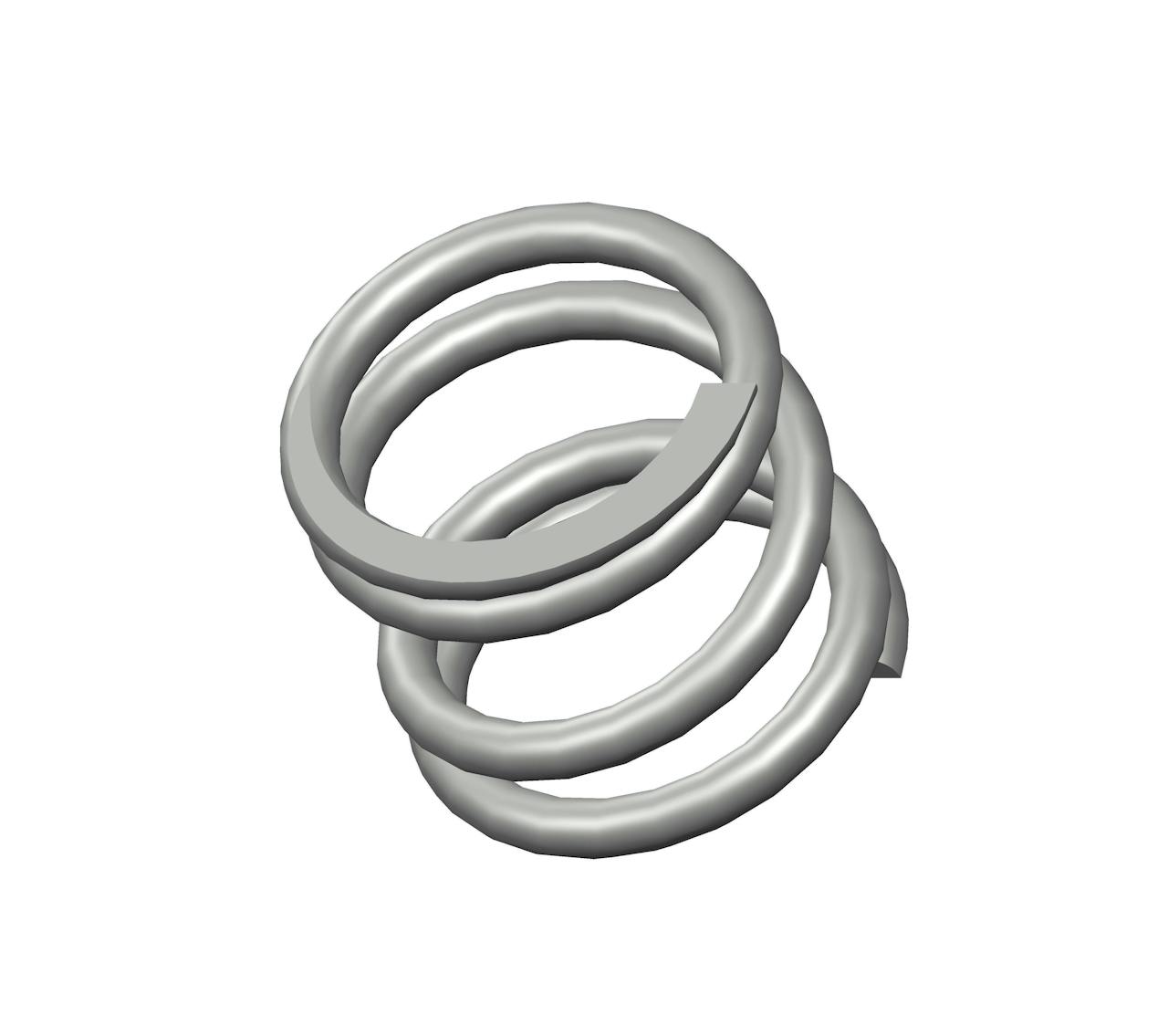

QQ-43CS - 0.63" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 4 coils and closed & ground ends. This spring features an O.D. of 0.687", and an I.D. of 0.527".
NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | QQ-43 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 0.63 in |
| Inside Diameter | 0.527 in |
| Material | Spring Steel |
| Outside Diameter | 0.687 in |
| Part Type | Standard |
| Rate | 132 lbs/in |
| SKU | QQ-43CS |
| Solid Length | 0.32 in |
| Suggested Max Deflection | 0.19 in |
| Suggested Max Load | 25 lbf |
| Total Coils | 4 |
| Wire Diameter | 0.08 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | QQ-43 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 16 mm |
| Inside Diameter | 13.39 mm |
| Material | Spring Steel |
| Outside Diameter | 17.45 mm |
| Part Type | Standard |
| Rate | 23.11 N/mm |
| SKU | QQ-43CS |
| Solid Length | 8.13 mm |
| Suggested Max Deflection | 4.83 mm |
| Suggested Max Load | 111.2 N |
| Total Coils | 4 |
| Wire Diameter | 2.03 mm |
The compression spring QQ-43CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the QQ-43 compression spring design exhibits exceptional tensile strength and resilience.
The QQ-43 design is manufactured with a free length of 0.63", with an outer diameter of 0.687", an inner diameter of 0.527", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 132 lbs/in.
The QQ-43CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring QQ-43 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The QQ-43 design is manufactured with a free length of 0.63", with an outer diameter of 0.687", an inner diameter of 0.527", and a total of 4 coils, expertly designed to deliver consistent compression characteristics including a rate of 132 lbs/in.
The QQ-43CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring QQ-43 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
