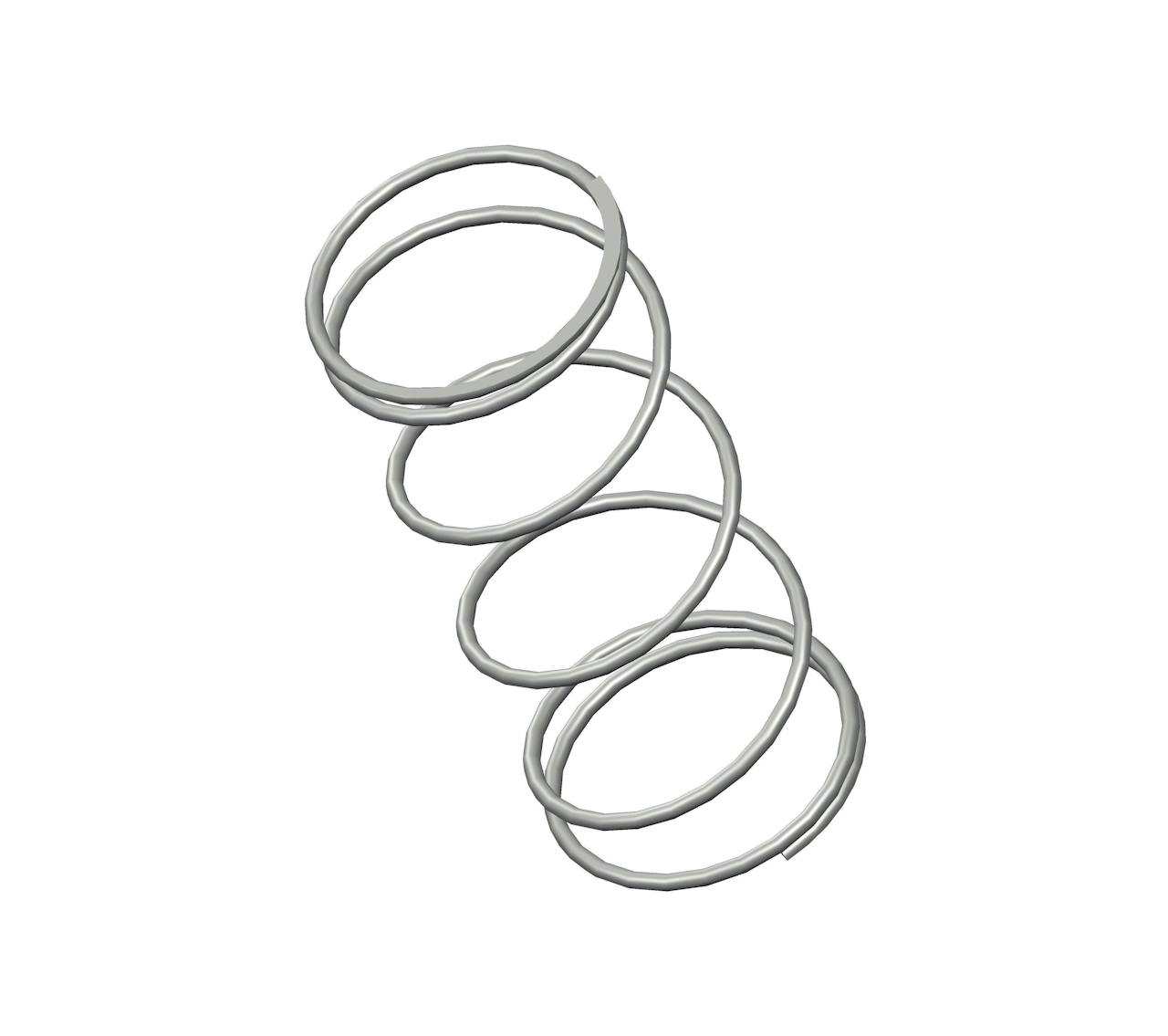

Q-9CS - 1.53" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

Compression spring manufactured from spring steel with 6.25 coils and closed & ground ends. This spring features an O.D. of 0.64", and an I.D. of 0.572".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name Q-9
Ends Closed & Ground
Finish Zinc
Free Length 1.53 in
Inside Diameter 0.572 in
Material Spring Steel
Outside Diameter 0.64 in
Part Type Standard
Rate 2 lbs/in
SKU Q-9CS
Solid Length 0.21 in
Suggested Max Deflection 1.2 in
Suggested Max Load 2.5 lbf
Total Coils 6.25
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name Q-9
Ends Closed & Ground
Finish Zinc
Free Length 38.86 mm
Inside Diameter 14.53 mm
Material Spring Steel
Outside Diameter 16.26 mm
Part Type Standard
Rate 0.35 N/mm
SKU Q-9CS
Solid Length 5.33 mm
Suggested Max Deflection 30.48 mm
Suggested Max Load 11.12 N
Total Coils 6.25
Wire Diameter 0.86 mm
The compression spring Q-9CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the Q-9 compression spring design exhibits exceptional tensile strength and resilience.

The Q-9 design is manufactured with a free length of 1.53", with an outer diameter of 0.64", an inner diameter of 0.572", and a total of 6.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 2 lbs/in.

The Q-9CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring Q-9 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
