Q-47CS - 1.59" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

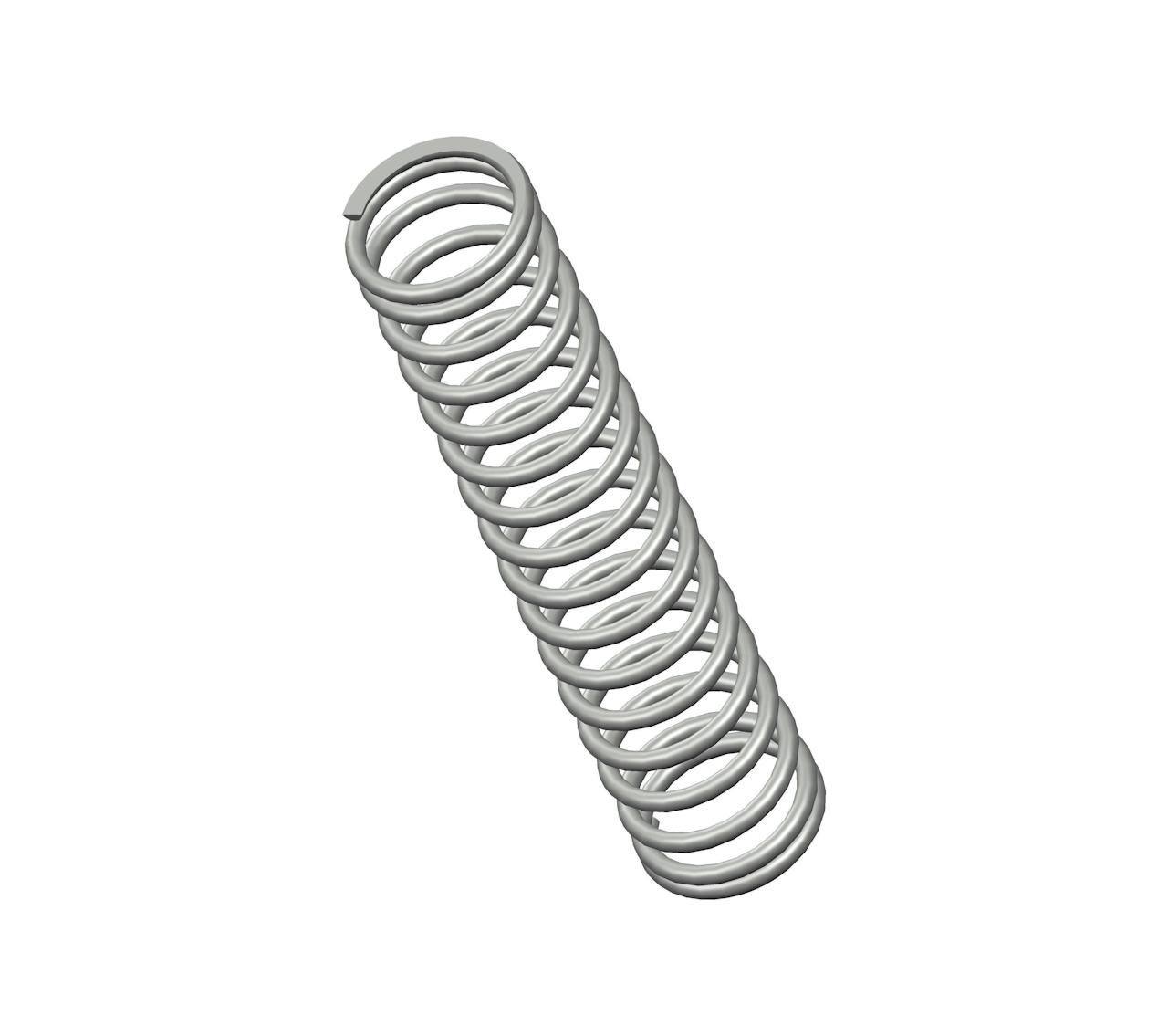

Compression spring manufactured from spring steel with 17 coils and closed & ground ends. This spring features an O.D. of 0.328", and an I.D. of 0.26".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name Q-47
Ends Closed & Ground
Finish None
Free Length 1.59 in
Inside Diameter 0.26 in
Material Spring Steel
Outside Diameter 0.328 in
Part Type Standard
Rate 5 lbs/in
SKU Q-47CS
Solid Length 0.58 in
Suggested Max Deflection 0.96 in
Suggested Max Load 4.8 lbf
Total Coils 17
Wire Diameter 0.034 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name Q-47
Ends Closed & Ground
Finish None
Free Length 40.39 mm
Inside Diameter 6.6 mm
Material Spring Steel
Outside Diameter 8.33 mm
Part Type Standard
Rate 0.88 N/mm
SKU Q-47CS
Solid Length 14.73 mm
Suggested Max Deflection 24.38 mm
Suggested Max Load 21.35 N
Total Coils 17
Wire Diameter 0.86 mm
The Q-47 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The Q-47CS compression spring is designed with a free length of 1.44" total of 18 coils, and a rate of 4.3 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The Q-47 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
