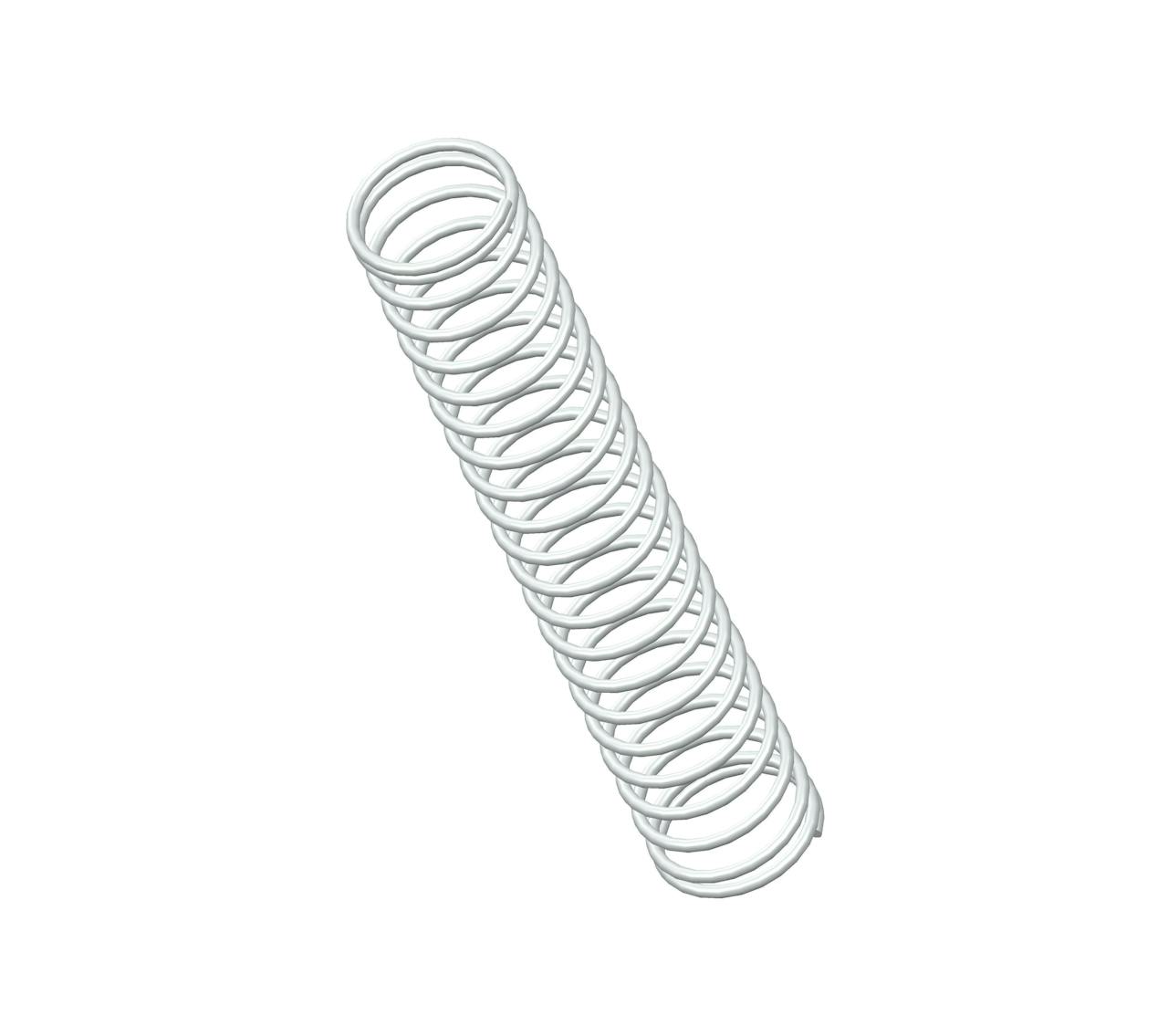

Q-36CS - 1.88" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 22 coils and closed ends. This spring features an O.D. of 0.328", and an I.D. of 0.278".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | Q-36 |
| Ends | Closed |
| Finish | None |
| Free Length | 1.88 in |
| Inside Diameter | 0.278 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.328 in |
| Part Type | Standard |
| Rate | 0.88 lbs/in |
| SKU | Q-36CS |
| Solid Length | 0.55 in |
| Suggested Max Deflection | 1.3 in |
| Suggested Max Load | 1.2 lbf |
| Total Coils | 22 |
| Wire Diameter | 0.025 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | Q-36 |
| Ends | Closed |
| Finish | None |
| Free Length | 47.75 mm |
| Inside Diameter | 7.06 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 8.33 mm |
| Part Type | Standard |
| Rate | 0.15 N/mm |
| SKU | Q-36CS |
| Solid Length | 13.97 mm |
| Suggested Max Deflection | 33.02 mm |
| Suggested Max Load | 5.34 N |
| Total Coils | 22 |
| Wire Diameter | 0.64 mm |
The compression spring Q-36CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the Q-36 compression spring design exhibits exceptional tensile strength and resilience.
The Q-36 design is manufactured with a free length of 1.88", with an outer diameter of 0.328", an inner diameter of 0.278", and a total of 22 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.88 lbs/in.
The Q-36CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring Q-36 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The Q-36 design is manufactured with a free length of 1.88", with an outer diameter of 0.328", an inner diameter of 0.278", and a total of 22 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.88 lbs/in.
The Q-36CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring Q-36 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
