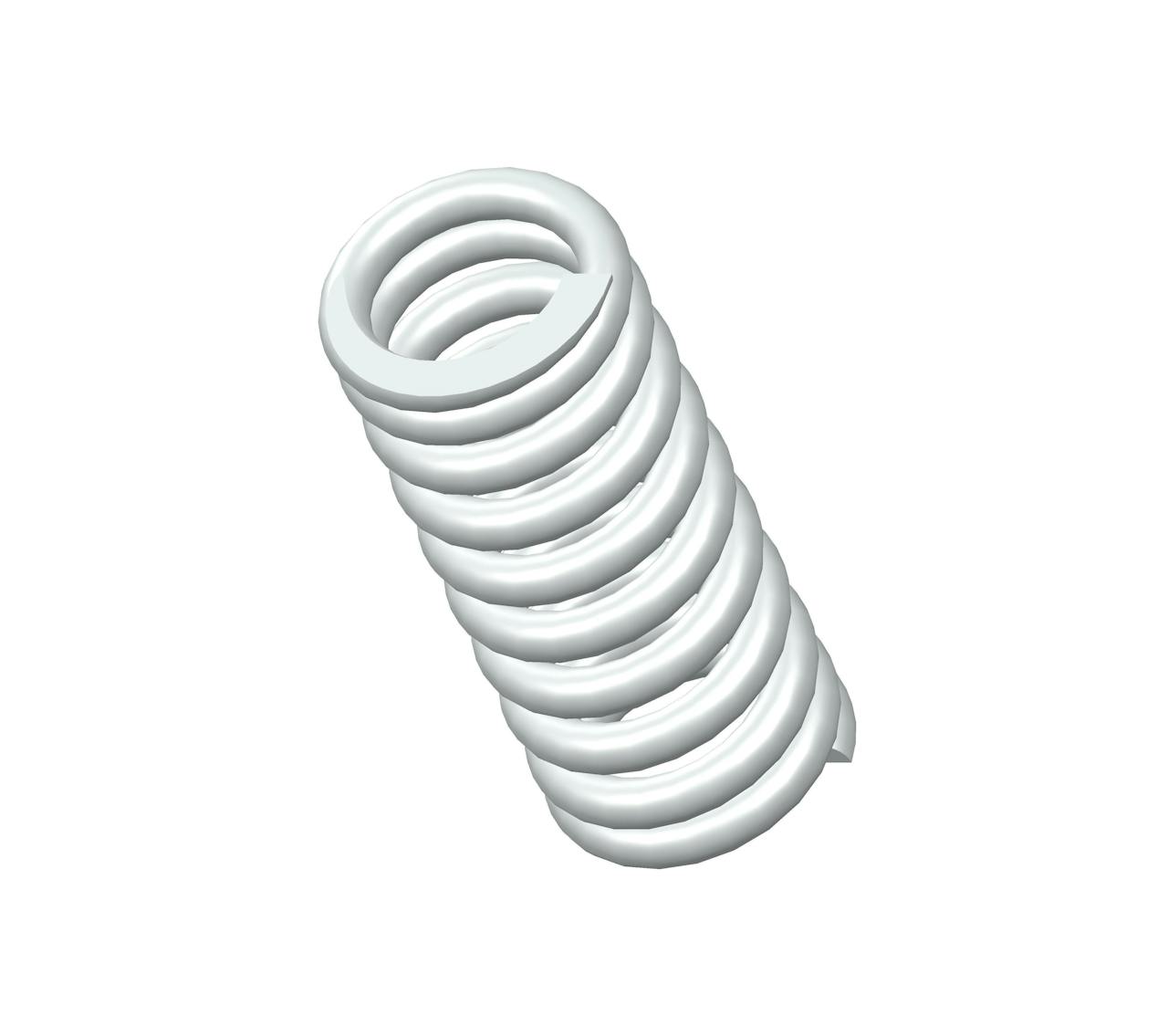

Q-29CS - 1.38" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10 coils and closed & ground ends. This spring features an O.D. of 0.562", and an I.D. of 0.378".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | Q-29 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.38 in |
| Inside Diameter | 0.378 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.562 in |
| Part Type | Standard |
| Rate | 108 lbs/in |
| SKU | Q-29CS |
| Solid Length | 0.92 in |
| Suggested Max Deflection | 0.37 in |
| Suggested Max Load | 40 lbf |
| Total Coils | 10 |
| Wire Diameter | 0.092 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | Q-29 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 35.05 mm |
| Inside Diameter | 9.6 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 14.27 mm |
| Part Type | Standard |
| Rate | 18.91 N/mm |
| SKU | Q-29CS |
| Solid Length | 23.37 mm |
| Suggested Max Deflection | 9.4 mm |
| Suggested Max Load | 177.92 N |
| Total Coils | 10 |
| Wire Diameter | 2.34 mm |
The compression spring Q-29CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the Q-29 compression spring design exhibits exceptional tensile strength and resilience.
The Q-29 design is manufactured with a free length of 1.38", with an outer diameter of 0.562", an inner diameter of 0.378", and a total of 10 coils, expertly designed to deliver consistent compression characteristics including a rate of 108 lbs/in.
The Q-29CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring Q-29 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
