Q-22CS - 0.47" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

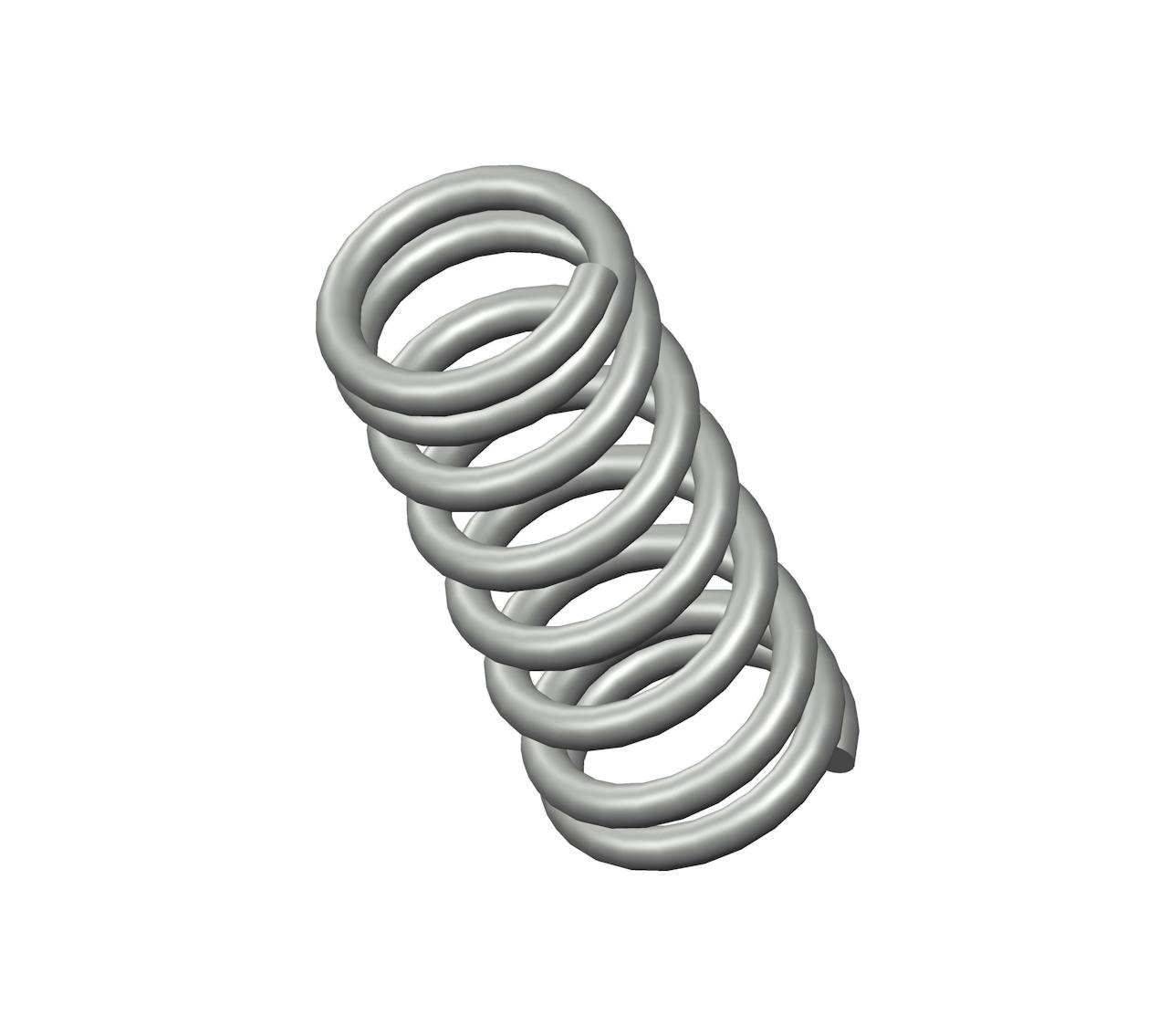

Compression spring manufactured from music wire with 8 coils and closed ends. This spring features an O.D. of 0.188", and an I.D. of 0.136".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name Q-22
Ends Closed
Finish Zinc
Free Length 0.47 in
Inside Diameter 0.136 in
Material Music Wire
Outside Diameter 0.188 in
Part Type Standard
Rate 26 lbs/in
SKU Q-22CS
Solid Length 0.23 in
Suggested Max Deflection 0.19 in
Suggested Max Load 5.1 lbf
Total Coils 8
Wire Diameter 0.026 in
The compression spring Q-22CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the Q-22 compression spring design exhibits exceptional tensile strength and resilience.

The Q-22 design is manufactured with a free length of 0.47", with an outer diameter of 0.188", an inner diameter of 0.136", and a total of 8 coils, expertly designed to deliver consistent compression characteristics including a rate of 26 lbs/in.

The Q-22CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring Q-22 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
