PP-88CS - 0.97" Spring Steel Compression Spring

Inventory:
Estimated Lead Time

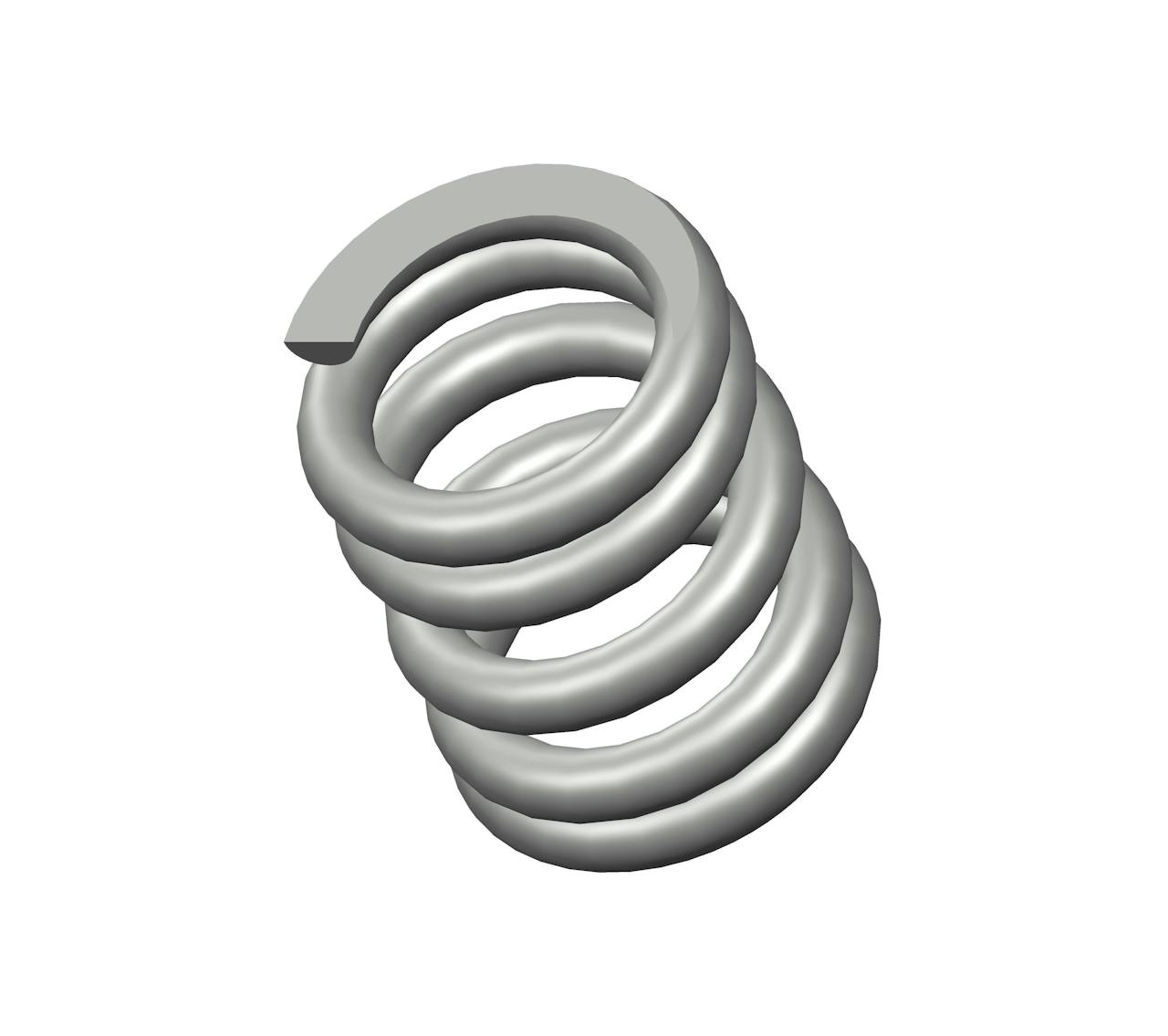

Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.796", and an I.D. of 0.536".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name PP-88
Ends Closed & Ground
Finish None
Free Length 0.97 in
Inside Diameter 0.536 in
Material Spring Steel
Outside Diameter 0.796 in
Part Type Standard
Rate 463 lbs/in
SKU PP-88CS
Solid Length 0.65 in
Suggested Max Deflection 0.18 in
Suggested Max Load 82 lbf
Total Coils 5
Wire Diameter 0.13 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name PP-88
Ends Closed & Ground
Finish None
Free Length 24.64 mm
Inside Diameter 13.61 mm
Material Spring Steel
Outside Diameter 20.22 mm
Part Type Standard
Rate 81.07 N/mm
SKU PP-88CS
Solid Length 16.51 mm
Suggested Max Deflection 4.57 mm
Suggested Max Load 364.74 N
Total Coils 5
Wire Diameter 3.3 mm
The compression spring PP-88CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the PP-88 compression spring design exhibits exceptional tensile strength and resilience.

The PP-88 design is manufactured with a free length of 0.97", with an outer diameter of 0.796", an inner diameter of 0.536", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 463 lbs/in.

The PP-88CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring PP-88 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
