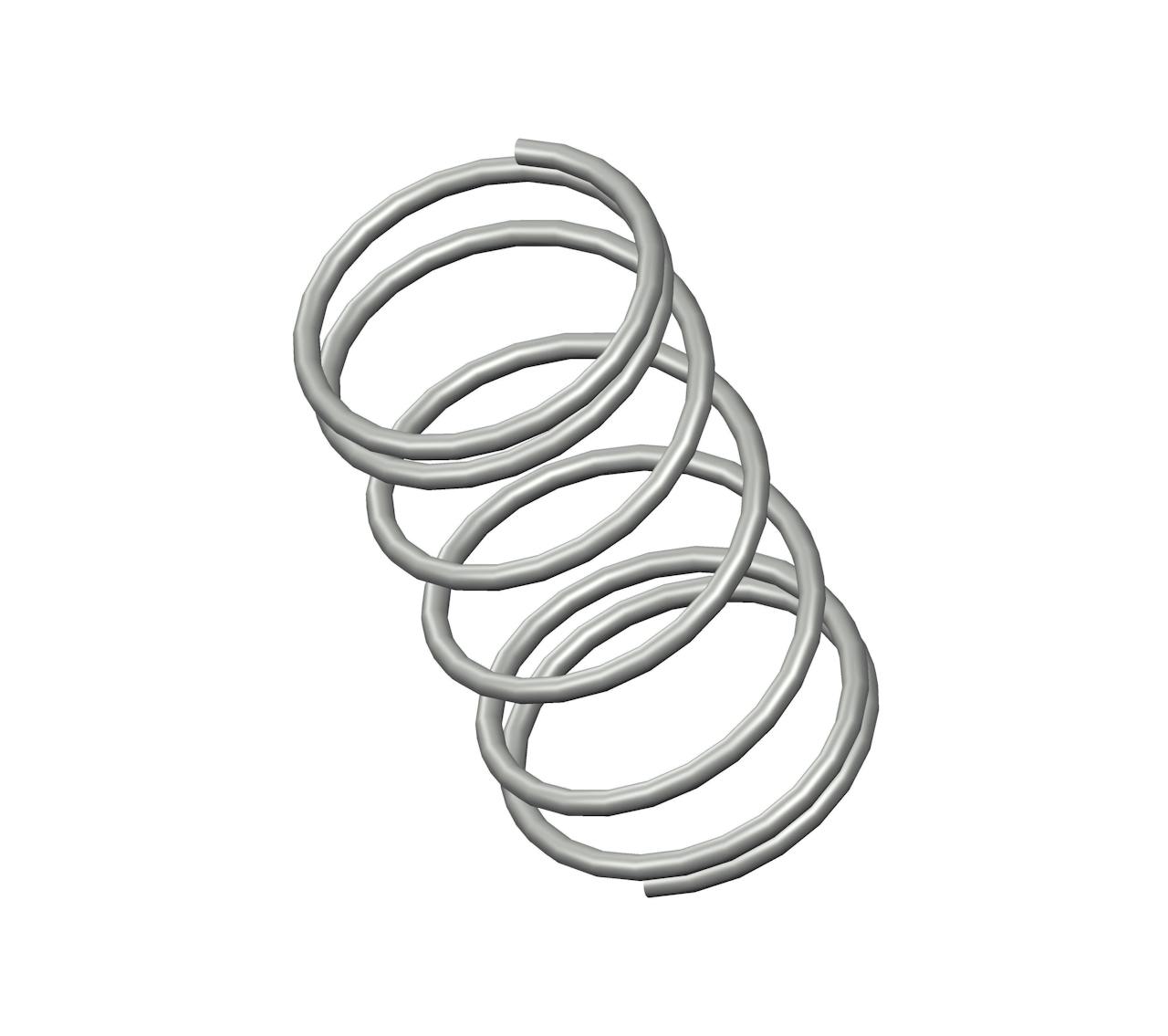

PP-80CS - 0.91" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 6.5 coils and closed ends. This spring features an O.D. of 0.484", and an I.D. of 0.418".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name PP-80
Ends Closed
Finish None
Free Length 0.91 in
Inside Diameter 0.418 in
Material Spring Steel
Outside Diameter 0.484 in
Part Type Standard
Rate 4.1 lbs/in
SKU PP-80CS
Solid Length 0.25 in
Suggested Max Deflection 0.66 in
Suggested Max Load 2.7 lbf
Total Coils 6.5
Wire Diameter 0.033 in
The compression spring PP-80CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the PP-80 compression spring design exhibits exceptional tensile strength and resilience.

The PP-80 design is manufactured with a free length of 0.91", with an outer diameter of 0.484", an inner diameter of 0.418", and a total of 6.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 4.1 lbs/in.

The PP-80CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring PP-80 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
