PP-71CS - 0.5" Music Wire Compression Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

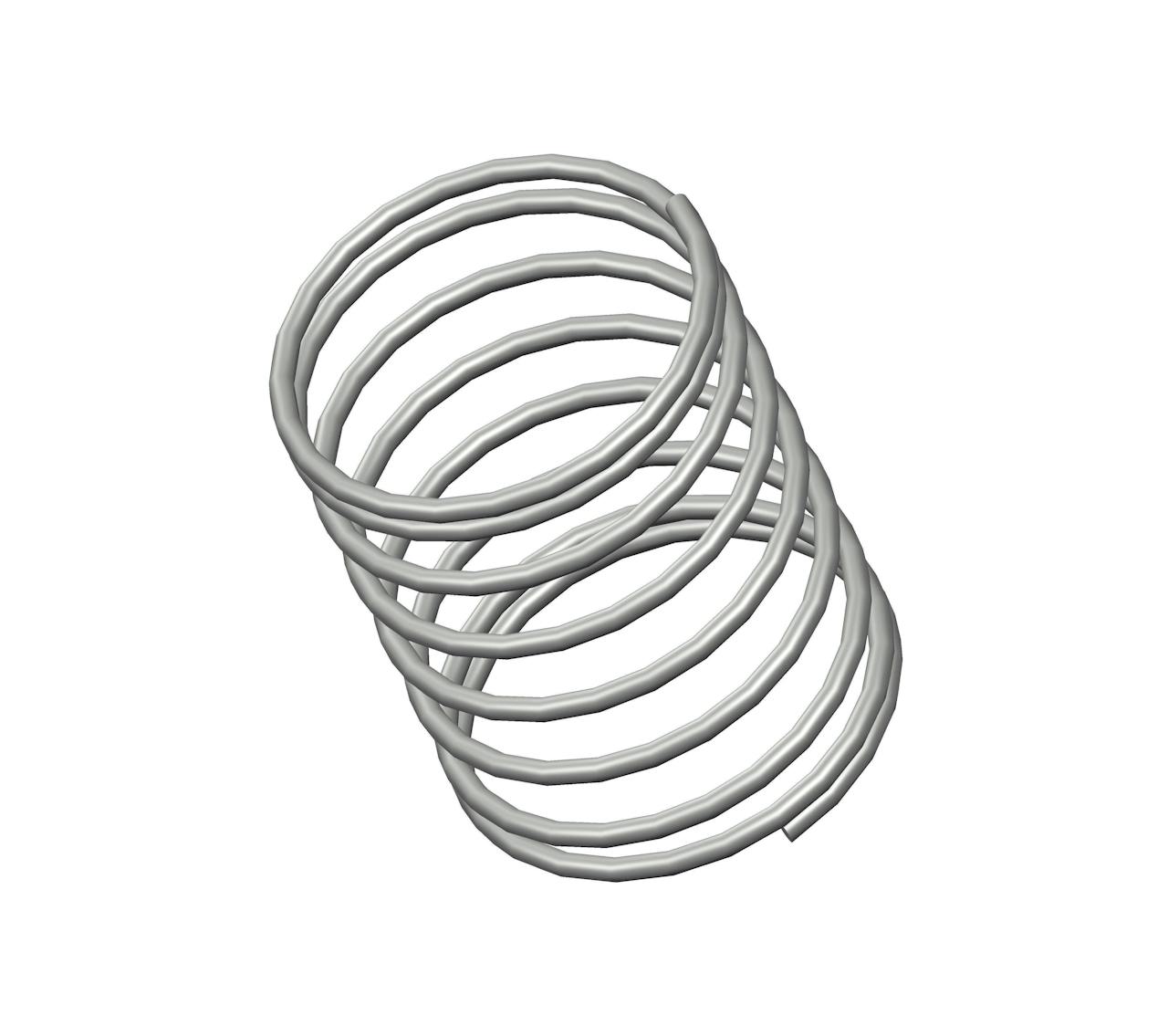

Compression spring manufactured from music wire with 8.25 coils and closed ends. This spring features an O.D. of 0.375", and an I.D. of 0.335".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | PP-71 |
| Ends | Closed |
| Finish | Black Oxide |
| Free Length | 0.5 in |
| Inside Diameter | 0.335 in |
| Material | Music Wire |
| Outside Diameter | 0.375 in |
| Part Type | Standard |
| Rate | 0.82 lbs/in |
| SKU | PP-71CS |
| Solid Length | 0.19 in |
| Suggested Max Deflection | 0.32 in |
| Suggested Max Load | 0.26 lbf |
| Total Coils | 8.25 |
| Wire Diameter | 0.02 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | PP-71 |
| Ends | Closed |
| Finish | Black Oxide |
| Free Length | 12.7 mm |
| Inside Diameter | 8.51 mm |
| Material | Music Wire |
| Outside Diameter | 9.53 mm |
| Part Type | Standard |
| Rate | 0.14 N/mm |
| SKU | PP-71CS |
| Solid Length | 4.83 mm |
| Suggested Max Deflection | 8.13 mm |
| Suggested Max Load | 1.16 N |
| Total Coils | 8.25 |
| Wire Diameter | 0.51 mm |
The compression spring PP-71CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the PP-71 compression spring design exhibits exceptional tensile strength and resilience.
The PP-71 design is manufactured with a free length of 0.5", with an outer diameter of 0.375", an inner diameter of 0.335", and a total of 8.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.82 lbs/in.
The PP-71CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring PP-71 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The PP-71 design is manufactured with a free length of 0.5", with an outer diameter of 0.375", an inner diameter of 0.335", and a total of 8.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 0.82 lbs/in.
The PP-71CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring PP-71 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
