Century Spring

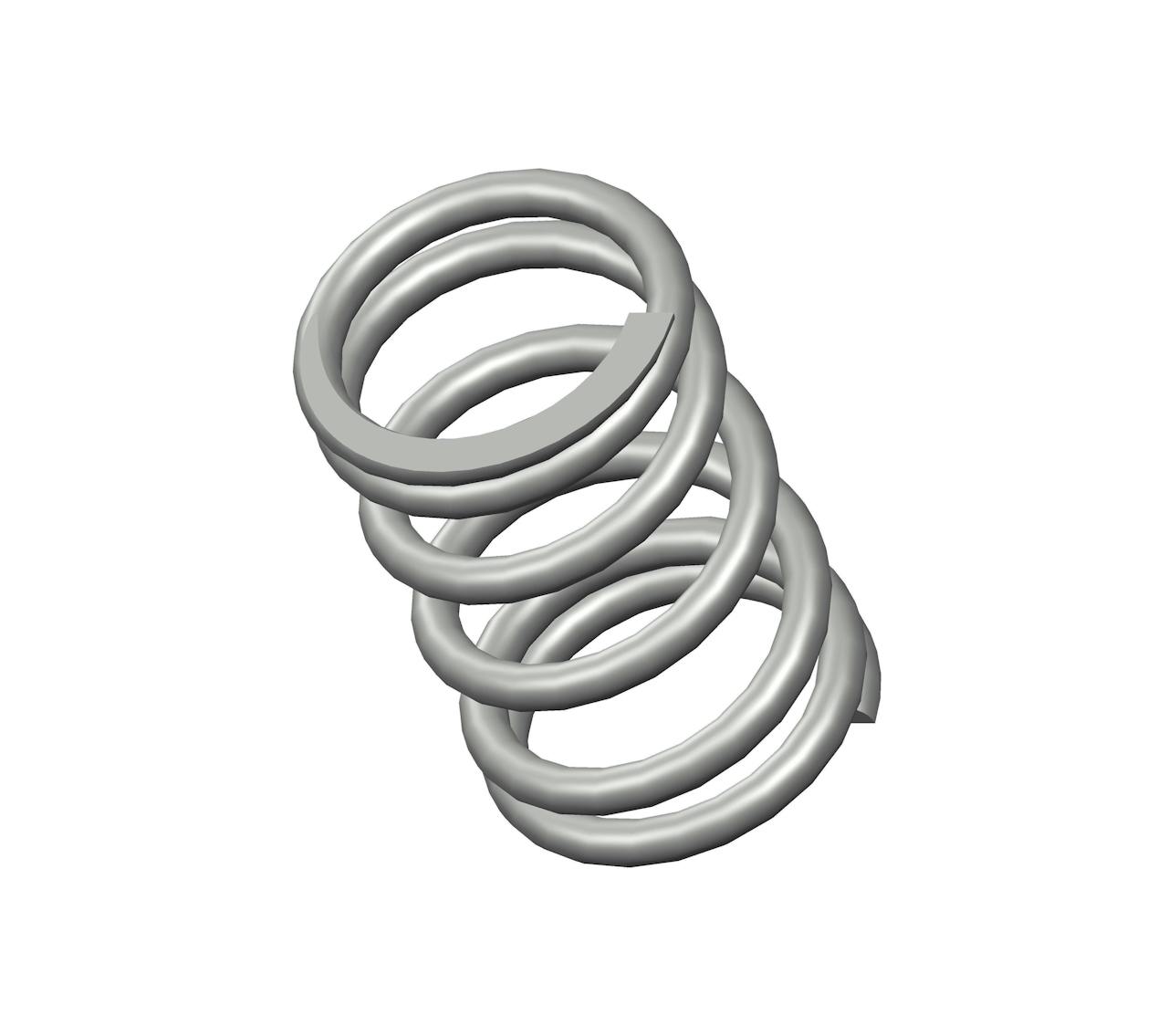

PP-62CS - 1.5" Spring Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from spring steel with 6 coils and closed & ground ends. This spring features an O.D. of 0.938", and an I.D. of 0.718".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name PP-62
Ends Closed & Ground
Finish Zinc
Free Length 1.5 in
Inside Diameter 0.718 in
Material Spring Steel
Outside Diameter 0.938 in
Part Type Standard
Rate 93 lbs/in
SKU PP-62CS
Solid Length 0.66 in
Suggested Max Deflection 0.48 in
Suggested Max Load 45 lbf
Total Coils 6
Wire Diameter 0.11 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name PP-62
Ends Closed & Ground
Finish Zinc
Free Length 38.1 mm
Inside Diameter 18.24 mm
Material Spring Steel
Outside Diameter 23.83 mm
Part Type Standard
Rate 16.28 N/mm
SKU PP-62CS
Solid Length 16.76 mm
Suggested Max Deflection 12.19 mm
Suggested Max Load 200.16 N
Total Coils 6
Wire Diameter 2.79 mm
The PP-62 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality spring steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The PP-62CS compression spring is designed with a free length of 1" total of 7 coils, and a rate of 2.8 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The PP-62 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
