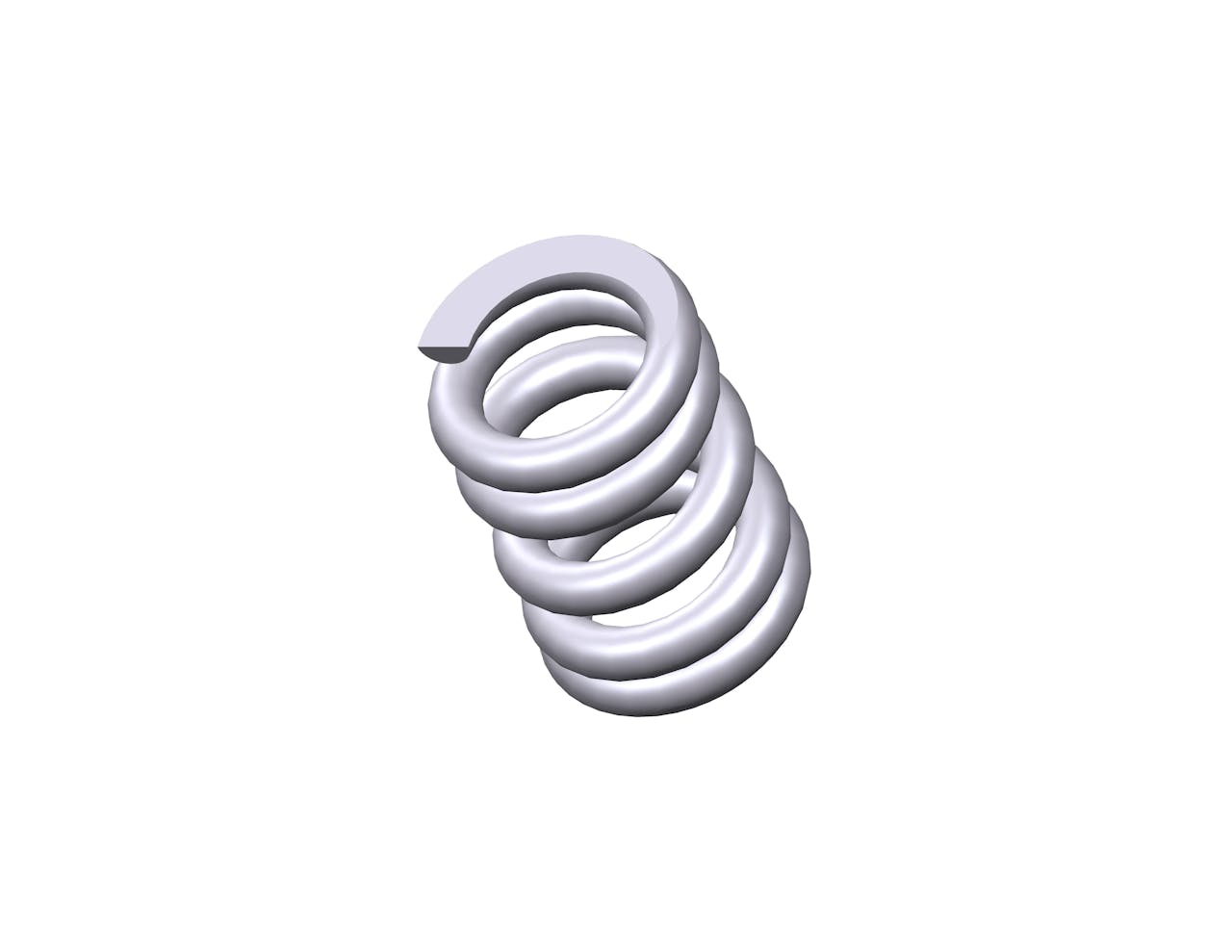

PP-46CS - 1.5" Spring Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from spring steel with 5 coils and closed & ground ends. This spring features an O.D. of 1.062", and an I.D. of 0.662".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | PP-46 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.5 in |
| Inside Diameter | 0.662 in |
| Material | Spring Steel |
| Outside Diameter | 1.062 in |
| Part Type | Standard |
| Rate | 1197 lbs/in |
| SKU | PP-46CS |
| Solid Length | 1 in |
| Suggested Max Deflection | 0.17 in |
| Suggested Max Load | 203 lbf |
| Total Coils | 5 |
| Wire Diameter | 0.2 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | PP-46 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 38.1 mm |
| Inside Diameter | 16.81 mm |
| Material | Spring Steel |
| Outside Diameter | 26.97 mm |
| Part Type | Standard |
| Rate | 209.59 N/mm |
| SKU | PP-46CS |
| Solid Length | 25.4 mm |
| Suggested Max Deflection | 4.32 mm |
| Suggested Max Load | 902.94 N |
| Total Coils | 5 |
| Wire Diameter | 5.08 mm |
The compression spring PP-46CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality spring steel, the PP-46 compression spring design exhibits exceptional tensile strength and resilience.
The PP-46 design is manufactured with a free length of 1.5", with an outer diameter of 1.062", an inner diameter of 0.662", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1197 lbs/in.
The PP-46CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring PP-46 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The PP-46 design is manufactured with a free length of 1.5", with an outer diameter of 1.062", an inner diameter of 0.662", and a total of 5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1197 lbs/in.
The PP-46CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring PP-46 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
