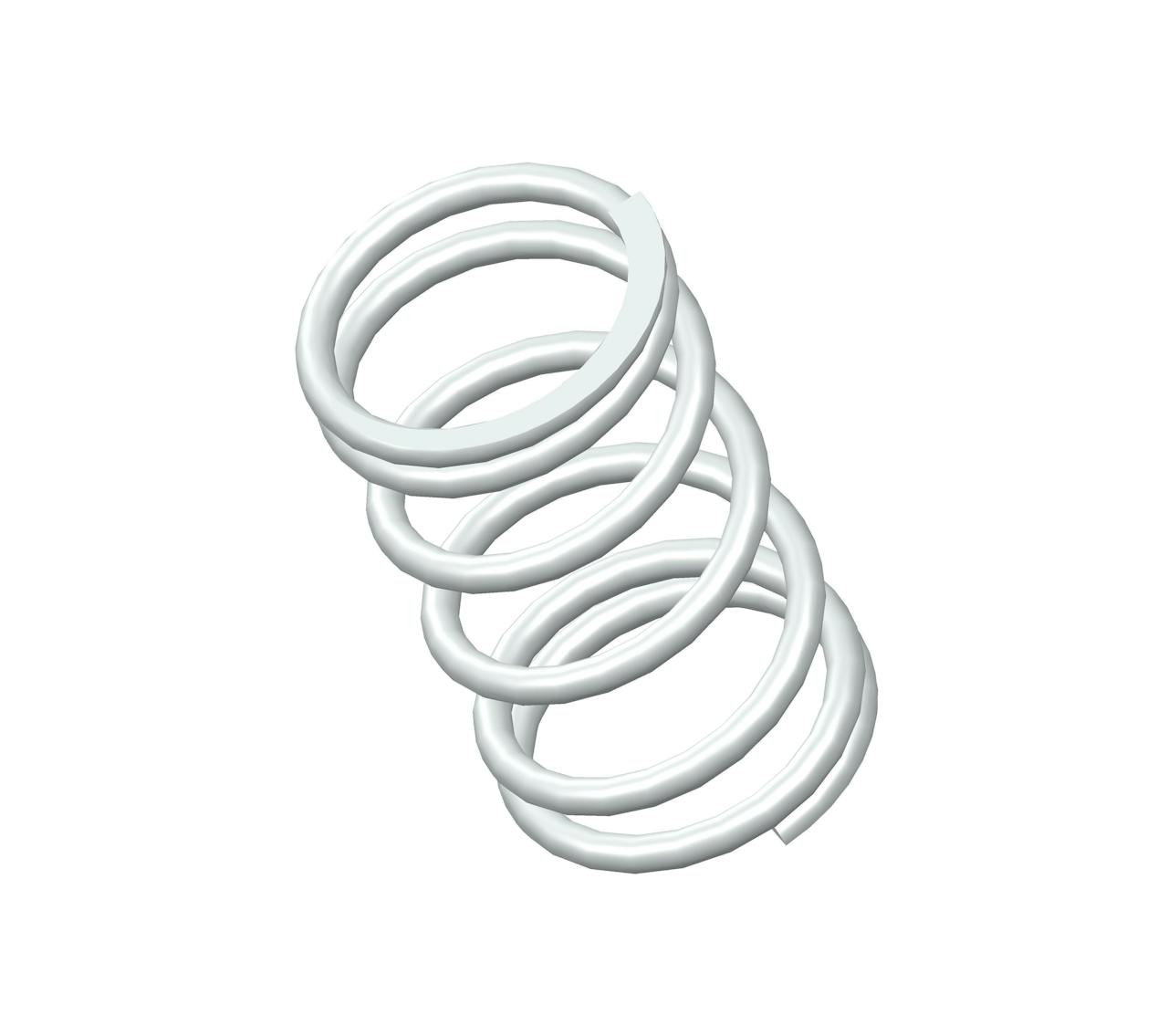

PP-3CS - 0.72" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 6.25 coils and closed & ground ends. This spring features an O.D. of 0.406", and an I.D. of 0.326".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | PP-3 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.72 in |
| Inside Diameter | 0.326 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.406 in |
| Part Type | Standard |
| Rate | 16 lbs/in |
| SKU | PP-3CS |
| Solid Length | 0.25 in |
| Suggested Max Deflection | 0.36 in |
| Suggested Max Load | 5.7 lbf |
| Total Coils | 6.25 |
| Wire Diameter | 0.04 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | PP-3 |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 18.29 mm |
| Inside Diameter | 8.28 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 10.31 mm |
| Part Type | Standard |
| Rate | 2.8 N/mm |
| SKU | PP-3CS |
| Solid Length | 6.35 mm |
| Suggested Max Deflection | 9.14 mm |
| Suggested Max Load | 25.35 N |
| Total Coils | 6.25 |
| Wire Diameter | 1.02 mm |
The compression spring PP-3CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the PP-3 compression spring design exhibits exceptional tensile strength and resilience.
The PP-3 design is manufactured with a free length of 0.72", with an outer diameter of 0.406", an inner diameter of 0.326", and a total of 6.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 16 lbs/in.
The PP-3CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring PP-3 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The PP-3 design is manufactured with a free length of 0.72", with an outer diameter of 0.406", an inner diameter of 0.326", and a total of 6.25 coils, expertly designed to deliver consistent compression characteristics including a rate of 16 lbs/in.
The PP-3CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring PP-3 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
